Century Spring

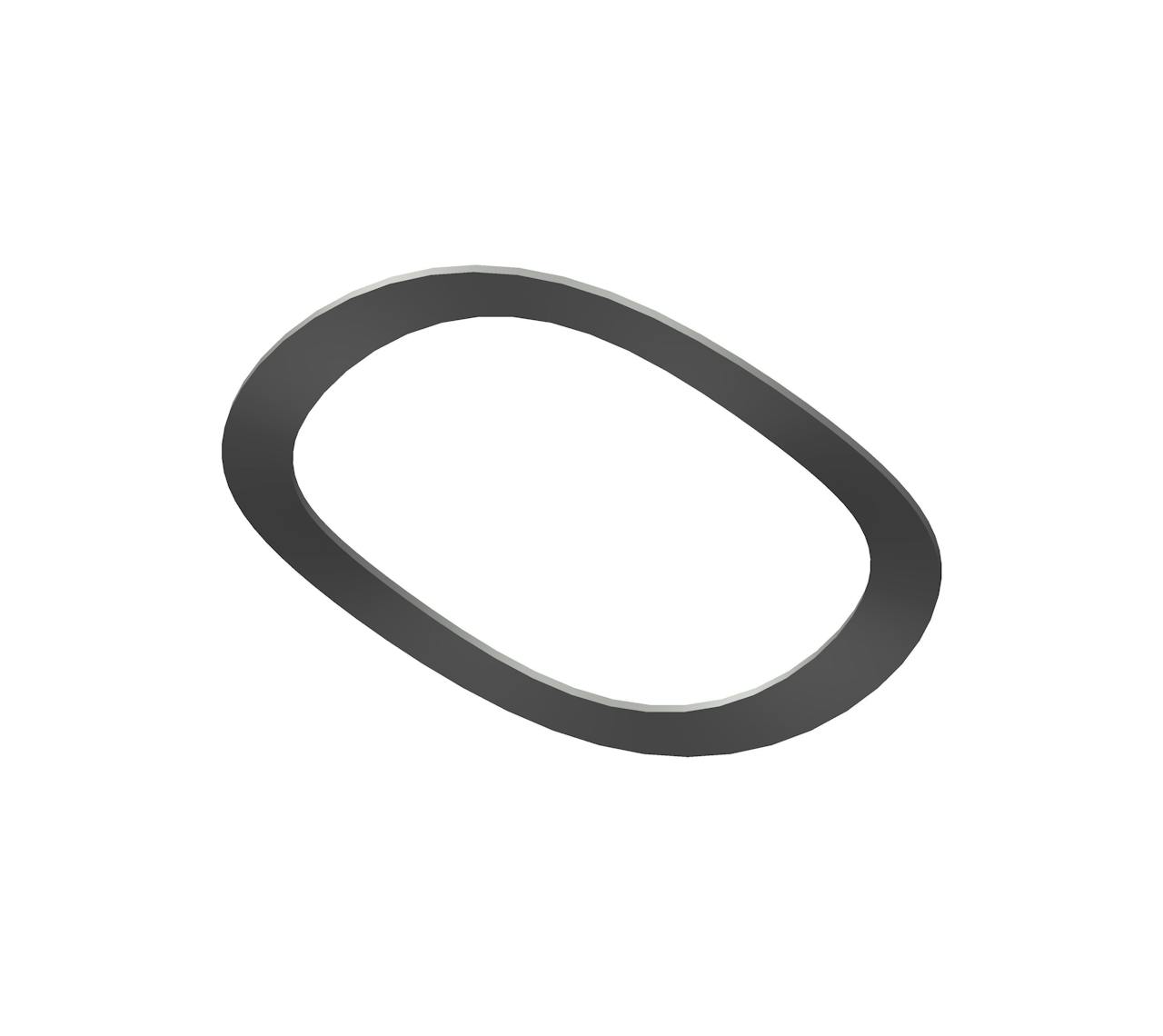

WAV-24932CS - 0.588 Inch ID 0.731 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.588 Inch and an outside diameter of 0.731 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 4 lb
Display Name WAV-24932
Finish None
Inside Diameter 0.588 in
Material Spring Steel
Maximum Deflection at 100% Height 0.03 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.731 in
Outside Height 0.047 in
SKU WAV-24932CS
T 0.009 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 1.81 kg
Display Name WAV-24932
Finish None
Inside Diameter 14.94 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.76 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 18.57 mm
Outside Height 1.19 mm
SKU WAV-24932CS
T 0.23 mm
