Century Spring

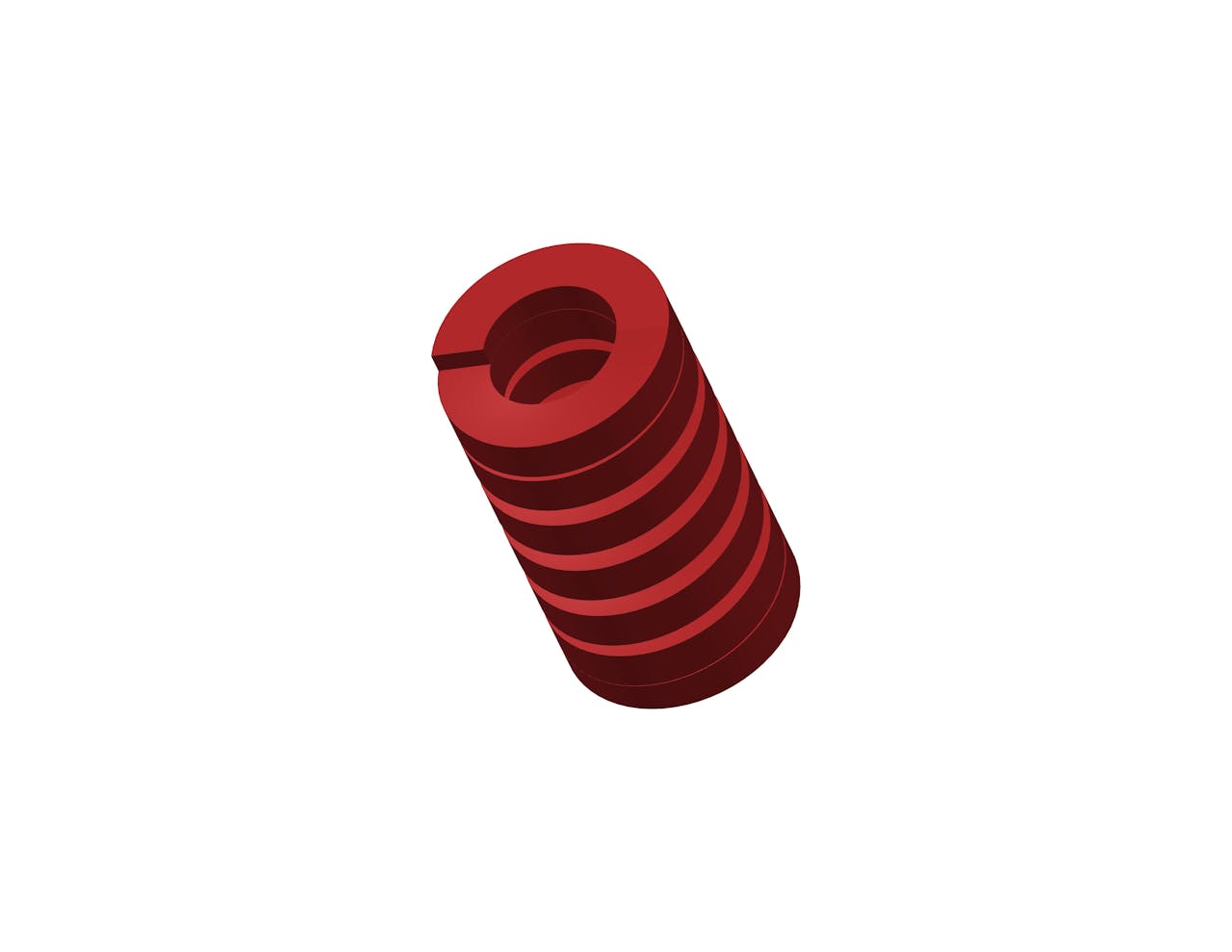

D-9120526CS - 1.25 Inch Chrome Silicon Die Spring

Inventory Status
Estimated Lead Time

1.25 Inch Chrome Silicon die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 260 lb
Brand Century Spring
Deflection For Average Life 0.25 in
Deflection For Long Life 0.31 in
Display Name D-9120526
Duty Load Heavy
Finish None
Finish Color Red
Free Length 1.25 in
Hole Size 0.75 in
Long Life Deflection Force 324 lb
Material Chrome Silicon
Maximum Deflection 0.38 in
Maximum Deflection Force 389 lb
Measurement Units Standard
Rate 1030 lbs/in
Rod Size 0.375 in
SKU D-9120526CS
Wire Diameter 0.158 in x 0.138 in
Specs (in metric)
Label Value
Average Life Deflection Force 117.91 kg
Brand Century Spring
Deflection For Average Life 6.35 mm
Deflection For Long Life 7.87 mm
Display Name D-9120526
Duty Load Heavy
Finish None
Finish Color Red
Free Length 31.75 mm
Hole Size 19.05 mm
Long Life Deflection Force 146.94 kg
Material Chrome Silicon
Maximum Deflection 9.65 mm
Maximum Deflection Force 176.42 kg
Measurement Units Standard
Rate 180.35 N/mm
Rod Size 9.53 mm
SKU D-9120526CS
Wire Diameter 4.01 mm x 3.51 mm
