Century Spring

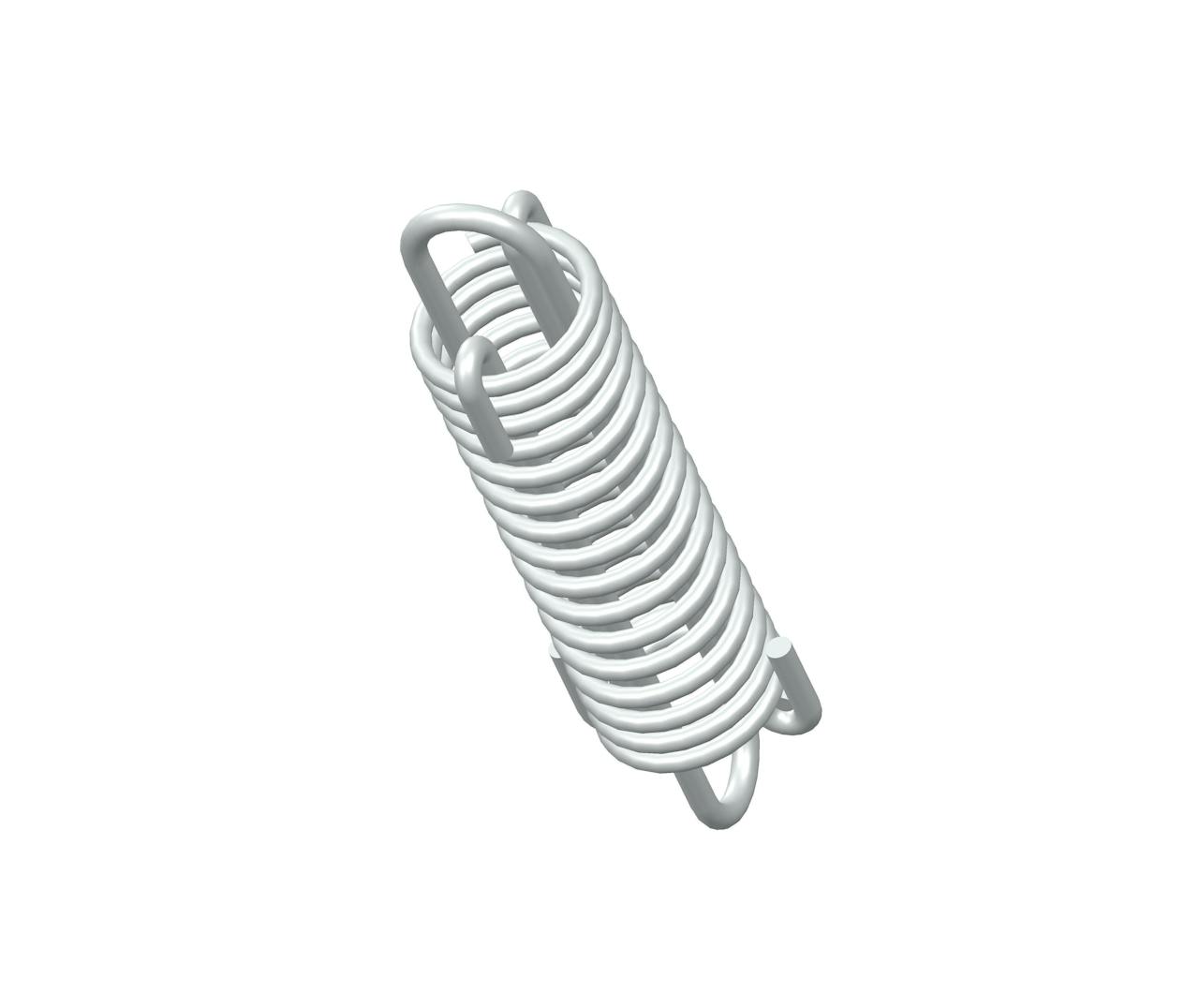

DBS7054CS - 120 Pound Force Max Load Stainless Steel Drawbar Spring

Inventory Status
Estimated Lead Time

Drawbar spring manufactured from Stainless Steel and designed for use with a maximum load of 120 Pound Force.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name DBS7054
Drawbar Wire Diameter 0.12 in
Finish None
Free Length 5 in
Inside Diameter 0.813 in
Material Stainless Steel
Max Load 120 lbf
Maximum Deflection 1.6 in
Measurement Units Standard
Outside Diameter 1.375 in
Rate 74 lbs/in
SKU DBS7054CS
Total Coils 13
Wire Diameter 0.156 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name DBS7054
Drawbar Wire Diameter 3.05 mm
Finish None
Free Length 127 mm
Inside Diameter 20.65 mm
Material Stainless Steel
Max Load 533.76 N
Maximum Deflection 40.64 mm
Measurement Units Standard
Outside Diameter 34.93 mm
Rate 12.96 N-mm
SKU DBS7054CS
Total Coils 13
Wire Diameter 3.96 mm
