Century Spring

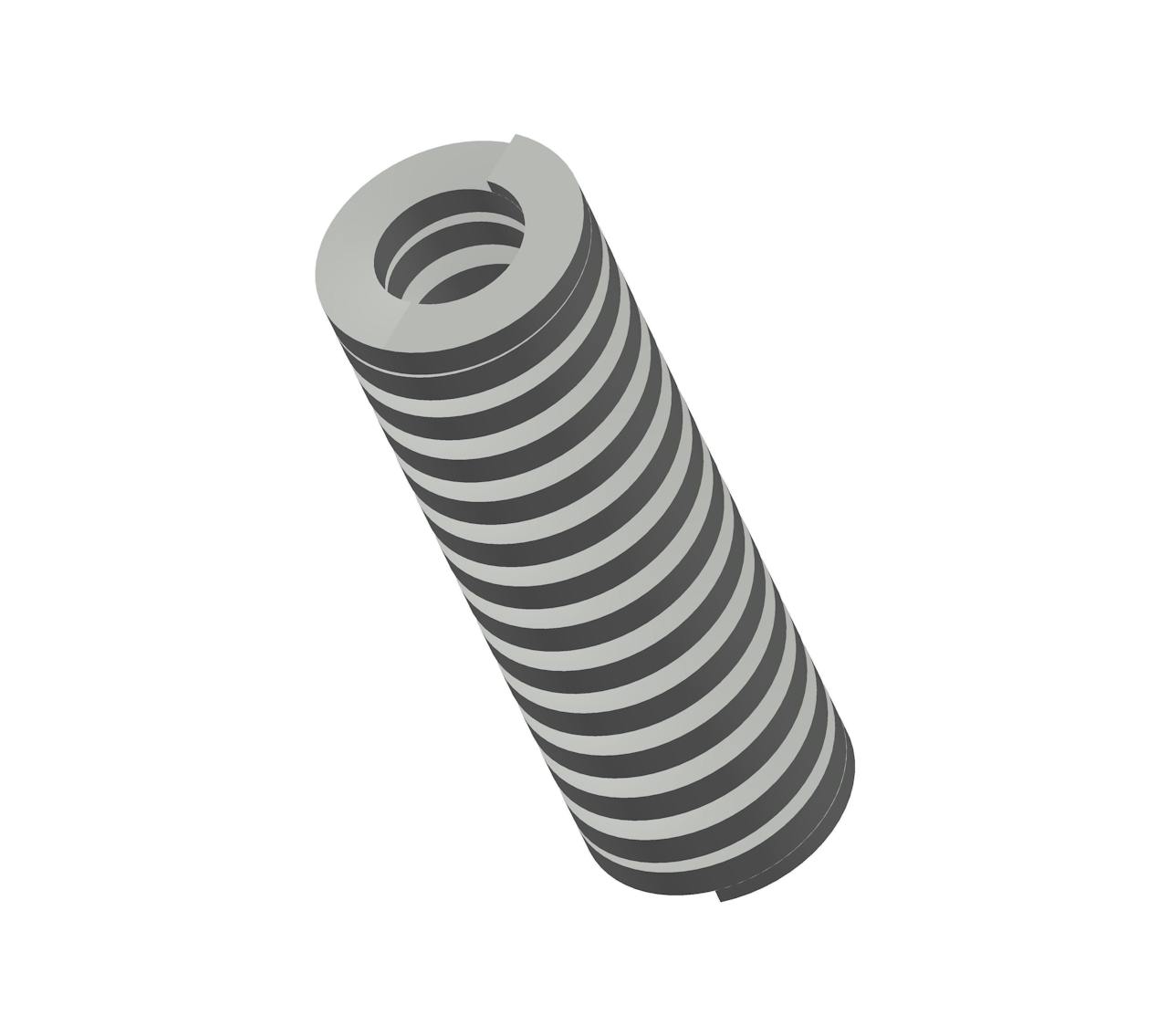

D-94CS - 4.5 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

4.5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 531 lb
Brand Century Spring
Deflection For Average Life 1.13 in
Display Name D-94
Duty Load Medium
Finish None
Free Length 4.5 in
Hole Size 1.5 in
Material Oil Tempered
Maximum Deflection 1.8 in
Maximum Deflection Force 850 lb
Measurement Units Standard
Rate 472 lbs/in
Rod Size 0.75 in
SKU D-94CS
Wire Diameter 0.312 in x 0.188 in
Specs (in metric)
Label Value
Average Life Deflection Force 240.82 kg
Brand Century Spring
Deflection For Average Life 28.7 mm
Display Name D-94
Duty Load Medium
Finish None
Free Length 114.3 mm
Hole Size 38.1 mm
Material Oil Tempered
Maximum Deflection 45.72 mm
Maximum Deflection Force 385.49 kg
Measurement Units Standard
Rate 82.65 N/mm
Rod Size 19.05 mm
SKU D-94CS
Wire Diameter 7.92 mm x 4.78 mm
