Century Spring

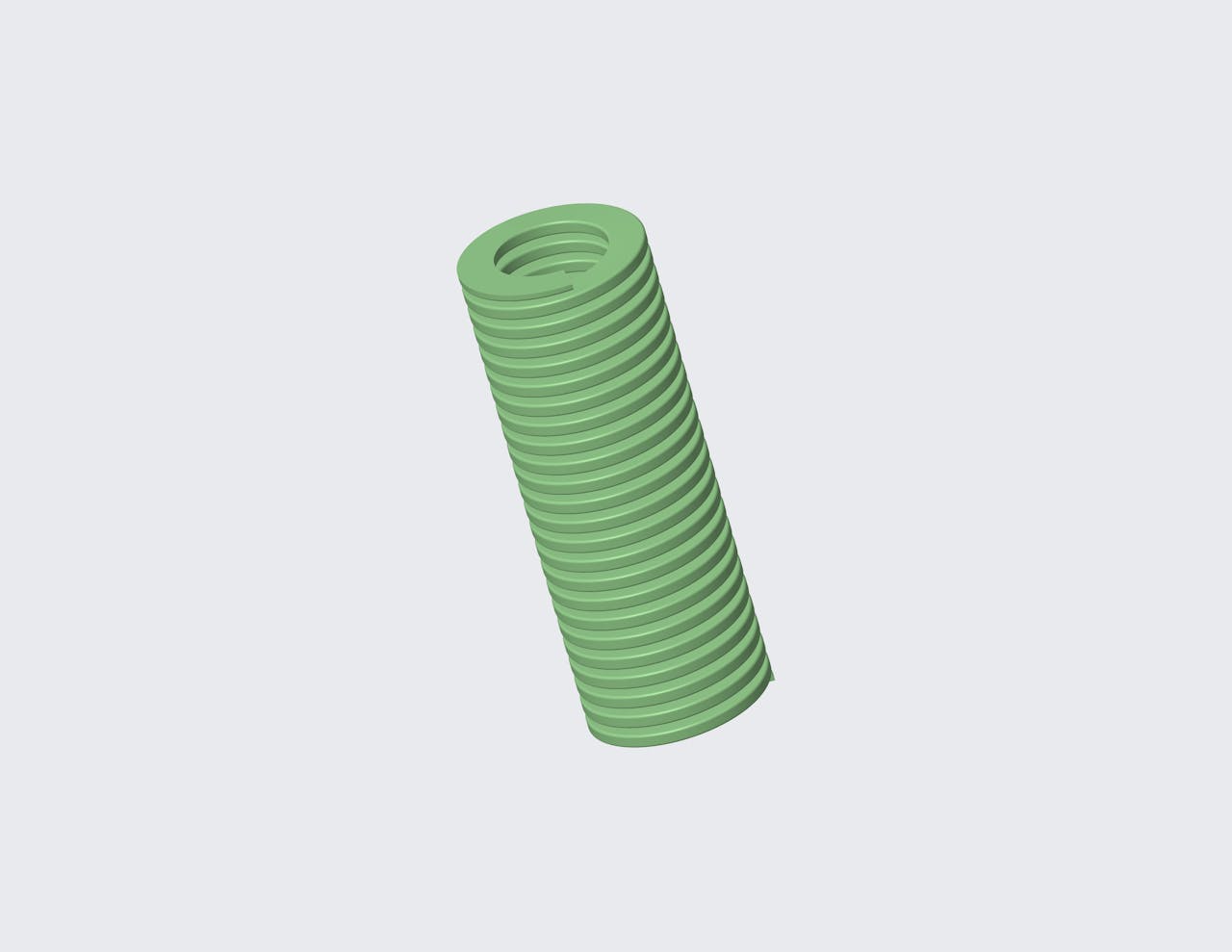

D-304932CS - 203 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 203 Millimeter long and has a 96.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2 in
Deflection 2 2.3976 in
Deflection 3 3.1969 in
Display Name D-304932
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 7.9921 in
Hole Size 2.4803 in
Load 1 1105.2158 lbf
Load 2 1326.214 lbf
Load 3 1768.4353 lbf
Load At Max Deflection 1946.9424 lbf
Material Chrome Silicon
Max Deflection 3.5197 in
Measurement Units Metric
Rate 553.3981 lbs/in
Rod Size 1.4961 in
SKU D-304932CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 50.8 mm
Deflection 2 60.9 mm
Deflection 3 81.2 mm
Display Name D-304932
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 203 mm
Hole Size 63 mm
Load 1 4916 N
Load 2 5899 N
Load 3 7866 N
Load At Max Deflection 8660 N
Material Chrome Silicon
Max Deflection 89.4 mm
Measurement Units Metric
Rate 96.9 N/mm
Rod Size 38 mm
SKU D-304932CS
