50677SCS - 2.559" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

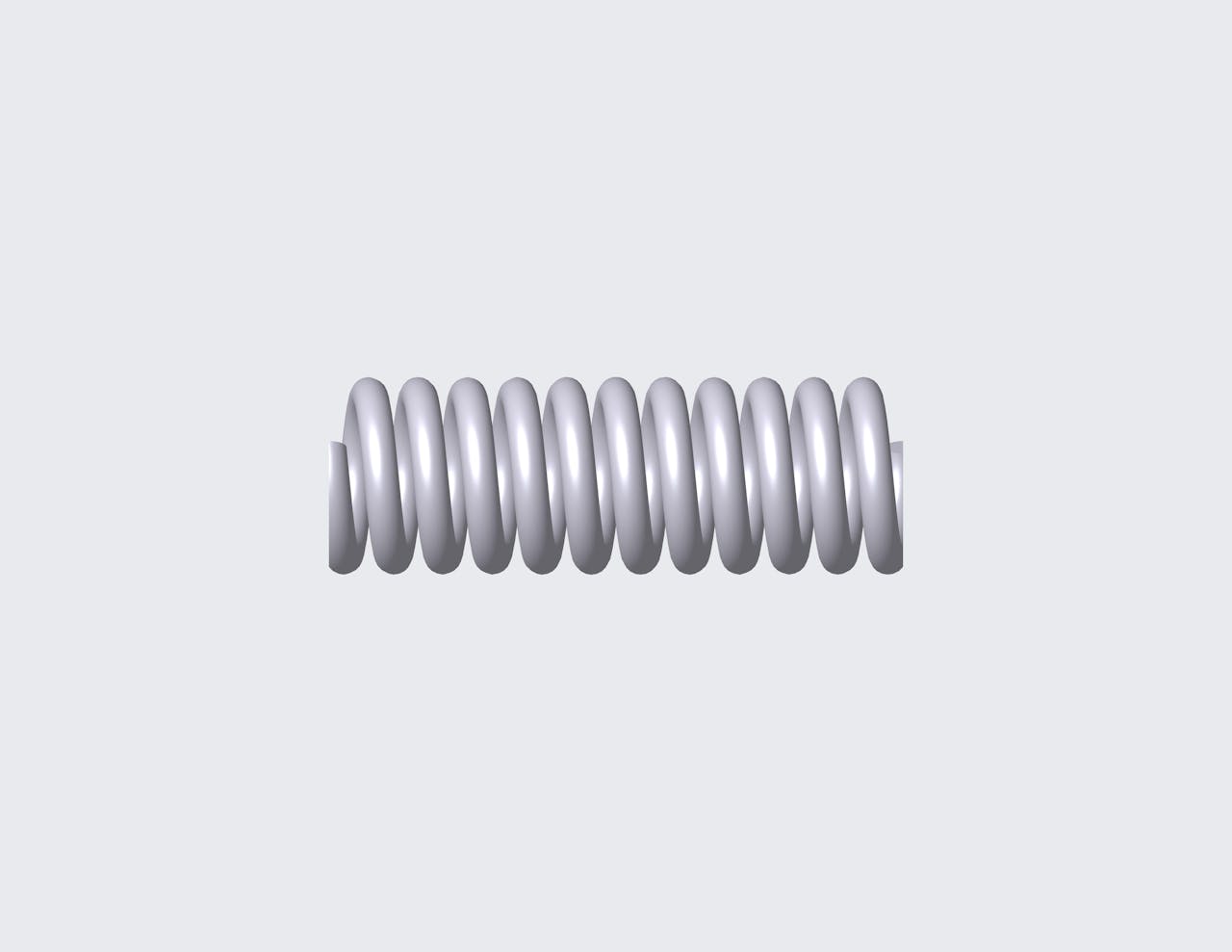

Compression spring manufactured from 316 stainless steel with 10.9 coils and closed & ground ends. This spring features an O.D. of 0.882", and an I.D. of 0.567".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50677S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.559 in |
| Inside Diameter | 0.567 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.882 in |
| Rate | 227.235 lbs/in |
| SKU | 50677SCS |
| Solid Length | 1.717 in |
| Suggested Max Deflection | 0.437 in |
| Suggested Max Load | 99.303 lbf |
| Total Coils | 10.9 |
| Wire Diameter | 0.157 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50677S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 65 mm |
| Inside Diameter | 14.4 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 22.4 mm |
| Rate | 39.79 N/mm |
| SKU | 50677SCS |
| Solid Length | 43.61 mm |
| Suggested Max Deflection | 11.1 mm |
| Suggested Max Load | 441.7 N |
| Total Coils | 10.9 |
| Wire Diameter | 3.99 mm |
The compression spring 50677SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50677S compression spring design exhibits exceptional tensile strength and resilience.
The 50677S design is manufactured with a free length of 2.559", with an outer diameter of 0.882", an inner diameter of 0.567", and a total of 10.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 227.235 lbs/in.
The 50677SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50677S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 50677S design is manufactured with a free length of 2.559", with an outer diameter of 0.882", an inner diameter of 0.567", and a total of 10.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 227.235 lbs/in.
The 50677SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50677S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
