Century Spring

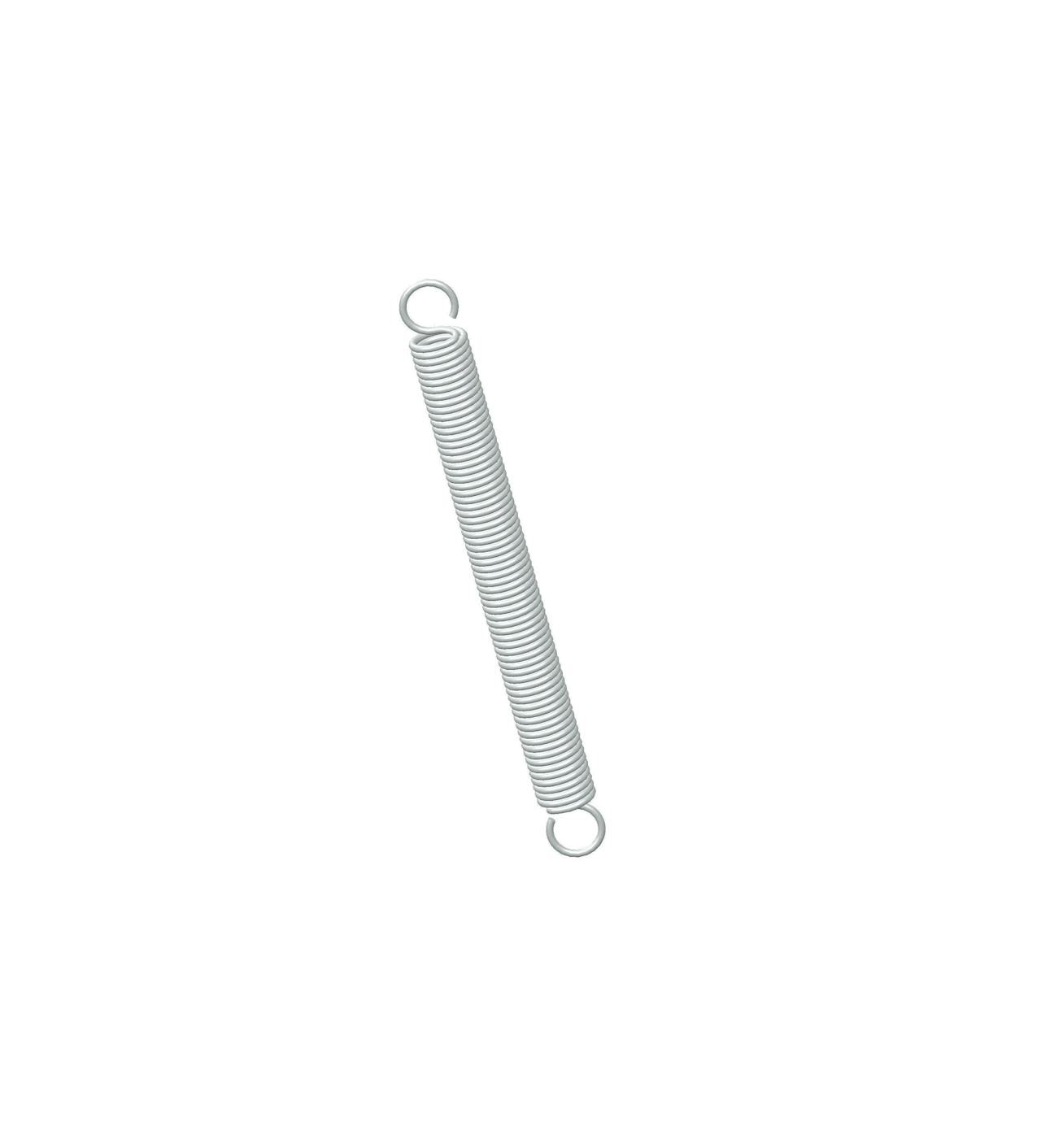

ZZ3-18CS - 0.66 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.063 Inch and an initial tension of 0.05 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ3-18
Ends Full Loop
Finish None
Initial Tension 0.05 lb
Length 0.66 in
Material 302/304 Stainless Steel
Outside Diameter 0.063 in
Part Type Standard
Rate 0.46 lbs/in
SKU ZZ3-18CS
Sugg Max Deflection 0.58 in
Sugg Max Load 0.32 lbf
Wind Direction Left
Wire Diameter 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ3-18
Ends Full Loop
Finish None
Initial Tension 0.02 kg
Length 16.76 mm
Material 302/304 Stainless Steel
Outside Diameter 1.6 mm
Part Type Standard
Rate 0.08 N/mm
SKU ZZ3-18CS
Sugg Max Deflection 14.73 mm
Sugg Max Load 1.42 N
Wind Direction Left
Wire Diameter 0.2 mm
