Century Spring

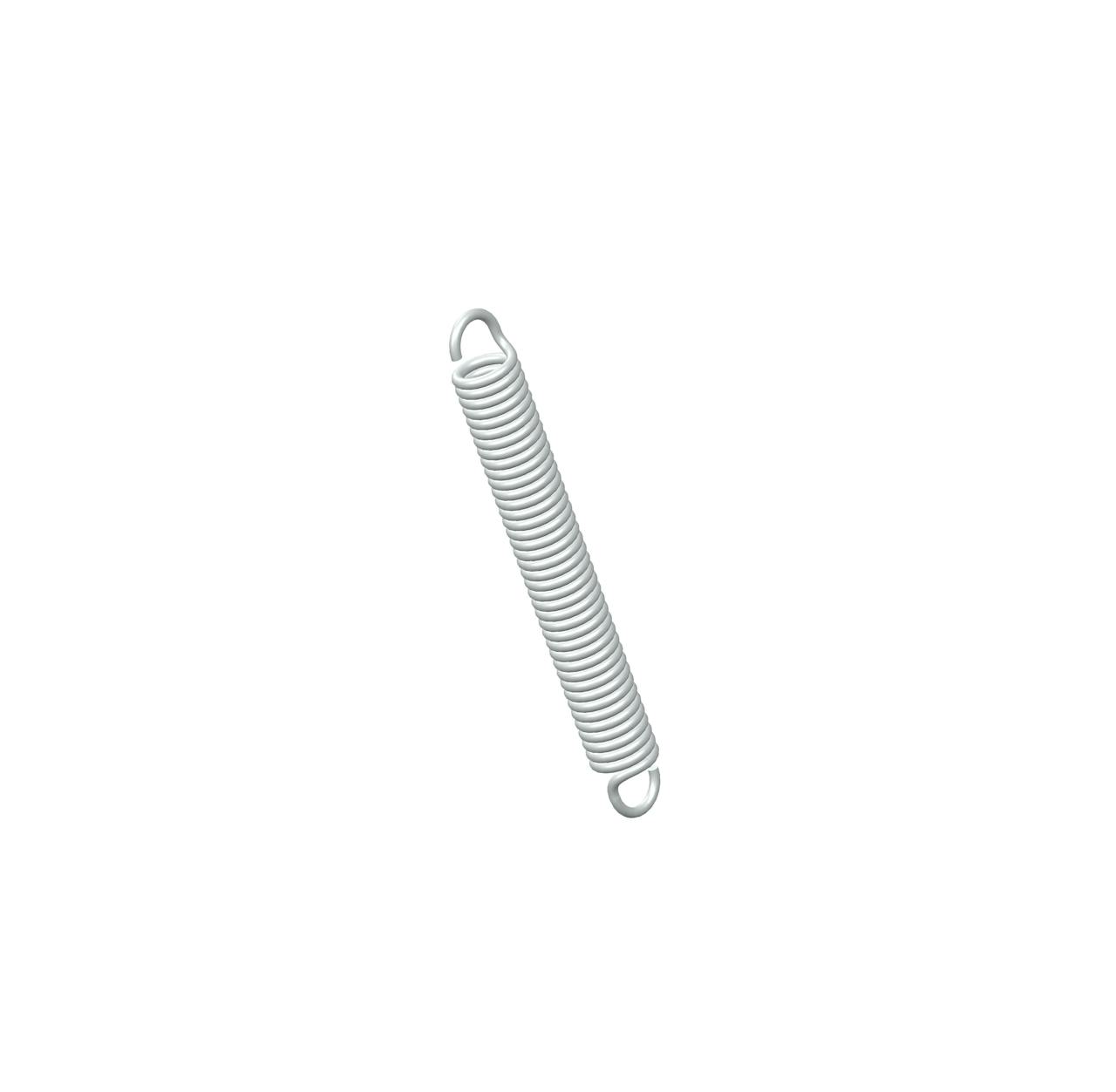

ZZ3-15CS - 1.56 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.188 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ3-15
Ends Machine Hook
Finish None
Initial Tension 1 lb
Length 1.56 in
Material 302/304 Stainless Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 7.5 lbs/in
SKU ZZ3-15CS
Sugg Max Deflection 0.6 in
Sugg Max Load 5.8 lbf
Wind Direction Left
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ3-15
Ends Machine Hook
Finish None
Initial Tension 0.45 kg
Length 39.62 mm
Material 302/304 Stainless Steel
Outside Diameter 4.78 mm
Part Type Standard
Rate 1.31 N/mm
SKU ZZ3-15CS
Sugg Max Deflection 15.24 mm
Sugg Max Load 25.8 N
Wind Direction Left
Wire Diameter 0.79 mm
