Century Spring

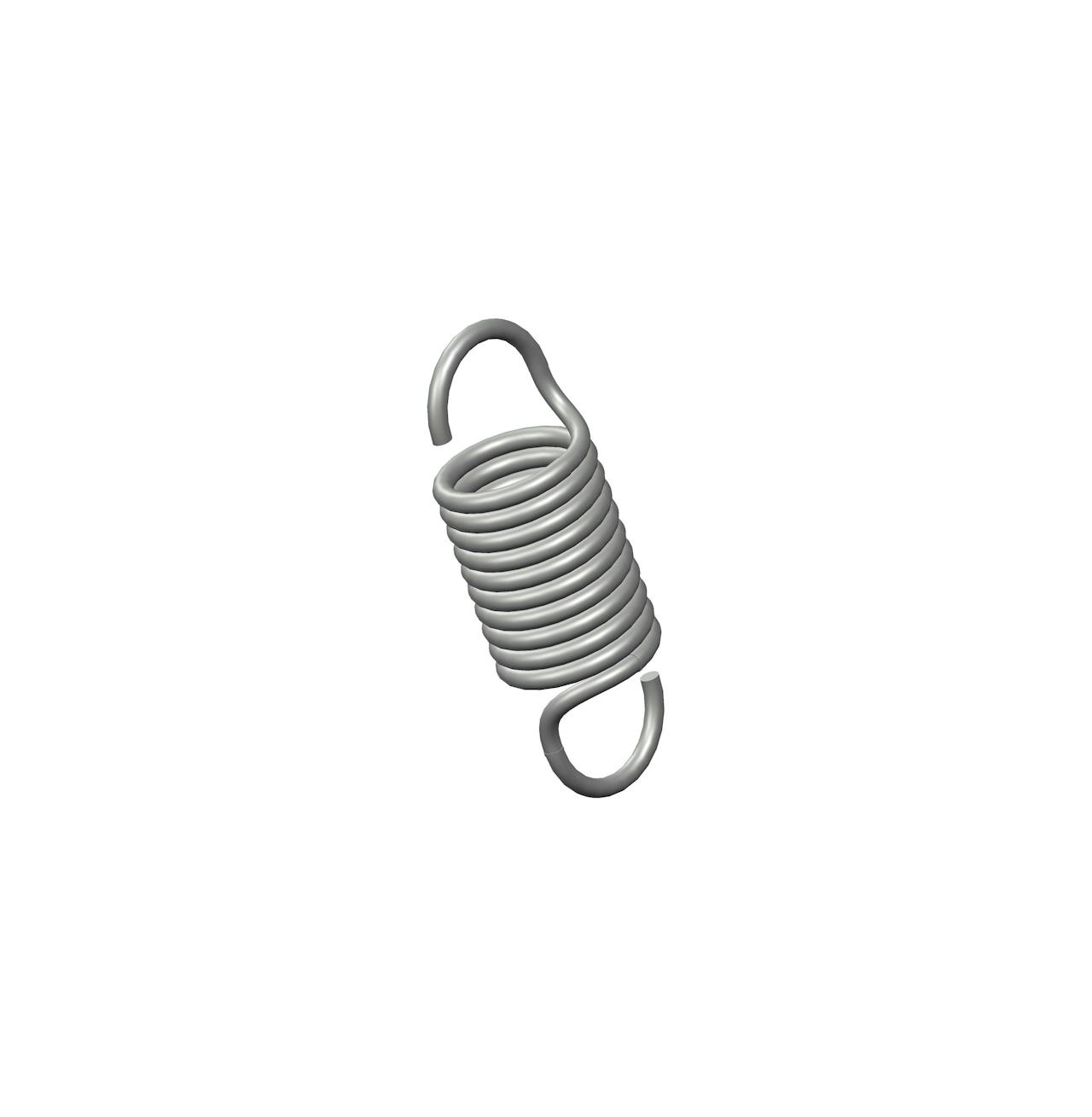

ZZ2-65CS - 1.06 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.328 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ2-65
Ends Machine Hook
Finish Zinc
Initial Tension 1 lb
Length 1.06 in
Material Spring Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 12 lbs/in
SKU ZZ2-65CS
Sugg Max Deflection 0.52 in
Sugg Max Load 7.6 lbf
Wind Direction Left
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ2-65
Ends Machine Hook
Finish Zinc
Initial Tension 0.45 kg
Length 26.92 mm
Material Spring Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 2.1 N/mm
SKU ZZ2-65CS
Sugg Max Deflection 13.21 mm
Sugg Max Load 33.8 N
Wind Direction Left
Wire Diameter 1.04 mm
