Century Spring

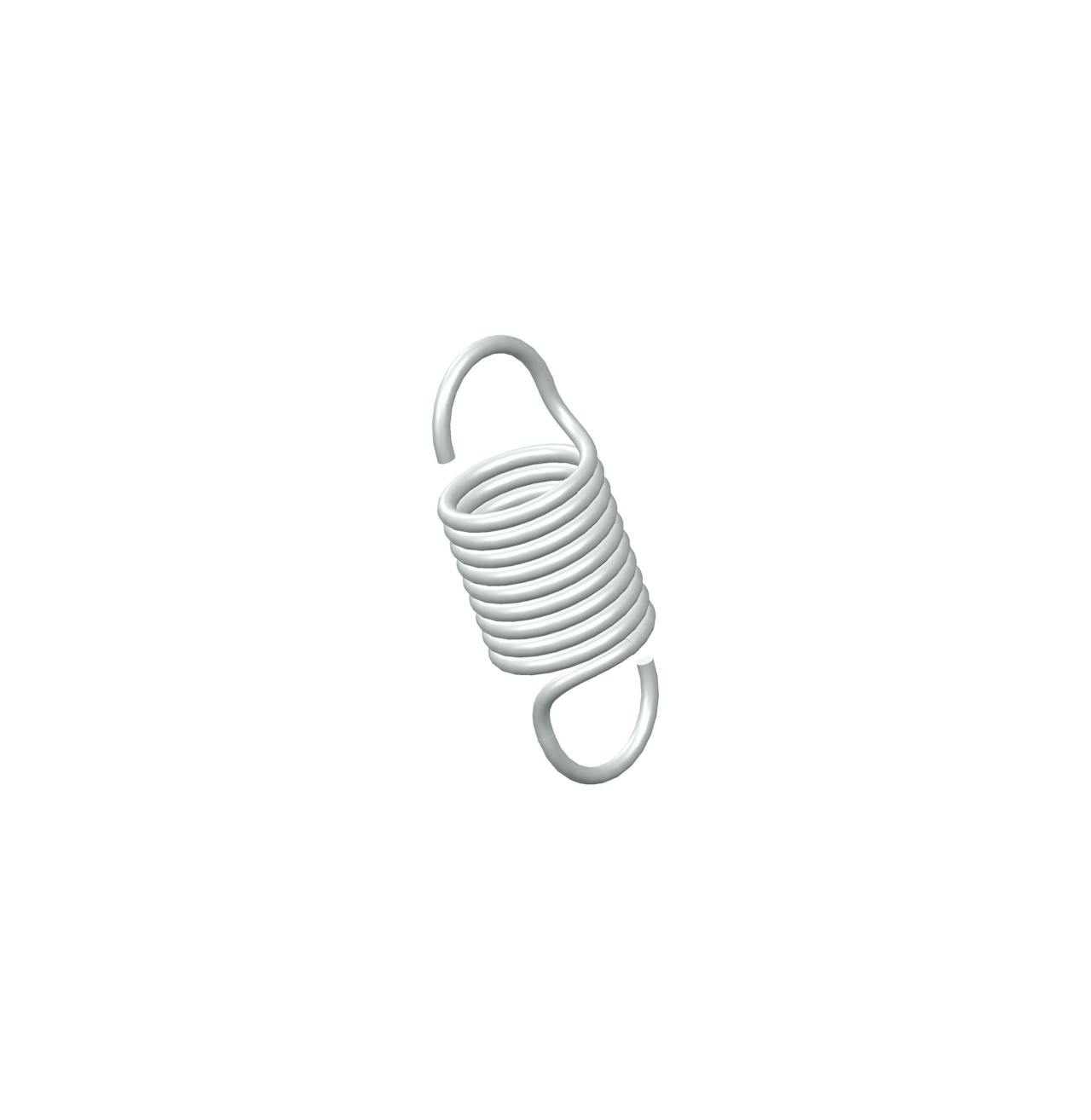

ZZ2-56CS - 0.84 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.281 Inch and an initial tension of 0.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ2-56
Ends Machine Hook
Finish None
Initial Tension 0.6 lb
Length 0.84 in
Material 302/304 Stainless Steel
Outside Diameter 0.281 in
Part Type Standard
Rate 5.8 lbs/in
SKU ZZ2-56CS
Sugg Max Deflection 0.54 in
Sugg Max Load 3.7 lbf
Wind Direction Left
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ2-56
Ends Machine Hook
Finish None
Initial Tension 0.27 kg
Length 21.34 mm
Material 302/304 Stainless Steel
Outside Diameter 7.14 mm
Part Type Standard
Rate 1.02 N/mm
SKU ZZ2-56CS
Sugg Max Deflection 13.72 mm
Sugg Max Load 16.46 N
Wind Direction Left
Wire Diameter 0.79 mm
