Century Spring

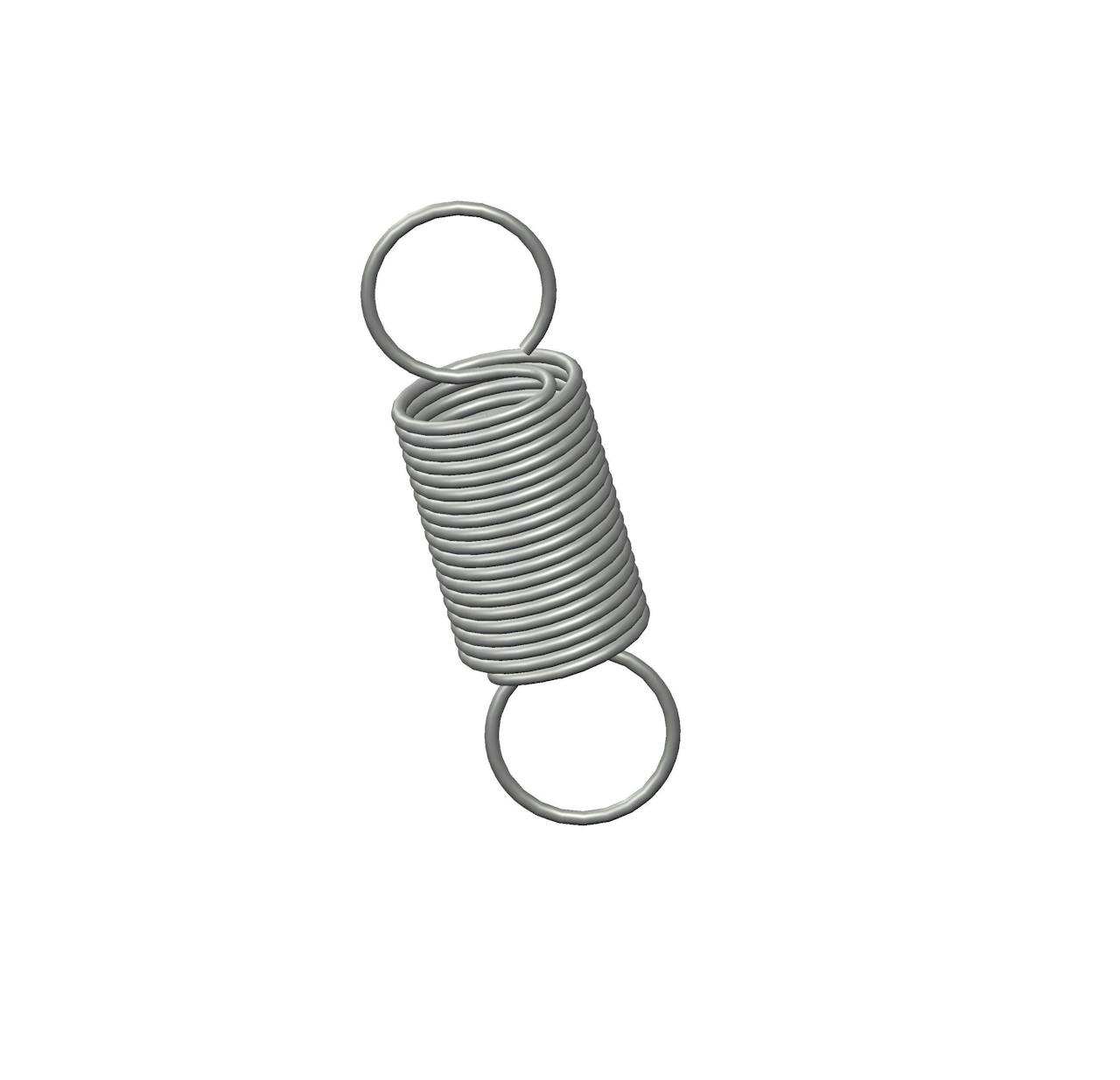

ZZ1-45CS - 0.63 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.188 Inch and an initial tension of 0.05 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ1-45
Ends Full Loop
Finish None
Initial Tension 0.05 lb
Length 0.63 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 0.68 lbs/in
SKU ZZ1-45CS
Sugg Max Deflection 1.2 in
Sugg Max Load 0.84 lbf
Wind Direction Left
Wire Diameter 0.014 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ1-45
Ends Full Loop
Finish None
Initial Tension 0.02 kg
Length 16 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 0.12 N/mm
SKU ZZ1-45CS
Sugg Max Deflection 30.48 mm
Sugg Max Load 3.74 N
Wind Direction Left
Wire Diameter 0.36 mm
