Century Spring

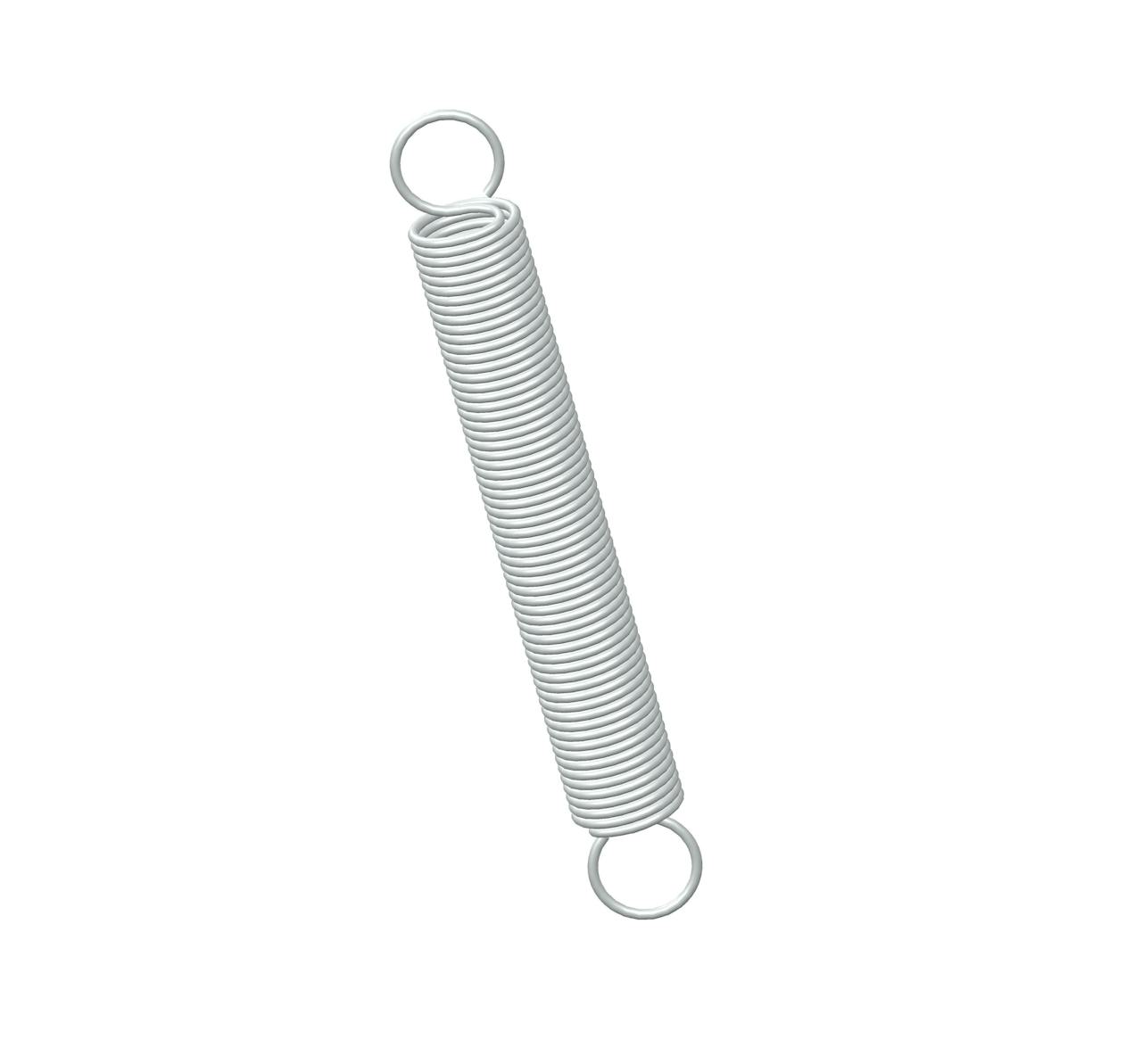

ZZ1-16CS - 1.31 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.172 Inch and an initial tension of 0.1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ1-16
Ends Full Loop
Finish None
Initial Tension 0.1 lb
Length 1.31 in
Material 302/304 Stainless Steel
Outside Diameter 0.172 in
Part Type Standard
Rate 0.36 lbs/in
SKU ZZ1-16CS
Sugg Max Deflection 2.1 in
Sugg Max Load 0.85 lbf
Wind Direction Left
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ1-16
Ends Full Loop
Finish None
Initial Tension 0.05 kg
Length 33.27 mm
Material 302/304 Stainless Steel
Outside Diameter 4.37 mm
Part Type Standard
Rate 0.06 N/mm
SKU ZZ1-16CS
Sugg Max Deflection 53.34 mm
Sugg Max Load 3.78 N
Wind Direction Left
Wire Diameter 0.41 mm
