Century Spring

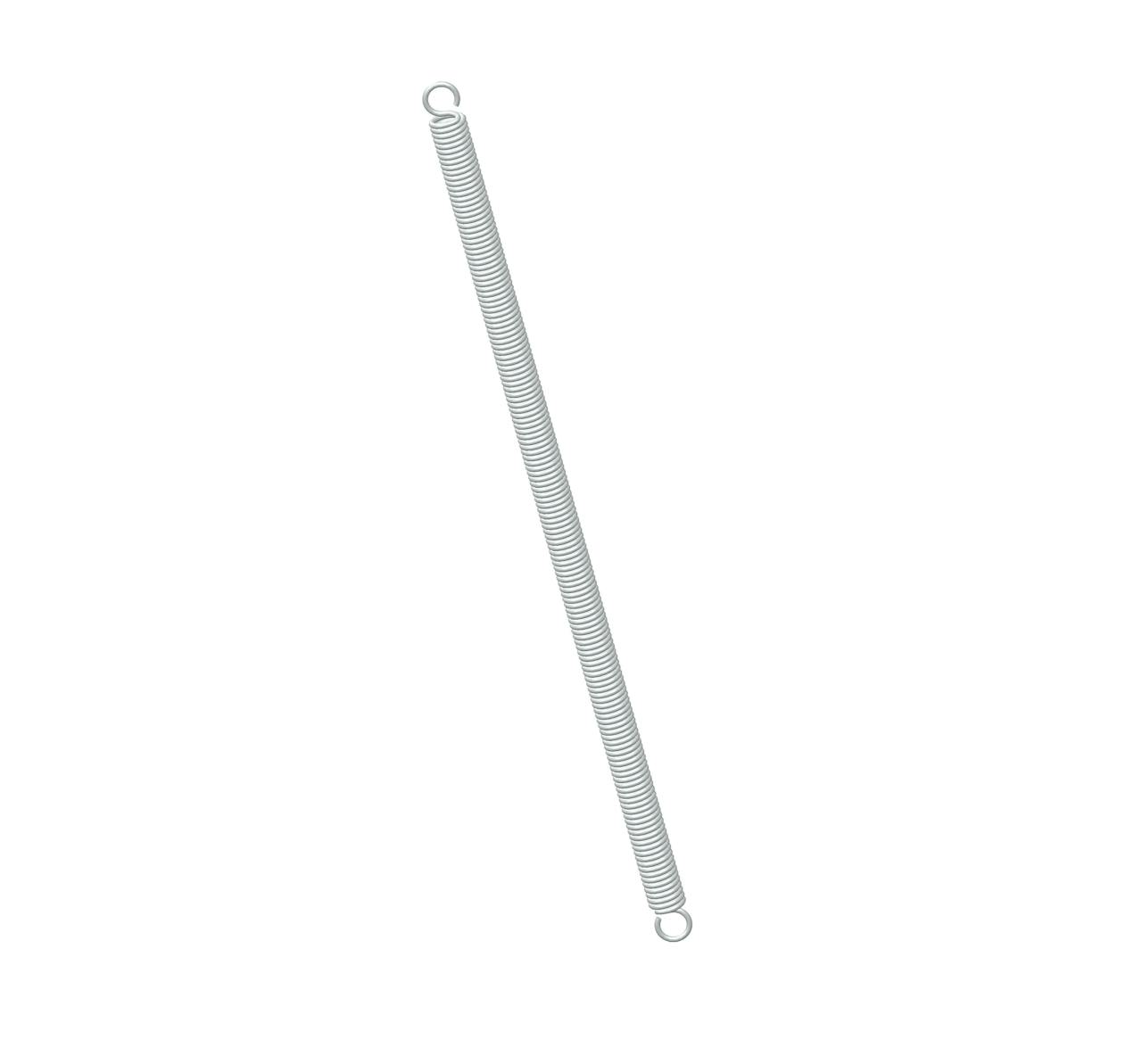

ZZ1-10CS - 1.94 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.078 Inch and an initial tension of 0.2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ1-10
Ends Full Loop
Finish None
Initial Tension 0.2 lb
Length 1.94 in
Material 302/304 Stainless Steel
Outside Diameter 0.078 in
Part Type Standard
Rate 0.6 lbs/in
SKU ZZ1-10CS
Sugg Max Deflection 1.2 in
Sugg Max Load 0.88 lbf
Wind Direction Left
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ1-10
Ends Full Loop
Finish None
Initial Tension 0.09 kg
Length 49.28 mm
Material 302/304 Stainless Steel
Outside Diameter 1.98 mm
Part Type Standard
Rate 0.11 N/mm
SKU ZZ1-10CS
Sugg Max Deflection 30.48 mm
Sugg Max Load 3.91 N
Wind Direction Left
Wire Diameter 0.3 mm
