WAV-25077CS - 3.612 Inch ID 4.627 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

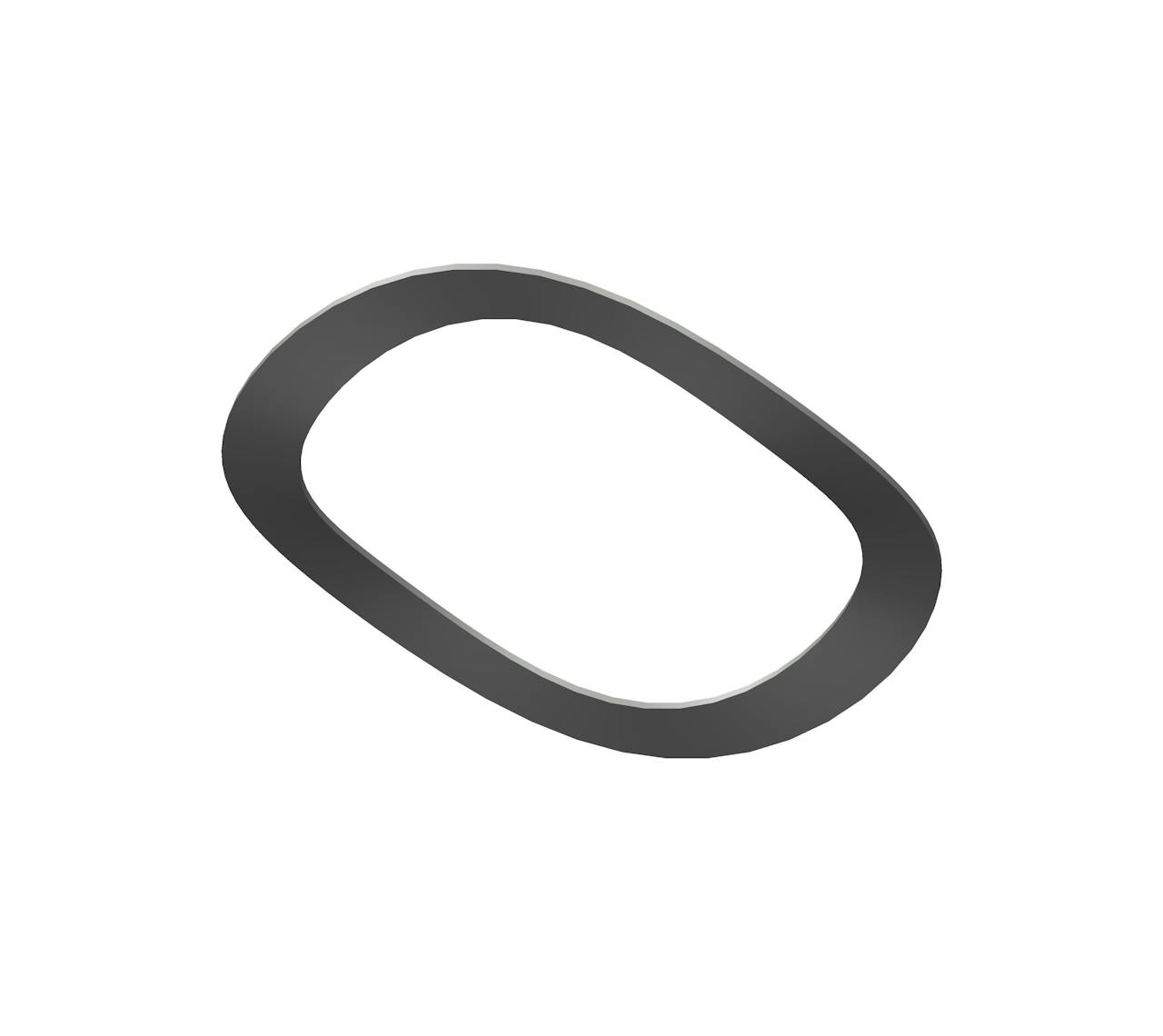

Wave disc spring manufactured from Spring Steel with an inside diameter of 3.612 Inch and an outside diameter of 4.627 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 156 lb
Display Name WAV-25077
Finish None
Inside Diameter 3.612 in
Material Spring Steel
Maximum Deflection at 100% Height 0.162 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 4.627 in
Outside Height 0.334 in
SKU WAV-25077CS
T 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 70.75 kg
Display Name WAV-25077
Finish None
Inside Diameter 91.74 mm
Material Spring Steel
Maximum Deflection at 100% Height 4.11 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 117.53 mm
Outside Height 8.48 mm
SKU WAV-25077CS
T 1.19 mm
