Century Spring

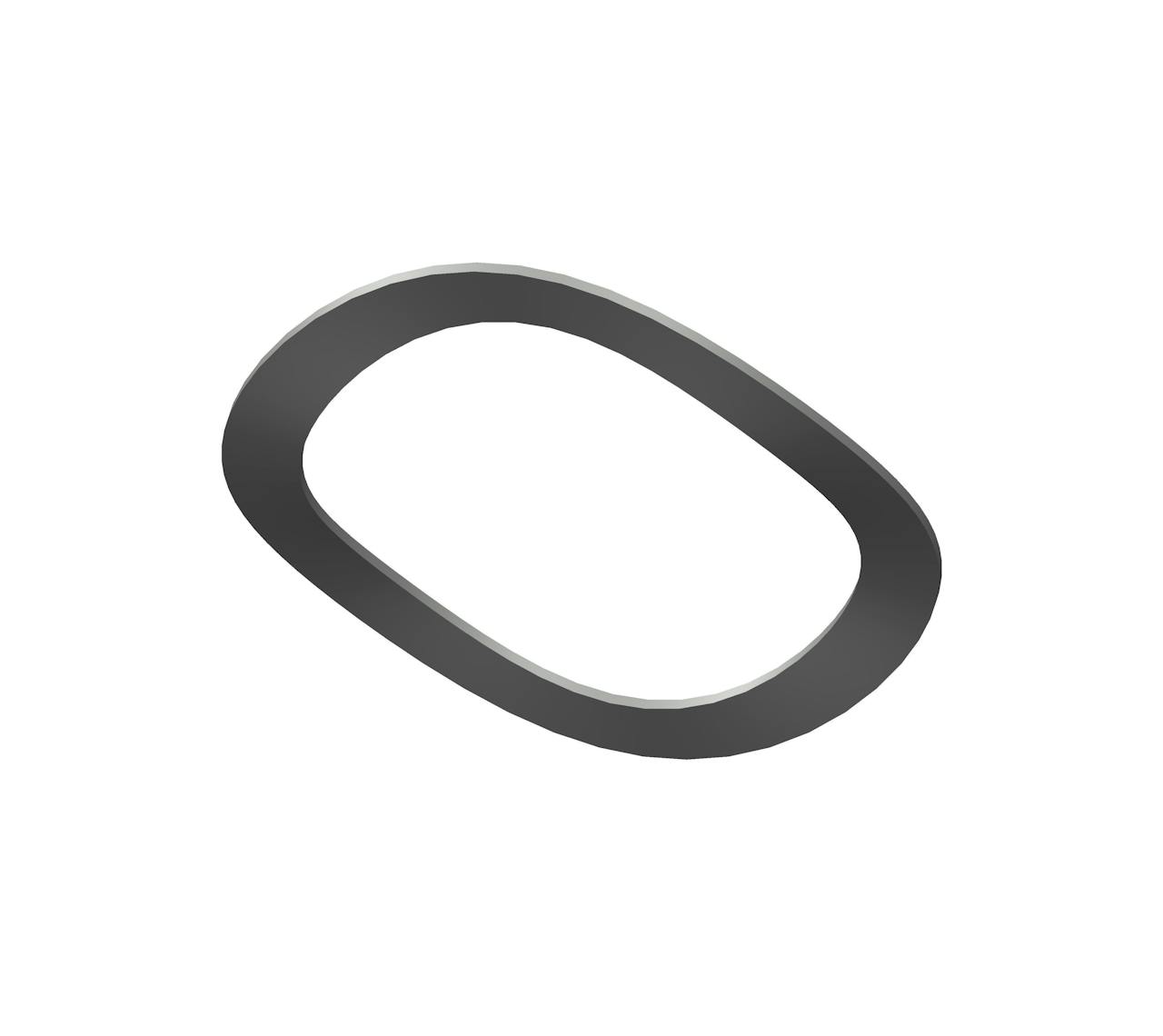

WAV-25050CS - 1.565 Inch ID 2.01 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 1.565 Inch and an outside diameter of 2.01 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 106.8 lb
Display Name WAV-25050
Finish None
Inside Diameter 1.565 in
Material Spring Steel
Maximum Deflection at 100% Height 0.067 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 2.01 in
Outside Height 0.15 in
SKU WAV-25050CS
T 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 48.44 kg
Display Name WAV-25050
Finish None
Inside Diameter 39.75 mm
Material Spring Steel
Maximum Deflection at 100% Height 1.7 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 51.05 mm
Outside Height 3.81 mm
SKU WAV-25050CS
T 0.81 mm
