Century Spring

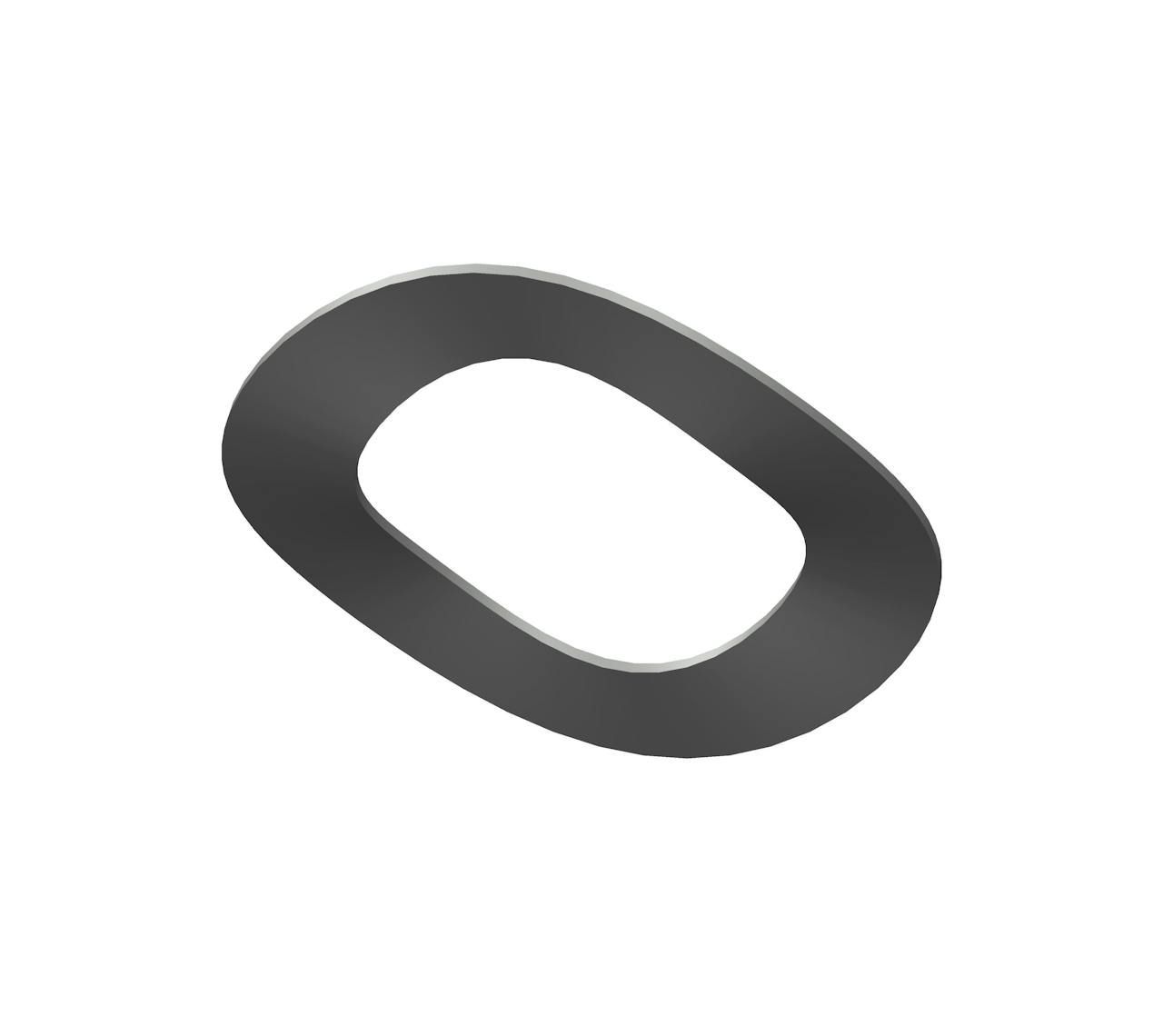

WAV-25042CS - 1.25 Inch ID 2.004 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 1.25 Inch and an outside diameter of 2.004 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 160.6 lb
Display Name WAV-25042
Finish None
Inside Diameter 1.25 in
Material Spring Steel
Maximum Deflection at 100% Height 0.059 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 2.004 in
Outside Height 0.14 in
SKU WAV-25042CS
T 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 72.83 kg
Display Name WAV-25042
Finish None
Inside Diameter 31.75 mm
Material Spring Steel
Maximum Deflection at 100% Height 1.5 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 50.9 mm
Outside Height 3.56 mm
SKU WAV-25042CS
T 0.81 mm
