Century Spring

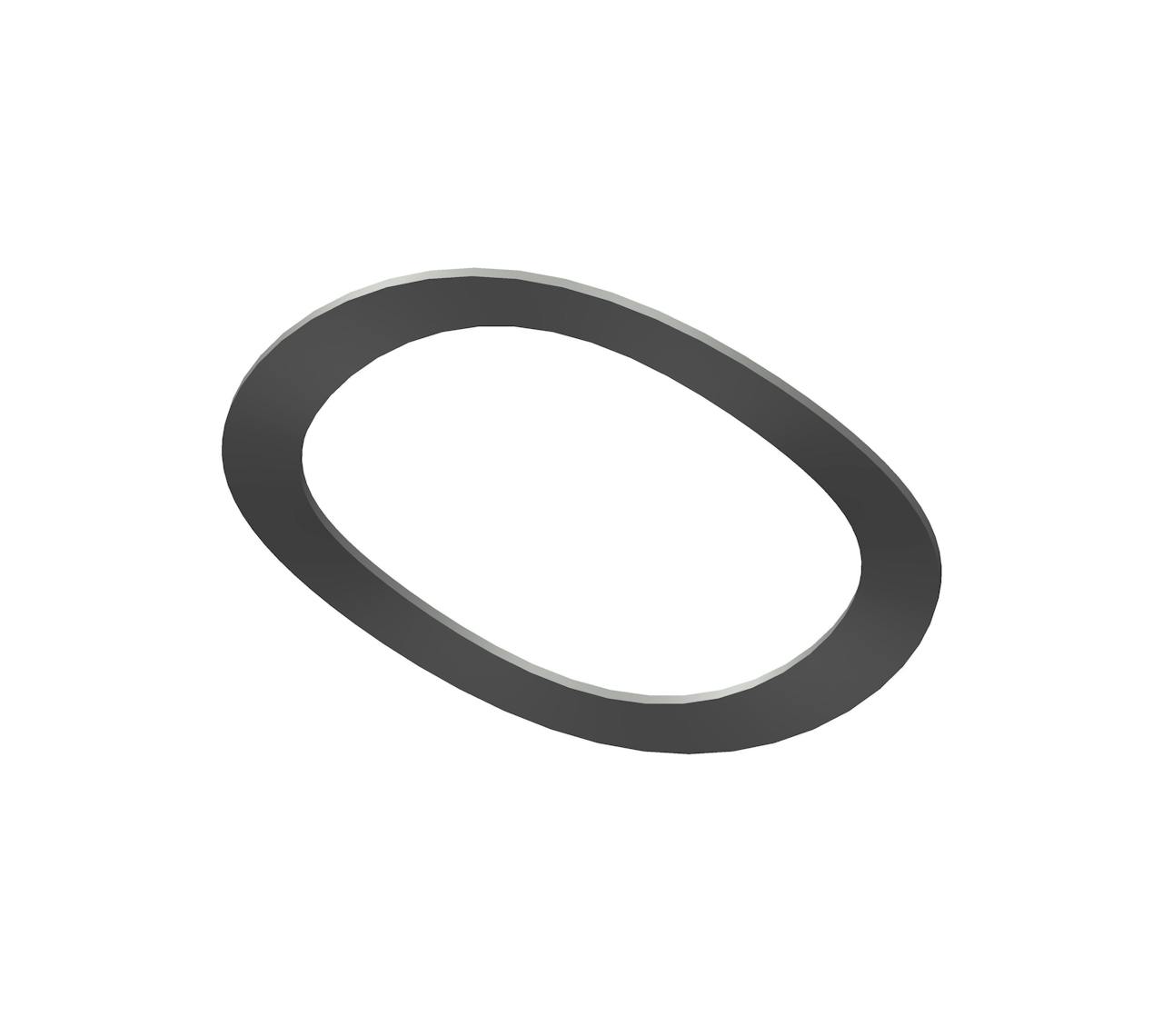

WAV-25030CS - 1.068 Inch ID 1.368 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 1.068 Inch and an outside diameter of 1.368 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 41.3 lb
Display Name WAV-25030
Finish None
Inside Diameter 1.068 in
Material Spring Steel
Maximum Deflection at 100% Height 0.05 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 1.368 in
Outside Height 0.072 in
SKU WAV-25030CS
T 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 18.73 kg
Display Name WAV-25030
Finish None
Inside Diameter 27.13 mm
Material Spring Steel
Maximum Deflection at 100% Height 1.27 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 34.75 mm
Outside Height 1.83 mm
SKU WAV-25030CS
T 0.51 mm
