Century Spring

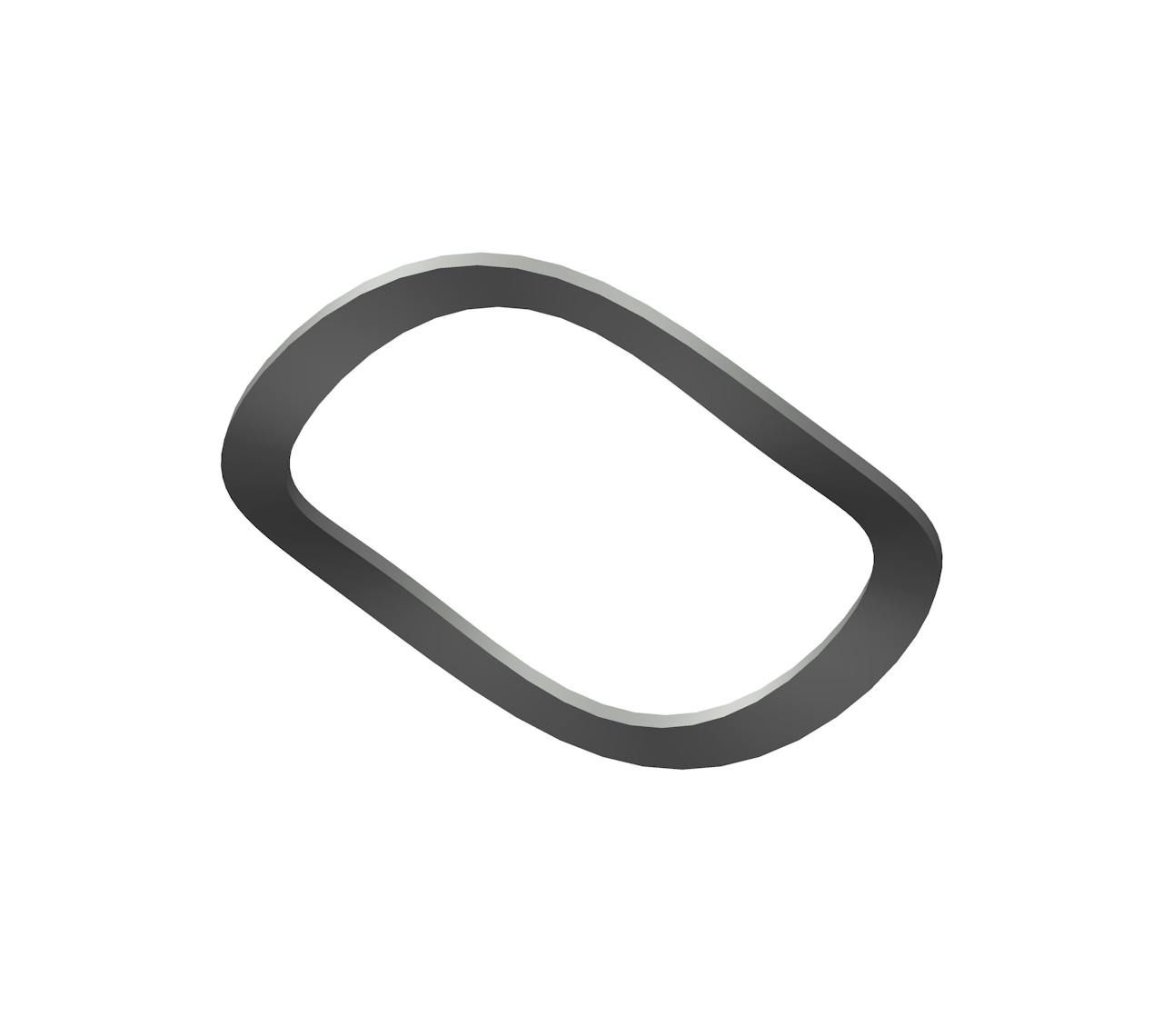

WAV-25020CS - 1.014 Inch ID 1.245 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 1.014 Inch and an outside diameter of 1.245 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 67.2 lb
Display Name WAV-25020
Finish None
Inside Diameter 1.014 in
Material Spring Steel
Maximum Deflection at 100% Height 0.031 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 1.245 in
Outside Height 0.145 in
SKU WAV-25020CS
T 0.028 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 30.48 kg
Display Name WAV-25020
Finish None
Inside Diameter 25.76 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.79 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 31.62 mm
Outside Height 3.68 mm
SKU WAV-25020CS
T 0.71 mm
