Century Spring

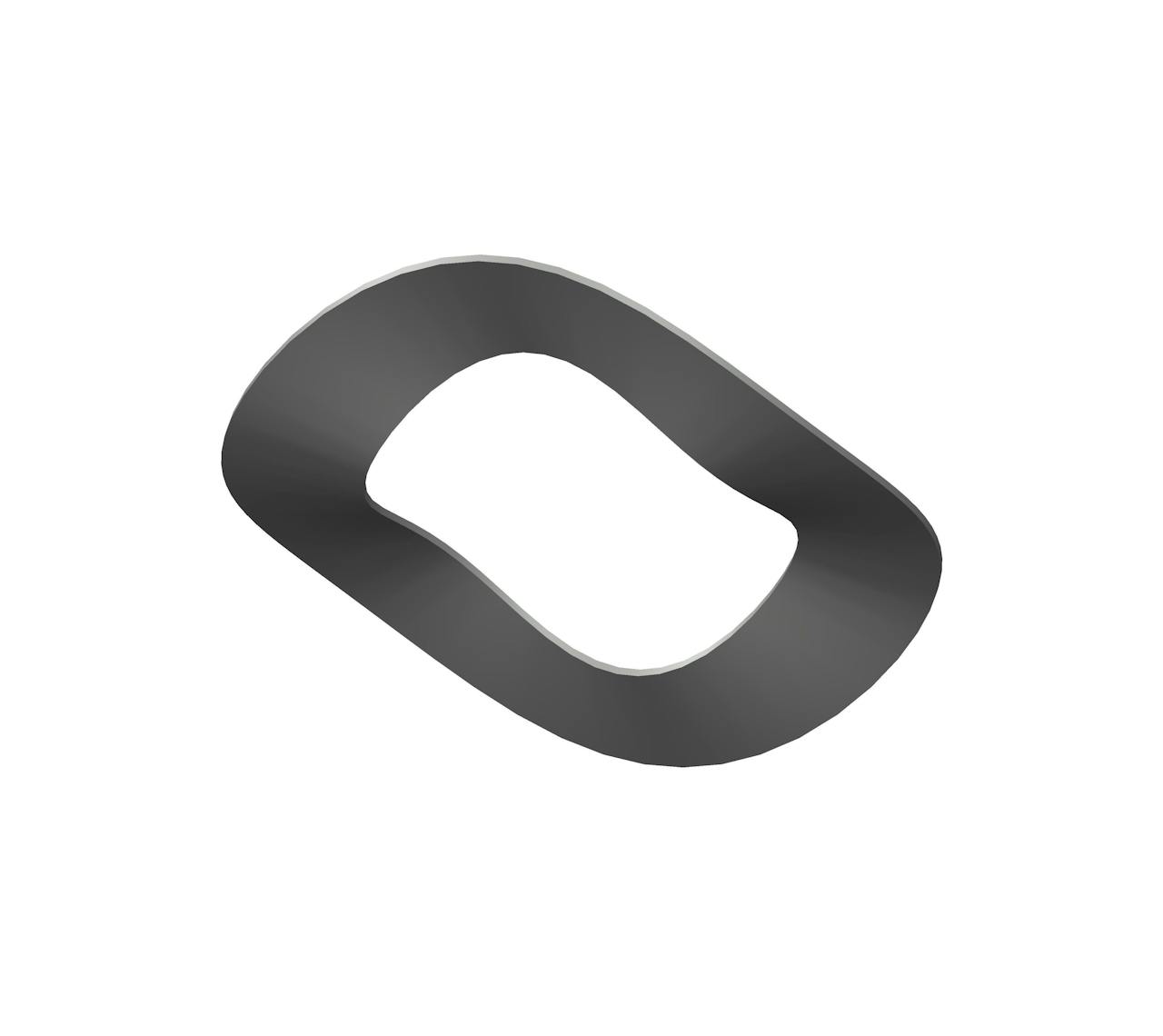

WAV-24913CS - 0.515 Inch ID 0.865 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.515 Inch and an outside diameter of 0.865 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 20.3 lb
Display Name WAV-24913
Finish None
Inside Diameter 0.515 in
Material Spring Steel
Maximum Deflection at 100% Height 0.032 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.865 in
Outside Height 0.093 in
SKU WAV-24913CS
T 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 9.21 kg
Display Name WAV-24913
Finish None
Inside Diameter 13.08 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.81 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 21.97 mm
Outside Height 2.36 mm
SKU WAV-24913CS
T 0.25 mm
