Century Spring

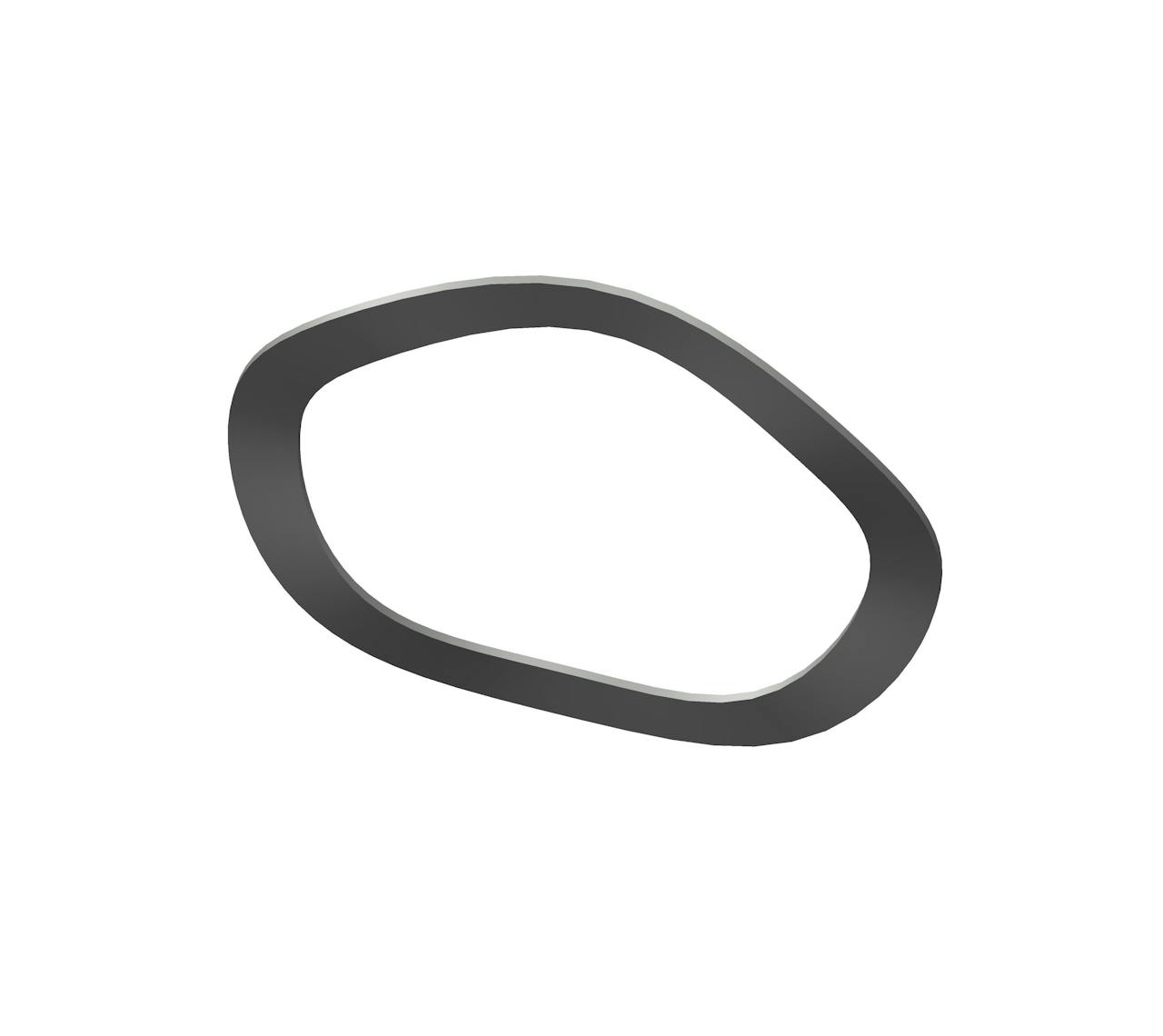

WAV-24907CS - 0.49 Inch ID 0.61 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.49 Inch and an outside diameter of 0.61 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name WAV-24907
Finish None
Inside Diameter 0.49 in
Material Spring Steel
Maximum Deflection at 100% Height 7.97 in
Measurement Units Standard
Number of Waves 4
Outside Diameter 0.61 in
Outside Height 0.032 in
SKU WAV-24907CS
T 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name WAV-24907
Finish None
Inside Diameter 12.45 mm
Material Spring Steel
Maximum Deflection at 100% Height 202.44 mm
Measurement Units Standard
Number of Waves 4
Outside Diameter 15.49 mm
Outside Height 0.81 mm
SKU WAV-24907CS
T 0.2 mm
