Century Spring

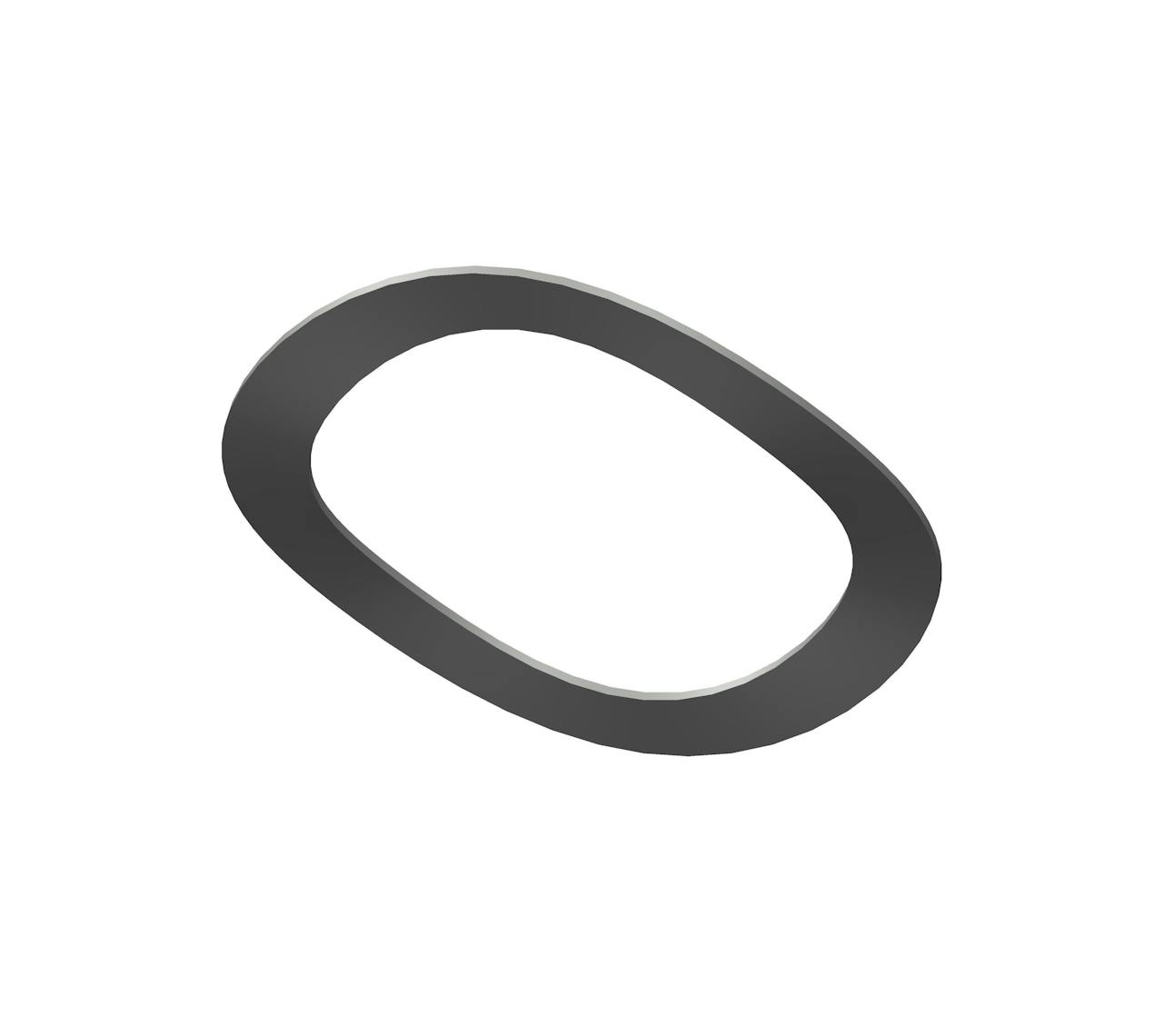

WAV-24902CS - 0.459 Inch ID 0.608 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.459 Inch and an outside diameter of 0.608 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 4 lb
Display Name WAV-24902
Finish None
Inside Diameter 0.459 in
Material Spring Steel
Maximum Deflection at 100% Height 0.025 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.608 in
Outside Height 0.037 in
SKU WAV-24902CS
T 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 1.81 kg
Display Name WAV-24902
Finish None
Inside Diameter 11.66 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.64 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 15.44 mm
Outside Height 0.94 mm
SKU WAV-24902CS
T 0.2 mm
