Century Spring

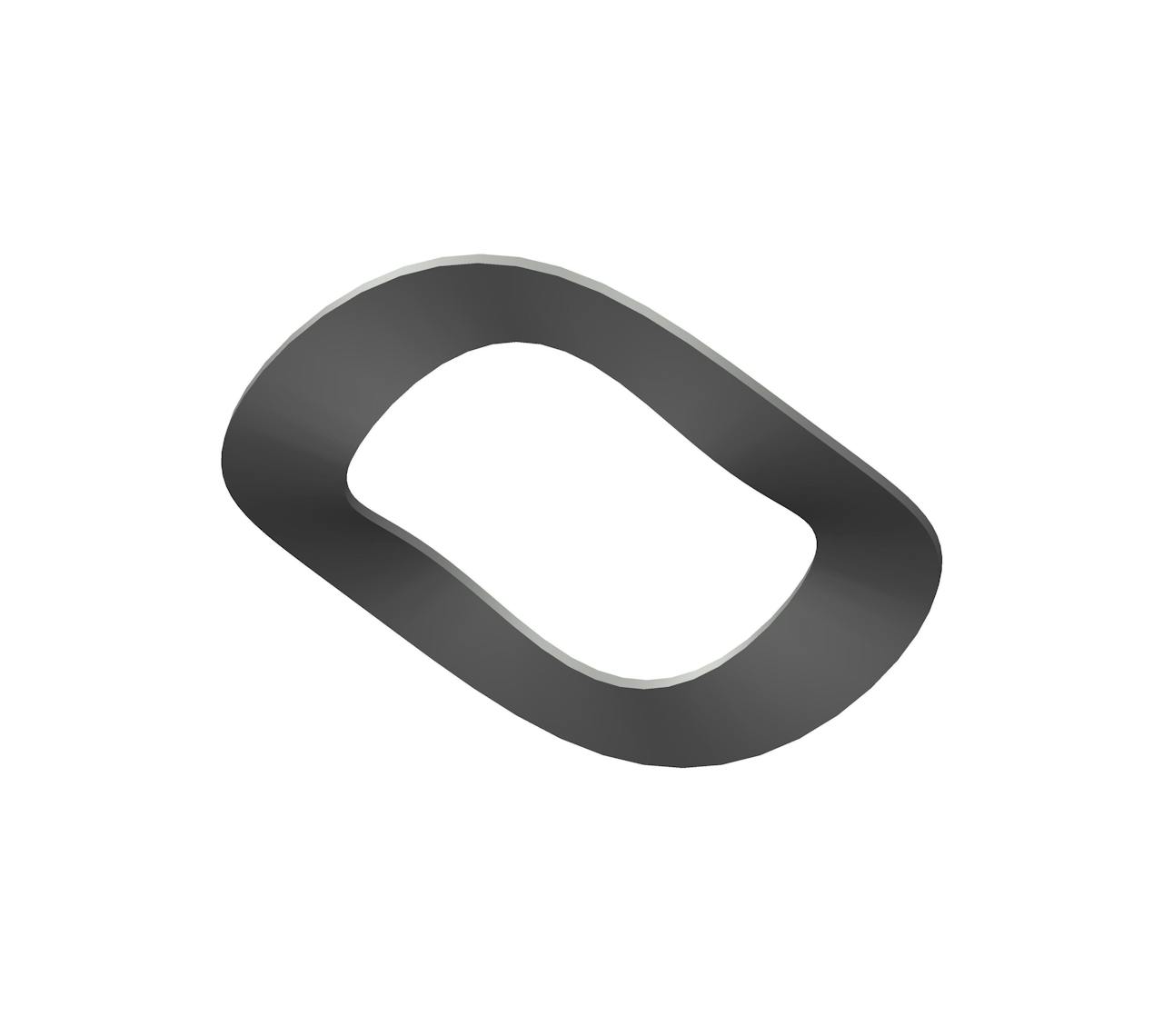

WAV-24835CS - 0.325 Inch ID 0.5 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.325 Inch and an outside diameter of 0.5 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 10 lb
Display Name WAV-24835
Finish None
Inside Diameter 0.325 in
Material Spring Steel
Maximum Deflection at 100% Height 0.014 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.5 in
Outside Height 0.055 in
SKU WAV-24835CS
T 0.008 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 4.54 kg
Display Name WAV-24835
Finish None
Inside Diameter 8.26 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.36 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 12.7 mm
Outside Height 1.4 mm
SKU WAV-24835CS
T 0.2 mm
