Century Spring

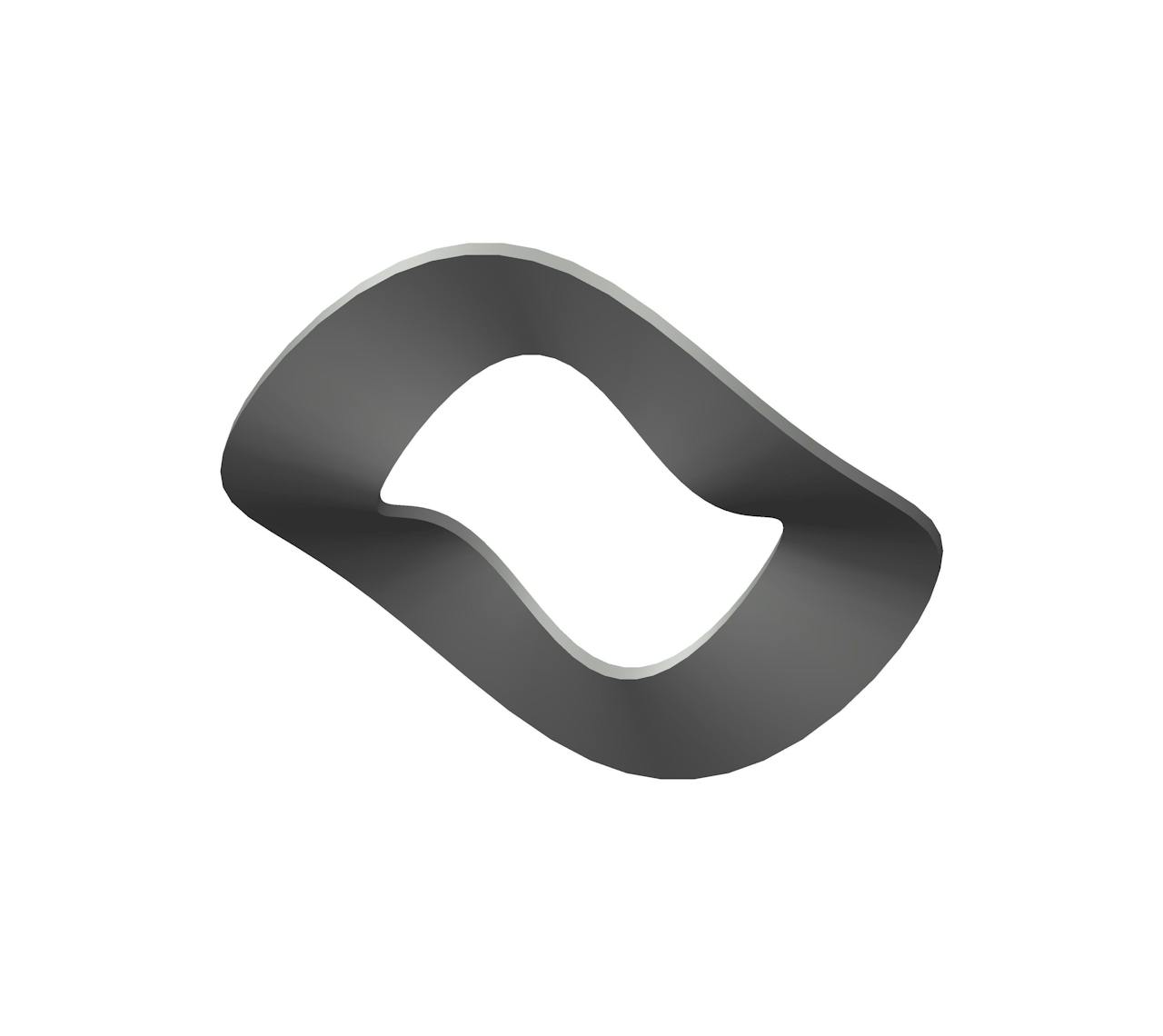

WAV-24755CS - 0.155 Inch ID 0.281 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.155 Inch and an outside diameter of 0.281 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 8.7 lb
Display Name WAV-24755
Finish None
Inside Diameter 0.155 in
Material Spring Steel
Maximum Deflection at 100% Height 0.005 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.281 in
Outside Height 0.045 in
SKU WAV-24755CS
T 0.006 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 3.95 kg
Display Name WAV-24755
Finish None
Inside Diameter 3.94 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.13 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 7.14 mm
Outside Height 1.14 mm
SKU WAV-24755CS
T 0.15 mm
