Century Spring

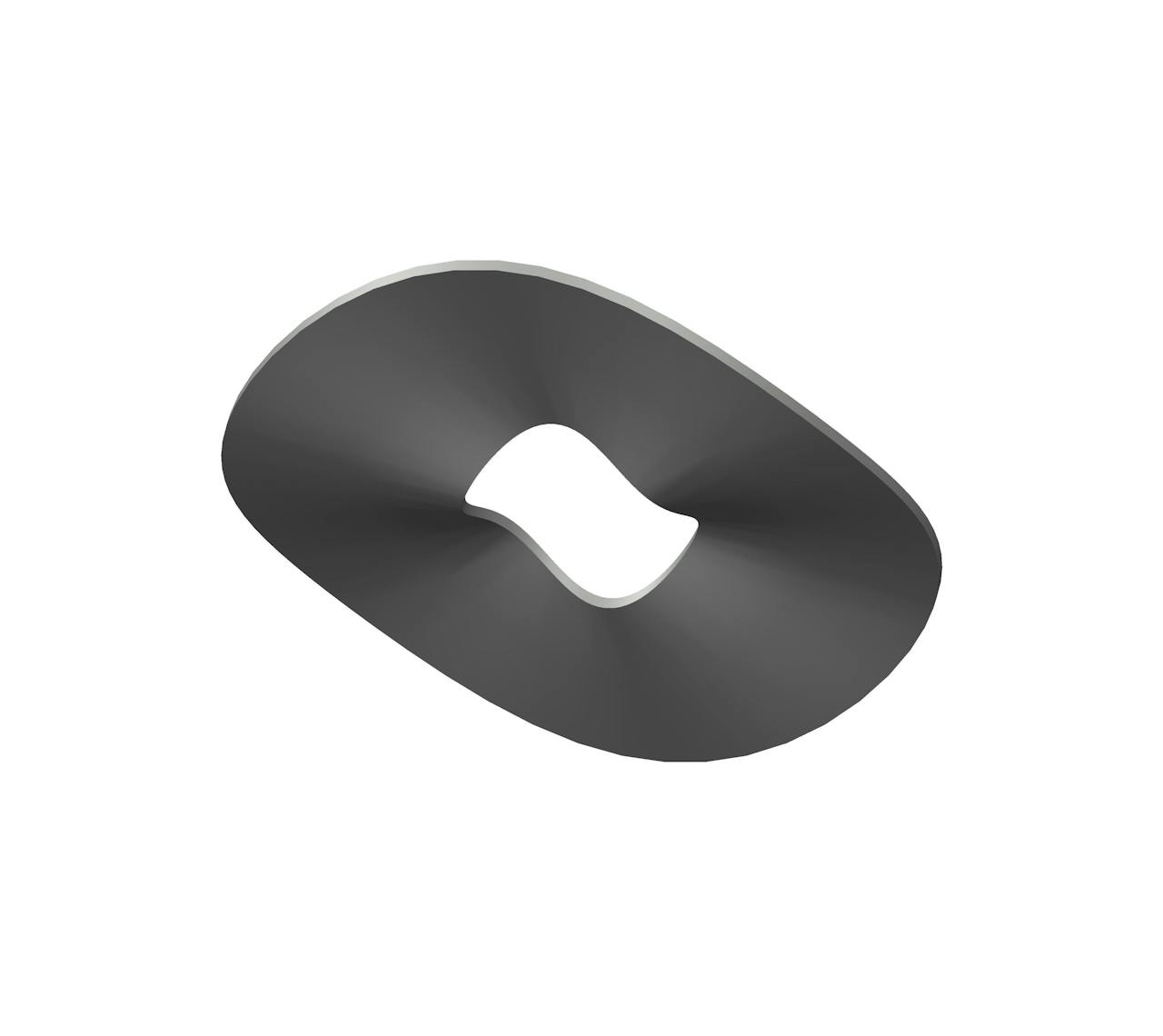

WAV-24743CS - 0.128 Inch ID 0.402 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.128 Inch and an outside diameter of 0.402 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name WAV-24743
Finish None
Inside Diameter 0.128 in
Material Spring Steel
Maximum Deflection at 100% Height 0.007 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.402 in
Outside Height 0.035 in
SKU WAV-24743CS
T 0.007 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name WAV-24743
Finish None
Inside Diameter 3.25 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.18 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 10.21 mm
Outside Height 0.89 mm
SKU WAV-24743CS
T 0.18 mm
