Century Spring

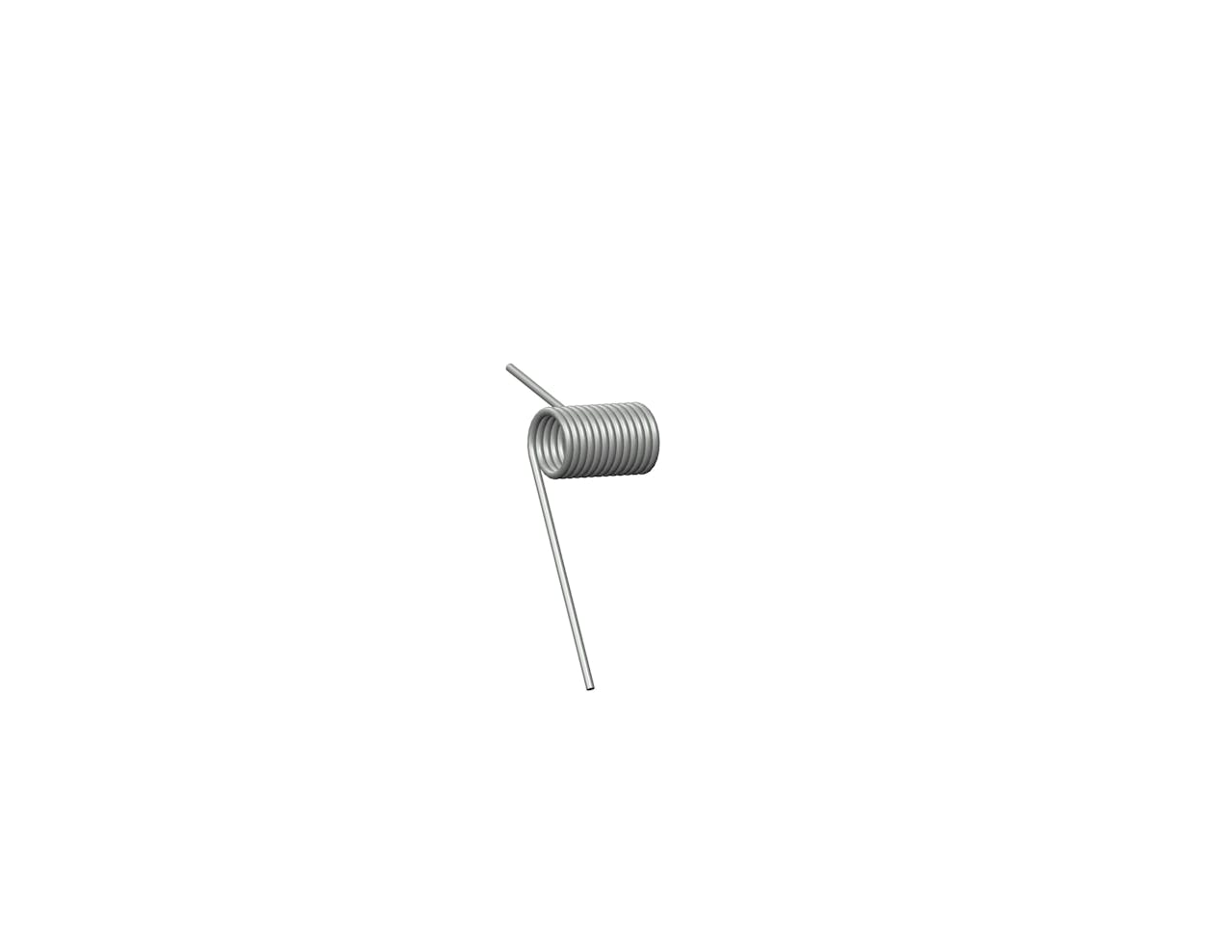

TO-5239RCS - 225 Degree, 0.1957 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 12.875 total coils and 4 Inch legs. This spring features an O.D. of 1.16 Inch, an I.D. of 0.89 Inch, and a spring rate of 0.1957 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 225 deg
Body Length 2.06 in
Brand Century Spring
Display Name TO-5239R
Finish None
Inside Diameter 0.89 in
Leg Length 4 in
Mandrel Diameter 0.72 in
Material Music Wire
Max Deflection (deg) (suggested) 213
Max Torque (suggested) 42 lbs/in
Measurement Units Standard
Outside Diameter 1.16 in
Rate 0.1957 lbf-in/deg
SKU TO-5239RCS
Total Coils 12.875
Wind Direction Right
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Angle Between Legs 225 deg
Body Length 52.32 mm
Brand Century Spring
Display Name TO-5239R
Finish None
Inside Diameter 22.61 mm
Leg Length 101.6 mm
Mandrel Diameter 18.29 mm
Material Music Wire
Max Deflection (deg) (suggested) 213
Max Torque (suggested) 7.35 N-mm
Measurement Units Standard
Outside Diameter 29.46 mm
Rate 22.11 N-mm/deg
SKU TO-5239RCS
Total Coils 12.88
Wind Direction Right
Wire Diameter 3.43 mm
