TO-5229RCS - 315 Degree, 0.0701 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

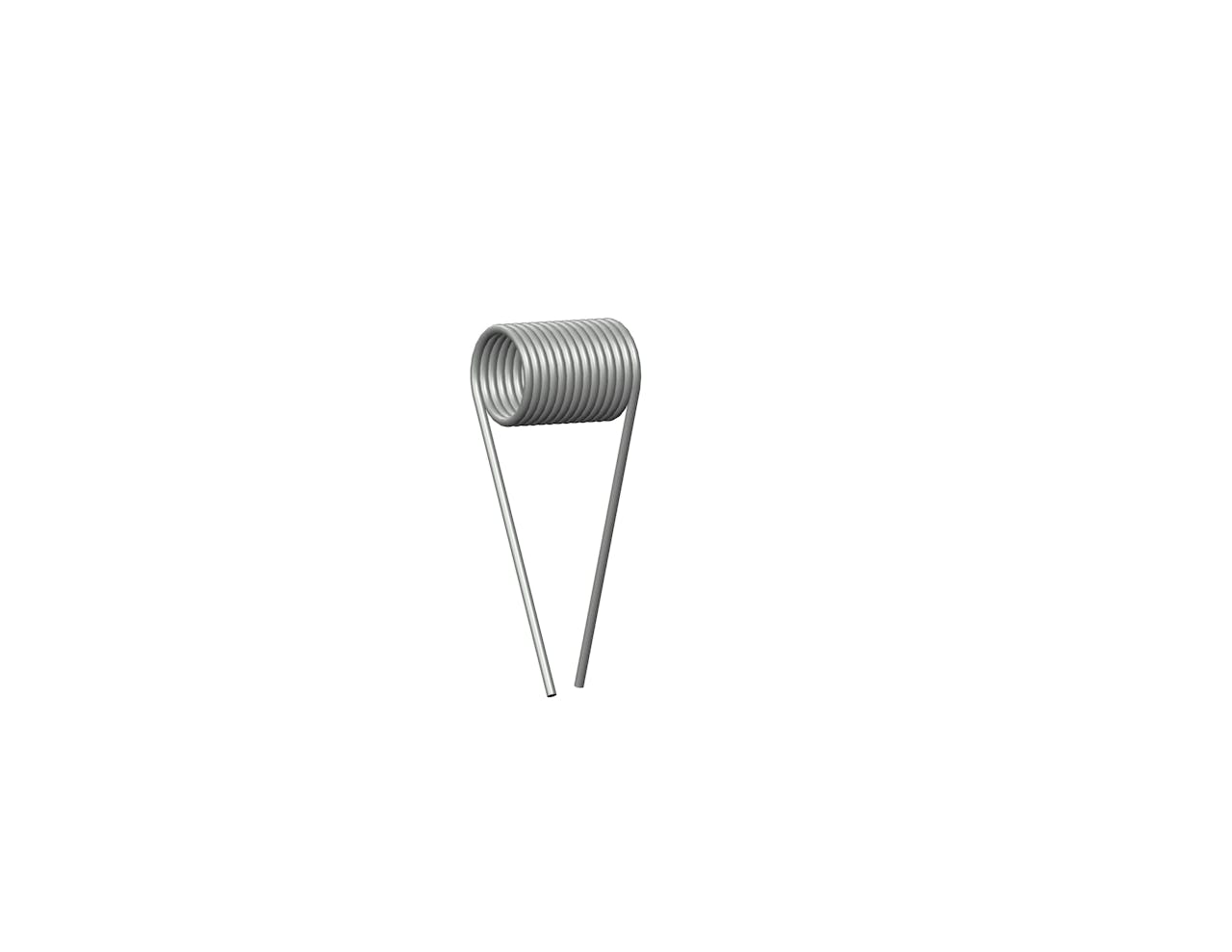

Torsion spring in Music Wire with 13.625 total coils and 3.5 Inch legs. This spring features an O.D. of 1.114 Inch, an I.D. of 0.904 Inch, and a spring rate of 0.0701 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 315 deg
Body Length 1.69 in
Brand Century Spring
Display Name TO-5229R
Finish None
Inside Diameter 0.904 in
Leg Length 3.5 in
Mandrel Diameter 0.72 in
Material Music Wire
Max Deflection (deg) (suggested) 304
Max Torque (suggested) 21 lbs/in
Measurement Units Standard
Outside Diameter 1.114 in
Rate 0.0701 lbf-in/deg
SKU TO-5229RCS
Total Coils 13.625
Wind Direction Right
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Angle Between Legs 315 deg
Body Length 42.93 mm
Brand Century Spring
Display Name TO-5229R
Finish None
Inside Diameter 22.96 mm
Leg Length 88.9 mm
Mandrel Diameter 18.29 mm
Material Music Wire
Max Deflection (deg) (suggested) 304
Max Torque (suggested) 3.68 N-mm
Measurement Units Standard
Outside Diameter 28.3 mm
Rate 7.92 N-mm/deg
SKU TO-5229RCS
Total Coils 13.63
Wind Direction Right
Wire Diameter 2.67 mm
