TO-5220RSCS - 180 Degree, 0.0888 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

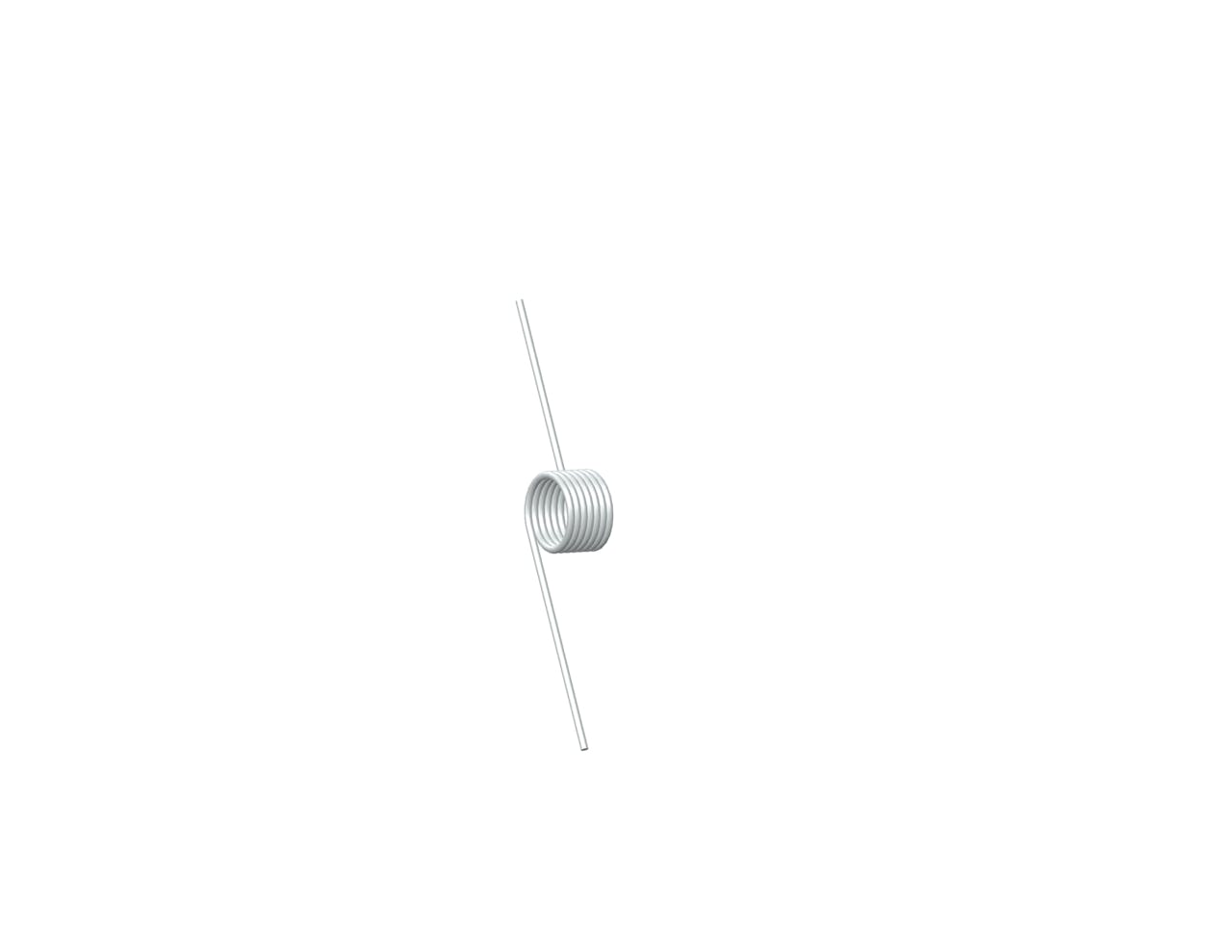

Torsion spring in 302/304 Stainless Steel with 7 total coils and 3 Inch legs. This spring features an O.D. of 1.038 Inch, an I.D. of 0.848 Inch, and a spring rate of 0.0888 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 180 deg
Body Length 0.84 in
Brand Century Spring
Display Name TO-5220RS
Finish None
Inside Diameter 0.848 in
Leg Length 3 in
Mandrel Diameter 0.68 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 152
Max Torque (suggested) 13 lbs/in
Measurement Units Standard
Outside Diameter 1.038 in
Rate 0.0888 lbf-in/deg
SKU TO-5220RSCS
Total Coils 7
Wind Direction Right
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Angle Between Legs 180 deg
Body Length 21.34 mm
Brand Century Spring
Display Name TO-5220RS
Finish None
Inside Diameter 21.54 mm
Leg Length 76.2 mm
Mandrel Diameter 17.27 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 152
Max Torque (suggested) 2.28 N-mm
Measurement Units Standard
Outside Diameter 26.37 mm
Rate 10.03 N-mm/deg
SKU TO-5220RSCS
Total Coils 7
Wind Direction Right
Wire Diameter 2.41 mm
