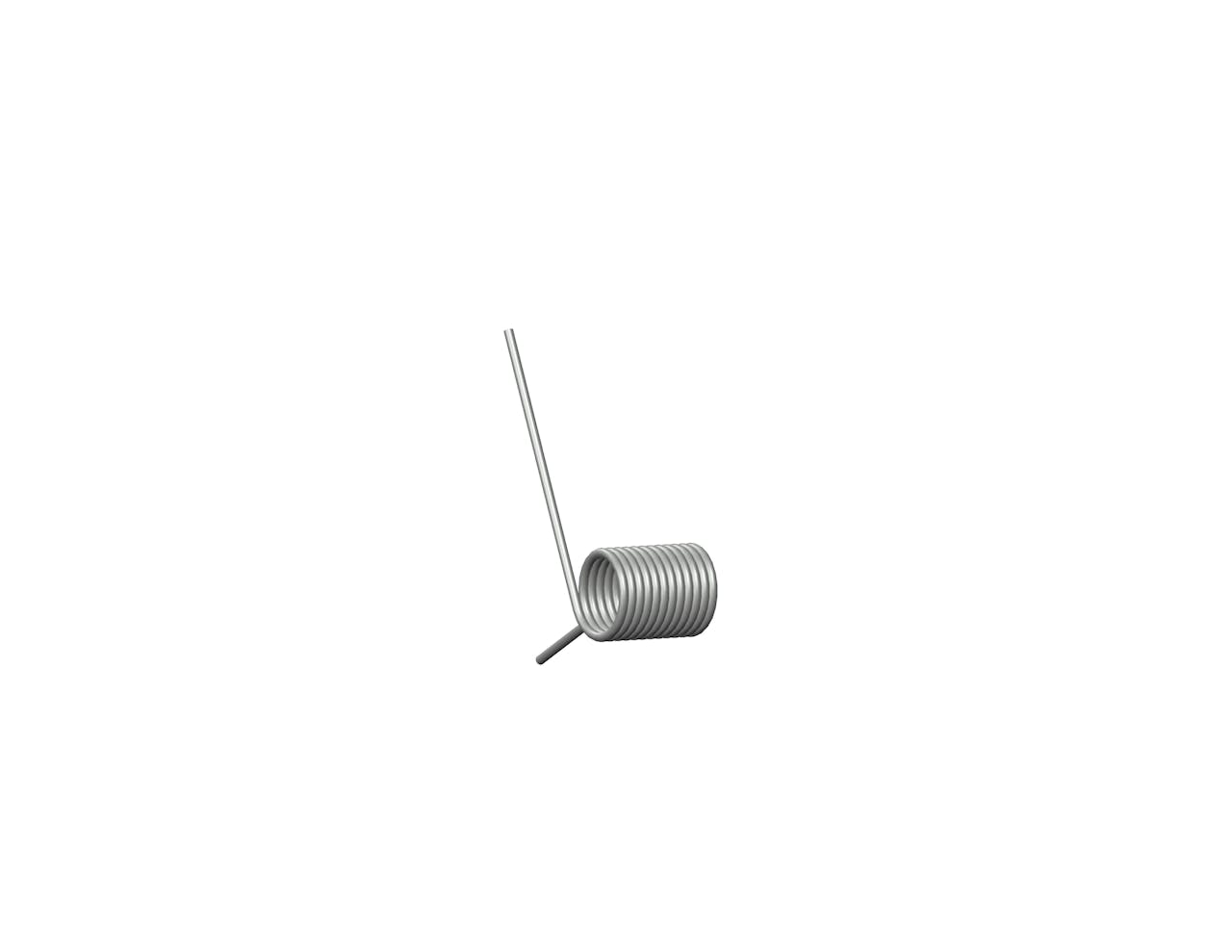

TO-5207LCS - 270 Degree, 0.0635 Inch-Pounds per Degree Rate Music Wire Torsion Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Torsion spring in Music Wire with 11.75 total coils and 3 Inch legs. This spring features an O.D. of 0.937 Inch, an I.D. of 0.747 Inch, and a spring rate of 0.0635 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 1.33 in |
| Brand | Century Spring |
| Display Name | TO-5207L |
| Finish | None |
| Inside Diameter | 0.747 in |
| Leg Length | 3 in |
| Mandrel Diameter | 0.6 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 247 |
| Max Torque (suggested) | 16 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.937 in |
| Rate | 0.0635 lbf-in/deg |
| SKU | TO-5207LCS |
| Total Coils | 11.75 |
| Wind Direction | Left |
| Wire Diameter | 0.095 in |
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 33.78 mm |
| Brand | Century Spring |
| Display Name | TO-5207L |
| Finish | None |
| Inside Diameter | 18.97 mm |
| Leg Length | 76.2 mm |
| Mandrel Diameter | 15.24 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 247 |
| Max Torque (suggested) | 2.8 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 23.8 mm |
| Rate | 7.17 N-mm/deg |
| SKU | TO-5207LCS |
| Total Coils | 11.75 |
| Wind Direction | Left |
| Wire Diameter | 2.41 mm |
