Century Spring

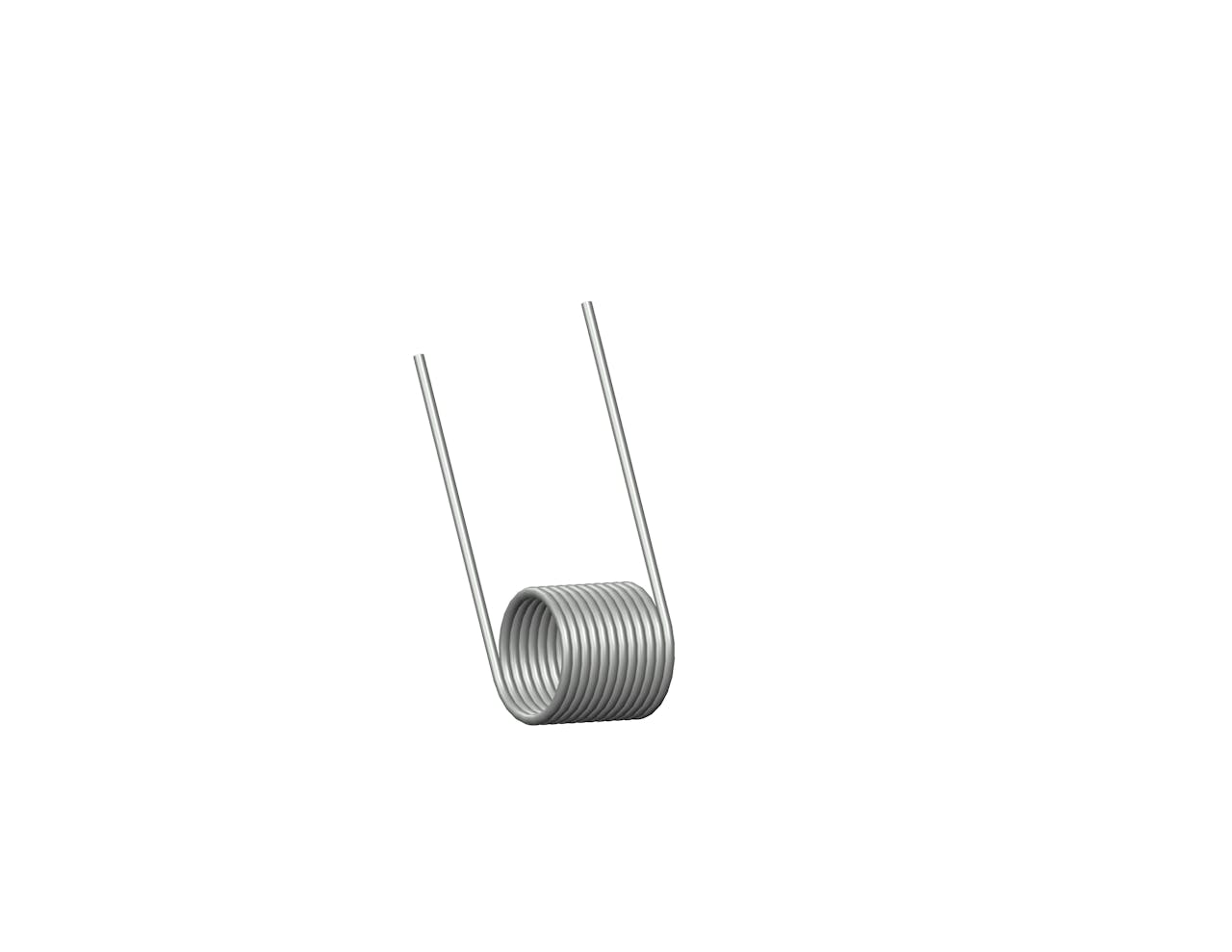

TO-5190LCS - 0 Degree, 0.0153 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in Music Wire with 11.5 total coils and 2 Inch legs. This spring features an O.D. of 0.798 Inch, an I.D. of 0.673 Inch, and a spring rate of 0.0153 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.87 in
Brand Century Spring
Display Name TO-5190L
Finish None
Inside Diameter 0.673 in
Leg Length 2 in
Mandrel Diameter 0.53 in
Material Music Wire
Max Deflection (deg) (suggested) 333
Max Torque (suggested) 5.1 lbs/in
Measurement Units Standard
Outside Diameter 0.798 in
Rate 0.0153 lbf-in/deg
SKU TO-5190LCS
Total Coils 11.5
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 22.1 mm
Brand Century Spring
Display Name TO-5190L
Finish None
Inside Diameter 17.09 mm
Leg Length 50.8 mm
Mandrel Diameter 13.46 mm
Material Music Wire
Max Deflection (deg) (suggested) 333
Max Torque (suggested) 0.89 N-mm
Measurement Units Standard
Outside Diameter 20.27 mm
Rate 1.73 N-mm/deg
SKU TO-5190LCS
Total Coils 11.5
Wind Direction Left
Wire Diameter 1.59 mm
