TO-5164LCS - 0 Degree, 0.0086 Inch-Pounds per Degree Rate Music Wire Torsion Spring

Inventory Status
Estimated Lead Time

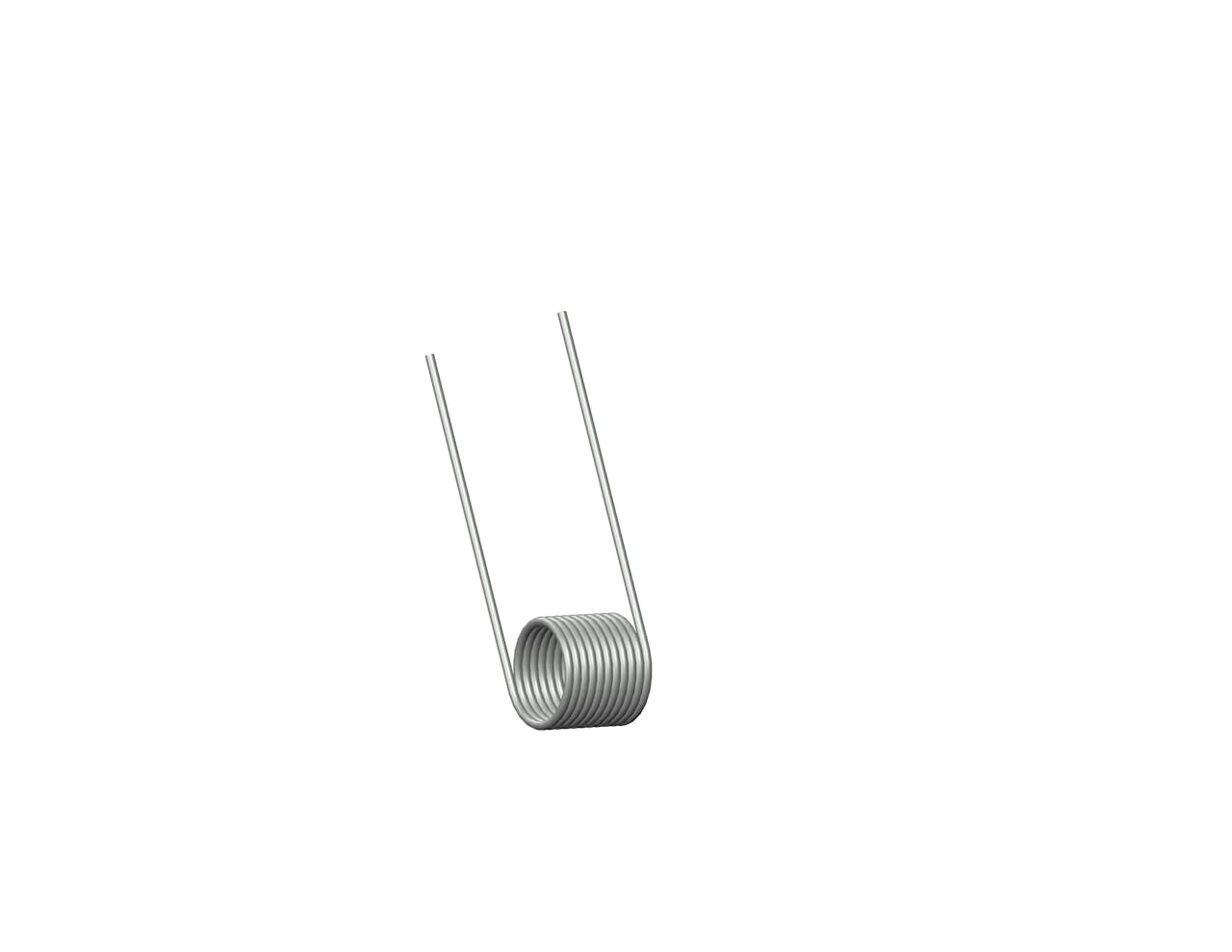

Torsion spring in Music Wire with 10.5 total coils and 2 Inch legs. This spring features an O.D. of 0.628 Inch, an I.D. of 0.526 Inch, and a spring rate of 0.0086 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.65 in
Brand Century Spring
Display Name TO-5164L
Finish None
Inside Diameter 0.526 in
Leg Length 2 in
Mandrel Diameter 0.41 in
Material Music Wire
Max Deflection (deg) (suggested) 313
Max Torque (suggested) 2.7 lbs/in
Measurement Units Standard
Outside Diameter 0.628 in
Rate 0.0086 lbf-in/deg
SKU TO-5164LCS
Total Coils 10.5
Wind Direction Left
Wire Diameter 0.051 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 16.51 mm
Brand Century Spring
Display Name TO-5164L
Finish None
Inside Diameter 13.36 mm
Leg Length 50.8 mm
Mandrel Diameter 10.41 mm
Material Music Wire
Max Deflection (deg) (suggested) 313
Max Torque (suggested) 0.47 N-mm
Measurement Units Standard
Outside Diameter 15.95 mm
Rate 0.97 N-mm/deg
SKU TO-5164LCS
Total Coils 10.5
Wind Direction Left
Wire Diameter 1.3 mm
