Century Spring

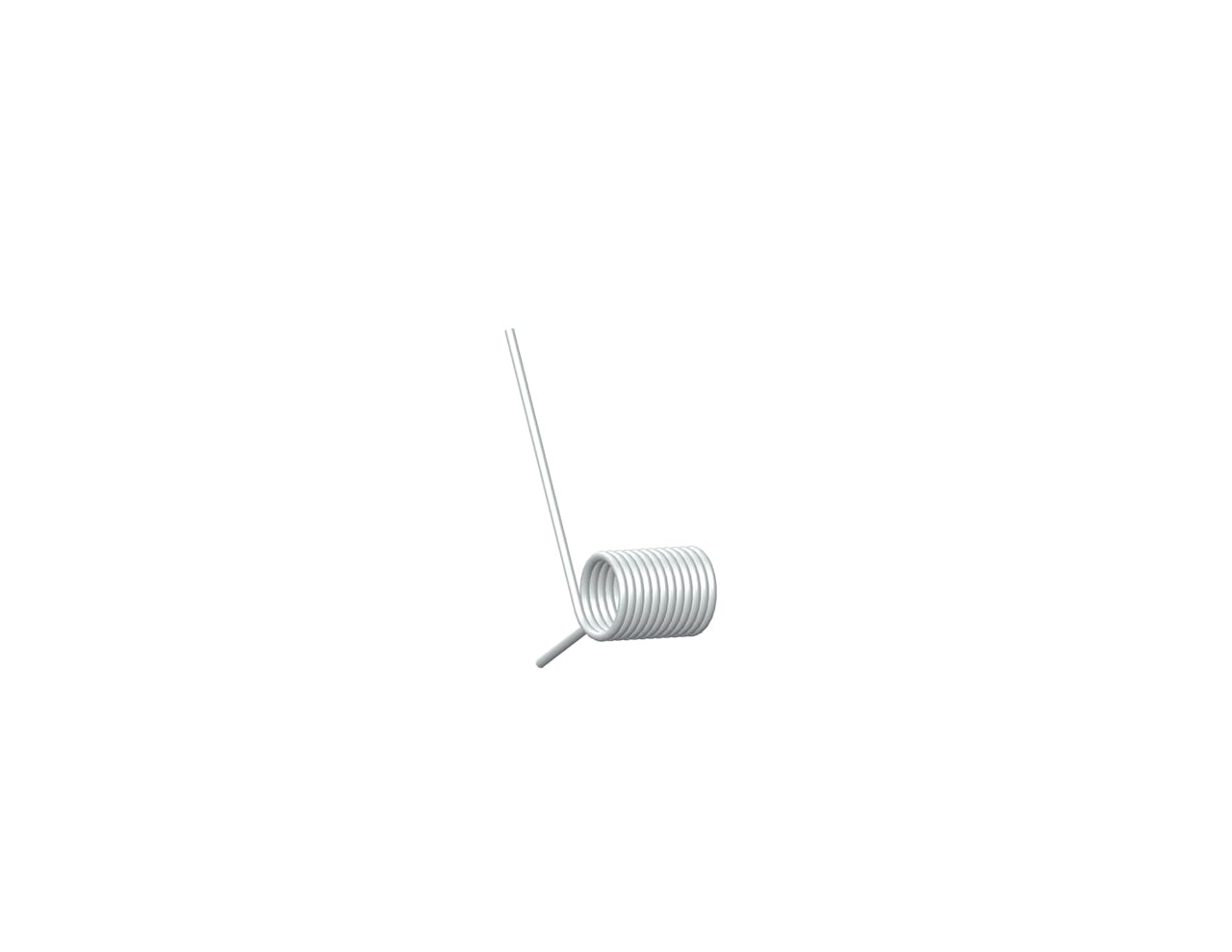

TO-5160LSCS - 270 Degree, 0.019 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 11.75 total coils and 2 Inch legs. This spring features an O.D. of 0.6 Inch, an I.D. of 0.475 Inch, and a spring rate of 0.019 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.88 in
Brand Century Spring
Display Name TO-5160LS
Finish None
Inside Diameter 0.475 in
Leg Length 2 in
Mandrel Diameter 0.38 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 227
Max Torque (suggested) 4.3 lbs/in
Measurement Units Standard
Outside Diameter 0.6 in
Rate 0.019 lbf-in/deg
SKU TO-5160LSCS
Total Coils 11.75
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 22.35 mm
Brand Century Spring
Display Name TO-5160LS
Finish None
Inside Diameter 12.07 mm
Leg Length 50.8 mm
Mandrel Diameter 9.65 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 227
Max Torque (suggested) 0.75 N-mm
Measurement Units Standard
Outside Diameter 15.24 mm
Rate 2.15 N-mm/deg
SKU TO-5160LSCS
Total Coils 11.75
Wind Direction Left
Wire Diameter 1.59 mm
