Century Spring

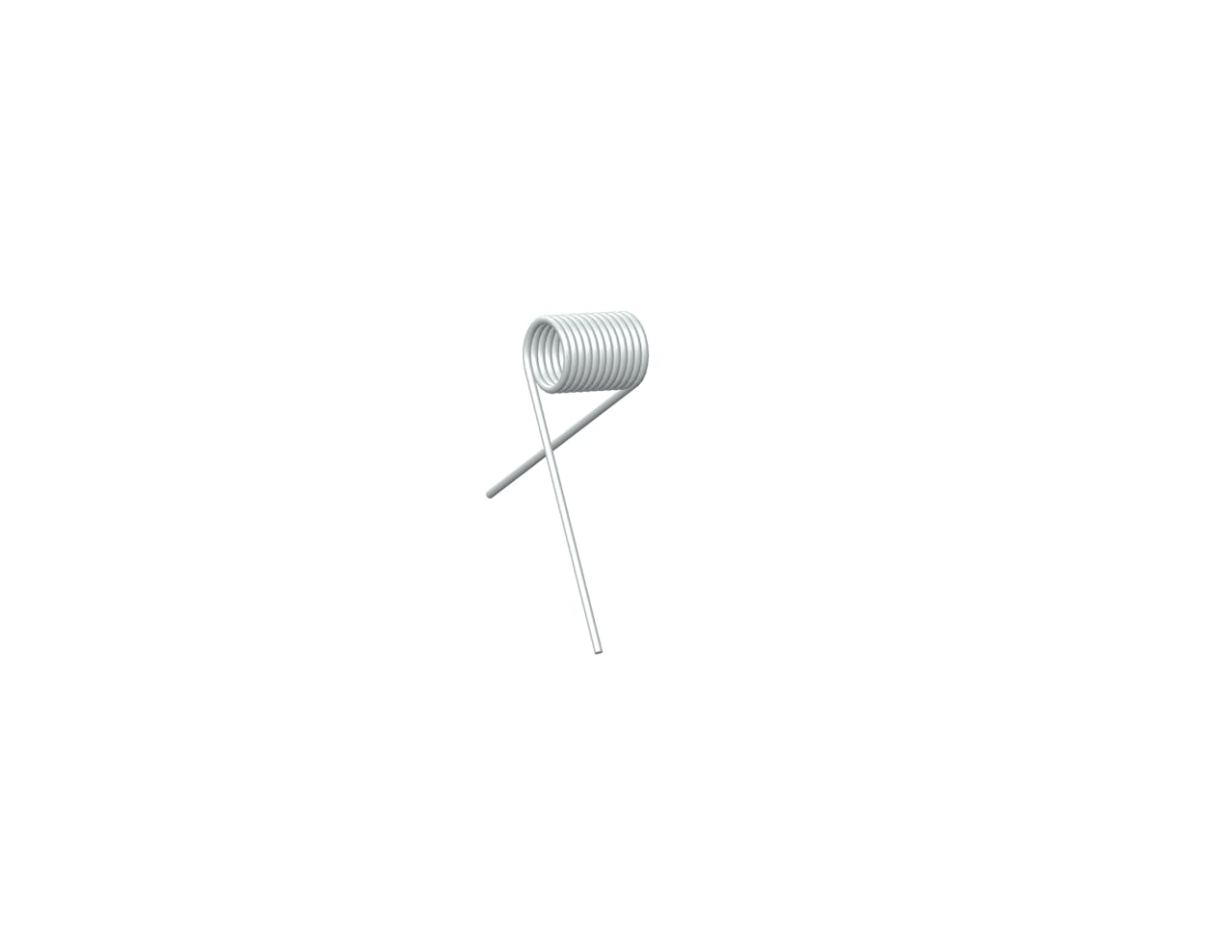

TO-5133RSCS - 270 Degree, 0.0121 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 11.75 total coils and 2 Inch legs. This spring features an O.D. of 0.514 Inch, an I.D. of 0.406 Inch, and a spring rate of 0.0121 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 270 deg
Body Length 0.76 in
Brand Century Spring
Display Name TO-5133RS
Finish None
Inside Diameter 0.406 in
Leg Length 2 in
Mandrel Diameter 0.33 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 224
Max Torque (suggested) 2.7 lbs/in
Measurement Units Standard
Outside Diameter 0.514 in
Rate 0.0121 lbf-in/deg
SKU TO-5133RSCS
Total Coils 11.75
Wind Direction Right
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Angle Between Legs 270 deg
Body Length 19.3 mm
Brand Century Spring
Display Name TO-5133RS
Finish None
Inside Diameter 10.31 mm
Leg Length 50.8 mm
Mandrel Diameter 8.38 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 224
Max Torque (suggested) 0.47 N-mm
Measurement Units Standard
Outside Diameter 13.06 mm
Rate 1.37 N-mm/deg
SKU TO-5133RSCS
Total Coils 11.75
Wind Direction Right
Wire Diameter 1.37 mm
