Century Spring

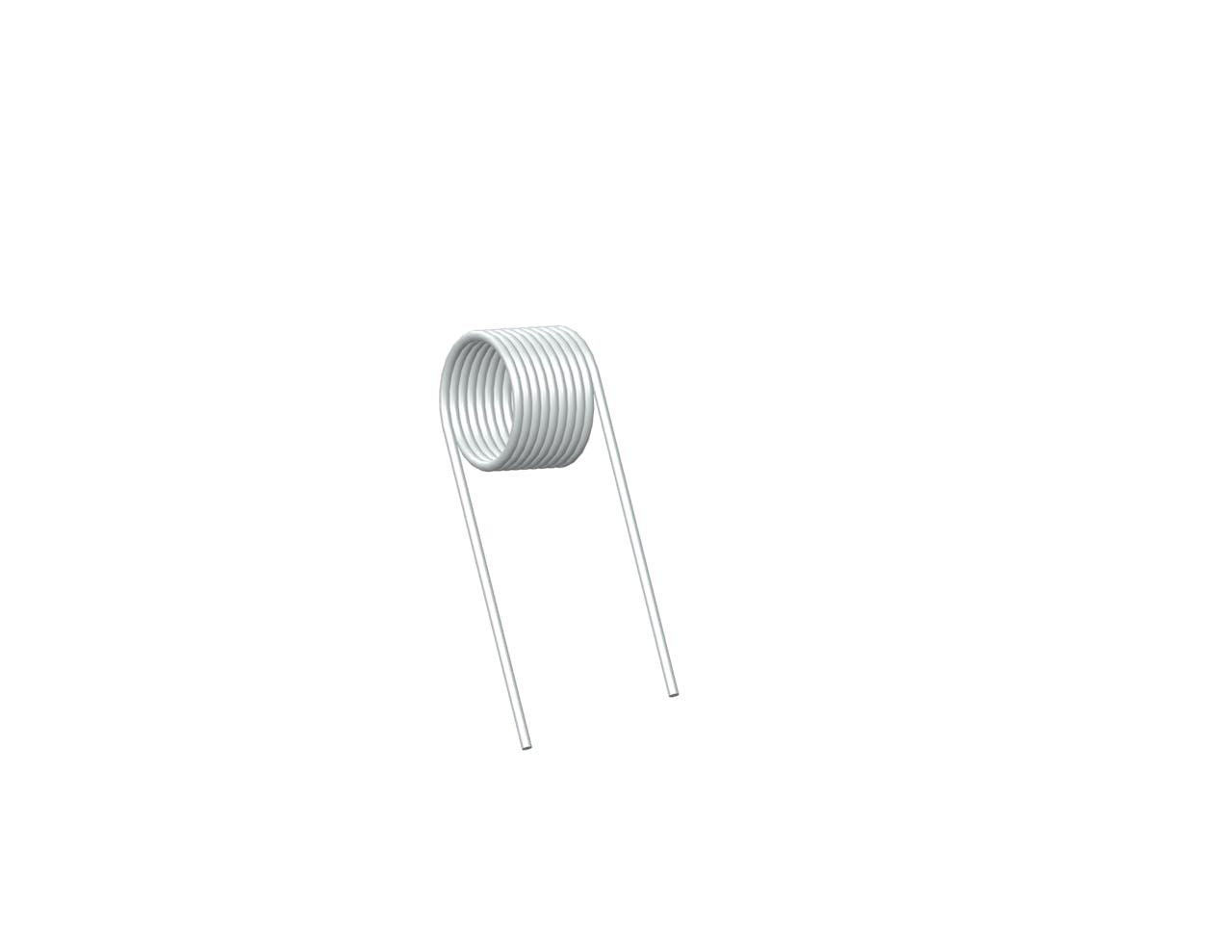

TO-5108RSCS - 0 Degree, 0.0018 Inch-Pounds per Degree Rate 302/304 Stainless Steel Torsion Spring

Inventory Status
Estimated Lead Time

Torsion spring in 302/304 Stainless Steel with 9.5 total coils and 1 Inch legs. This spring features an O.D. of 0.41 Inch, an I.D. of 0.35 Inch, and a spring rate of 0.0018 Inch-Pounds per Degree.

Download CAD
Unit System
Specs (in standard)
Label Value
Angle Between Legs 0 deg
Body Length 0.35 in
Brand Century Spring
Display Name TO-5108RS
Finish None
Inside Diameter 0.35 in
Leg Length 1 in
Mandrel Diameter 0.27 in
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 307
Max Torque (suggested) 0.54 lbs/in
Measurement Units Standard
Outside Diameter 0.41 in
Rate 0.0018 lbf-in/deg
SKU TO-5108RSCS
Total Coils 9.5
Wind Direction Right
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Angle Between Legs 0 deg
Body Length 8.89 mm
Brand Century Spring
Display Name TO-5108RS
Finish None
Inside Diameter 8.89 mm
Leg Length 25.4 mm
Mandrel Diameter 6.86 mm
Material 302/304 Stainless Steel
Max Deflection (deg) (suggested) 307
Max Torque (suggested) 0.09 N-mm
Measurement Units Standard
Outside Diameter 10.41 mm
Rate 0.2 N-mm/deg
SKU TO-5108RSCS
Total Coils 9.5
Wind Direction Right
Wire Diameter 0.76 mm
