Century Spring

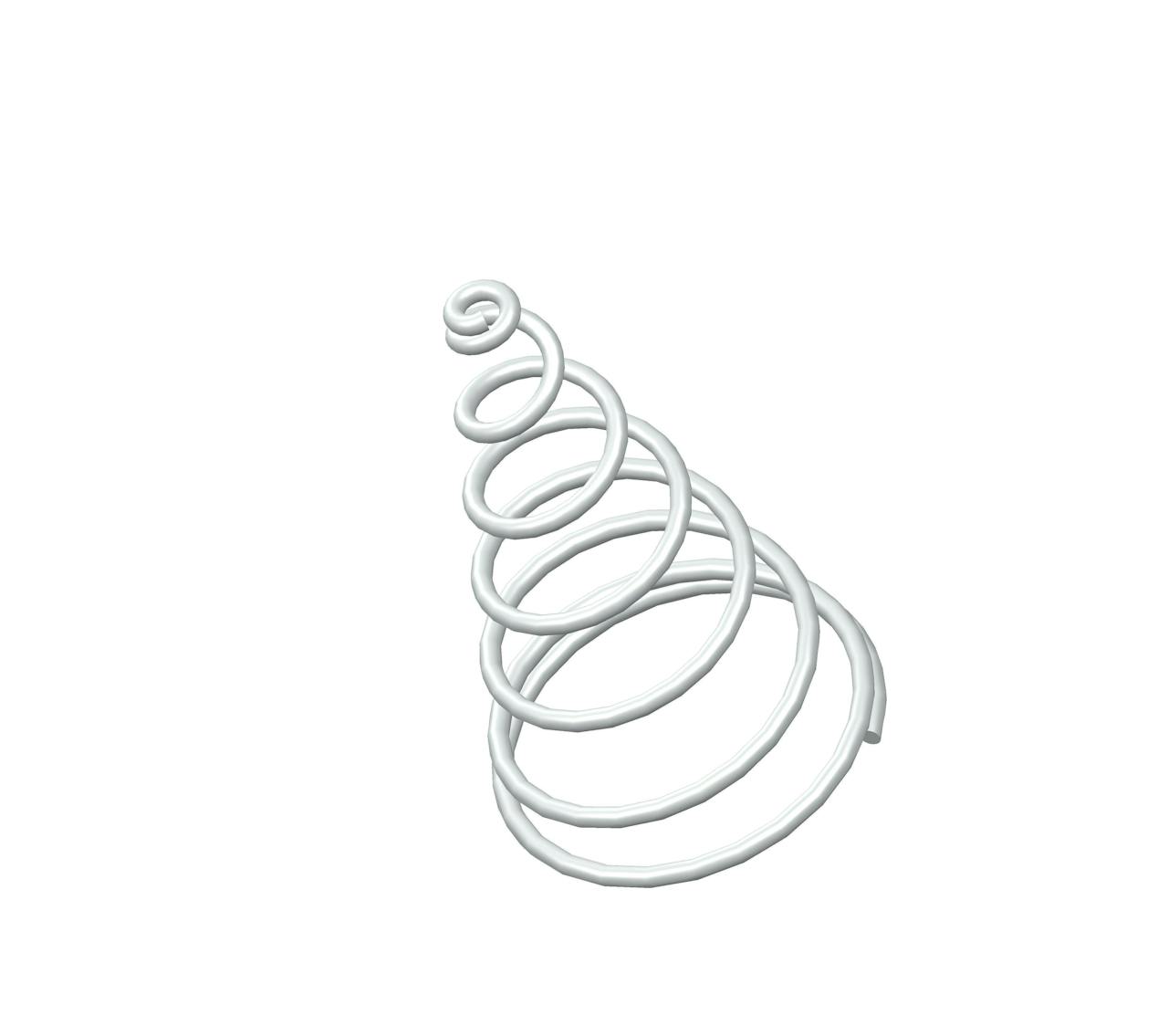

TA-7044SCS - 0.281 Inch-0.72 Inch O.D., 0.038 Inch Wire 302/304 Stainless Steel Constant Force Tapered Spring

Inventory Status
Estimated Lead Time

Constant force tapered compression spring in 302/304 Stainless Steel with 1.25 Inch approximate free length. The OD of this spring tapers from 0.281 Inch to 0.72 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name TA-7044S
Ends Closed
Finish None
Free Length 1.25 in
Large Outside Diameter 0.72 in
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 4.78 lbs/in
SKU TA-7044SCS
Small Outside Diameter 0.281 in
Wire Diameter 0.038 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name TA-7044S
Ends Closed
Finish None
Free Length 31.75 mm
Large Outside Diameter 18.29 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 0.84 N/mm
SKU TA-7044SCS
Small Outside Diameter 7.14 mm
Wire Diameter 0.97 mm
