Century Spring

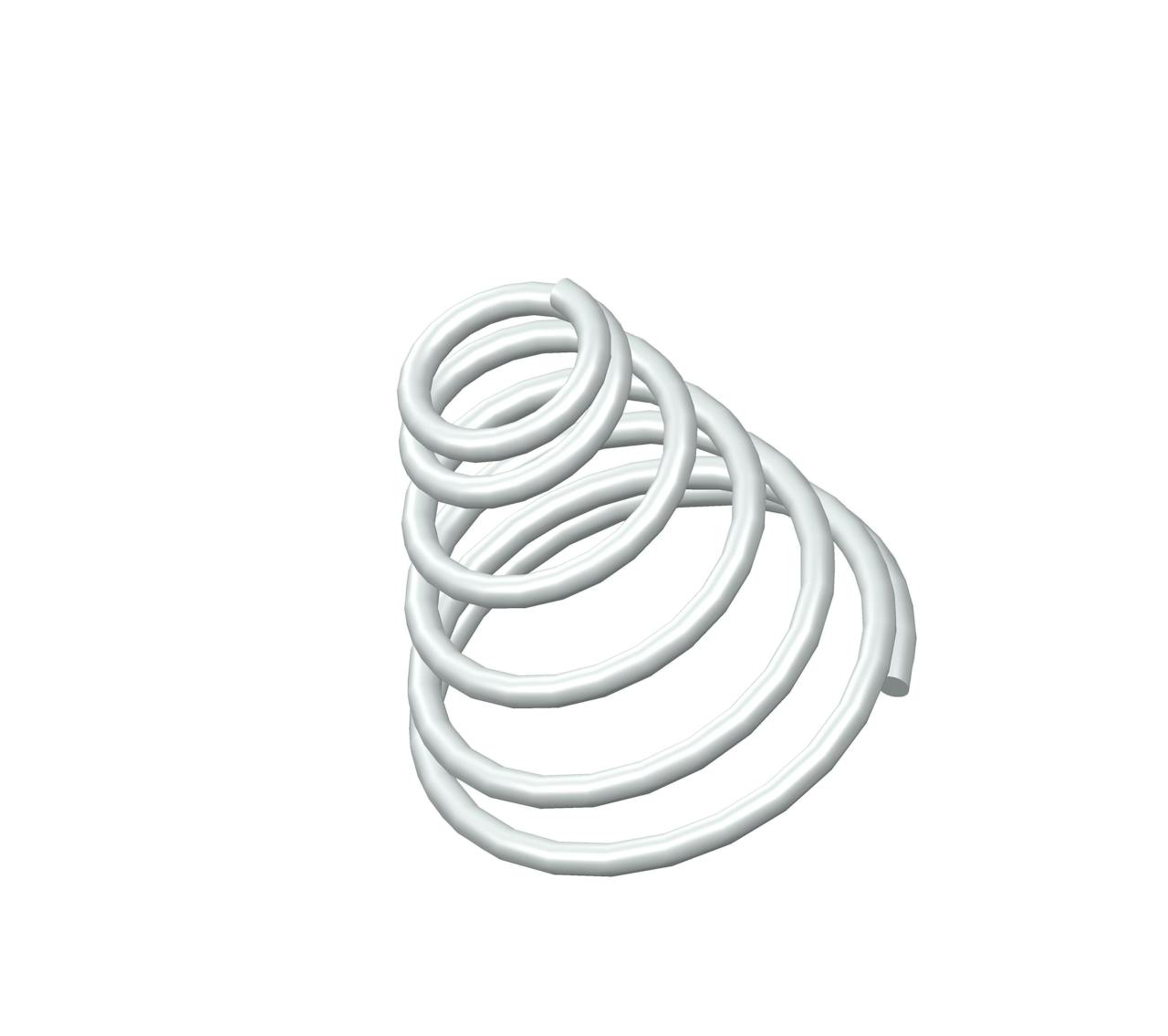

TA-7032SCS - 0.25 Inch-0.6 Inch O.D., 0.038 Inch Wire 302/304 Stainless Steel Constant Force Tapered Spring

Inventory Status
Estimated Lead Time

Constant force tapered compression spring in 302/304 Stainless Steel with 0.63 Inch approximate free length. The OD of this spring tapers from 0.25 Inch to 0.6 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name TA-7032S
Ends Closed
Finish None
Free Length 0.63 in
Large Outside Diameter 0.6 in
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 11.42 lbs/in
SKU TA-7032SCS
Small Outside Diameter 0.25 in
Wire Diameter 0.038 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name TA-7032S
Ends Closed
Finish None
Free Length 16 mm
Large Outside Diameter 15.24 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 2 N/mm
SKU TA-7032SCS
Small Outside Diameter 6.35 mm
Wire Diameter 0.97 mm
