Century Spring

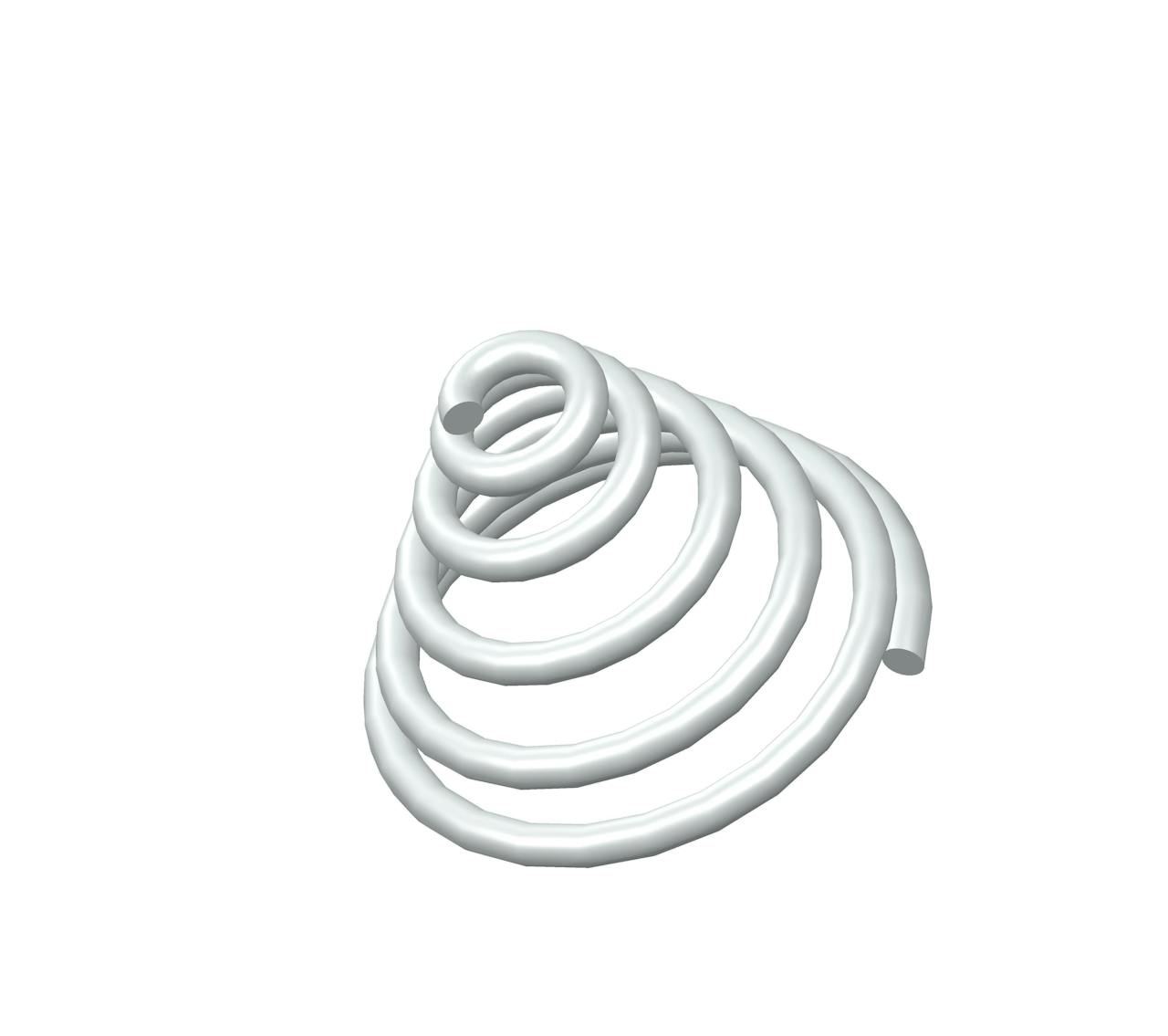

TA-7015SCS - 0.187 Inch-0.48 Inch O.D., 0.035 Inch Wire 302/304 Stainless Steel Constant Force Tapered Spring

Inventory Status
Estimated Lead Time

Constant force tapered compression spring in 302/304 Stainless Steel with 0.39 Inch approximate free length. The OD of this spring tapers from 0.187 Inch to 0.48 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name TA-7015S
Ends Closed
Finish None
Free Length 0.39 in
Large Outside Diameter 0.48 in
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 20.91 lbs/in
SKU TA-7015SCS
Small Outside Diameter 0.187 in
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name TA-7015S
Ends Closed
Finish None
Free Length 9.91 mm
Large Outside Diameter 12.19 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Rate 3.66 N/mm
SKU TA-7015SCS
Small Outside Diameter 4.75 mm
Wire Diameter 0.89 mm
