TA-2524CS - 2.92 Inch Height Spring Steel Tapered Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

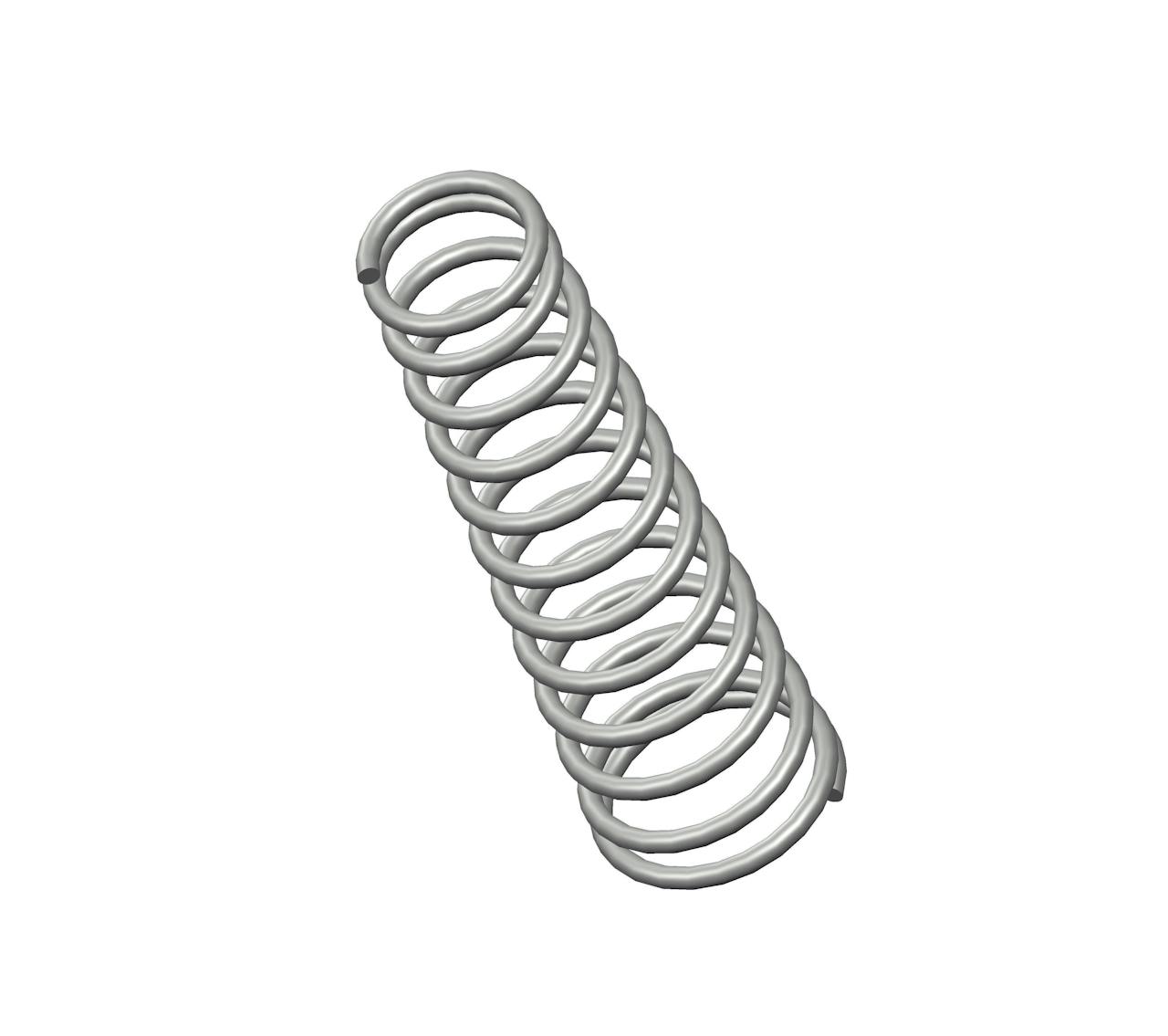

Tapered compression spring in Spring Steel with 12.3 total coils and Closed & Ground ends. The OD of this spring tapers from 0.637 Inch to 0.859 Inch. The spring has an I.D. of 0.485 Inch, and an average spring rate of 15.4 Inch Pounds.
| Label | Value |
|---|---|
| Average Rate | 15.4 lbs/in |
| Brand | Century Spring |
| Display Name | TA-2524 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 2.92 in |
| Inside Diameter | 0.485 in |
| Large Outside Diameter | 0.859 in |
| Material | Spring Steel |
| Measurement Units | Standard |
| Outside Diameter | 0.637 in |
| SKU | TA-2524CS |
| Small Outside Diameter | 0.637 in |
| Solid Height | 0.93 in |
| Total Coils | 12.3 |
| Wind Direction | Left |
| Wire Diameter | 0.076 in |
| Label | Value |
|---|---|
| Average Rate | 2.7 N/mm |
| Brand | Century Spring |
| Display Name | TA-2524 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 74.17 mm |
| Inside Diameter | 12.32 mm |
| Large Outside Diameter | 21.82 mm |
| Material | Spring Steel |
| Measurement Units | Standard |
| Outside Diameter | 16.18 mm |
| SKU | TA-2524CS |
| Small Outside Diameter | 16.18 mm |
| Solid Height | 23.62 mm |
| Total Coils | 12.3 |
| Wind Direction | Left |
| Wire Diameter | 1.93 mm |
