Century Spring

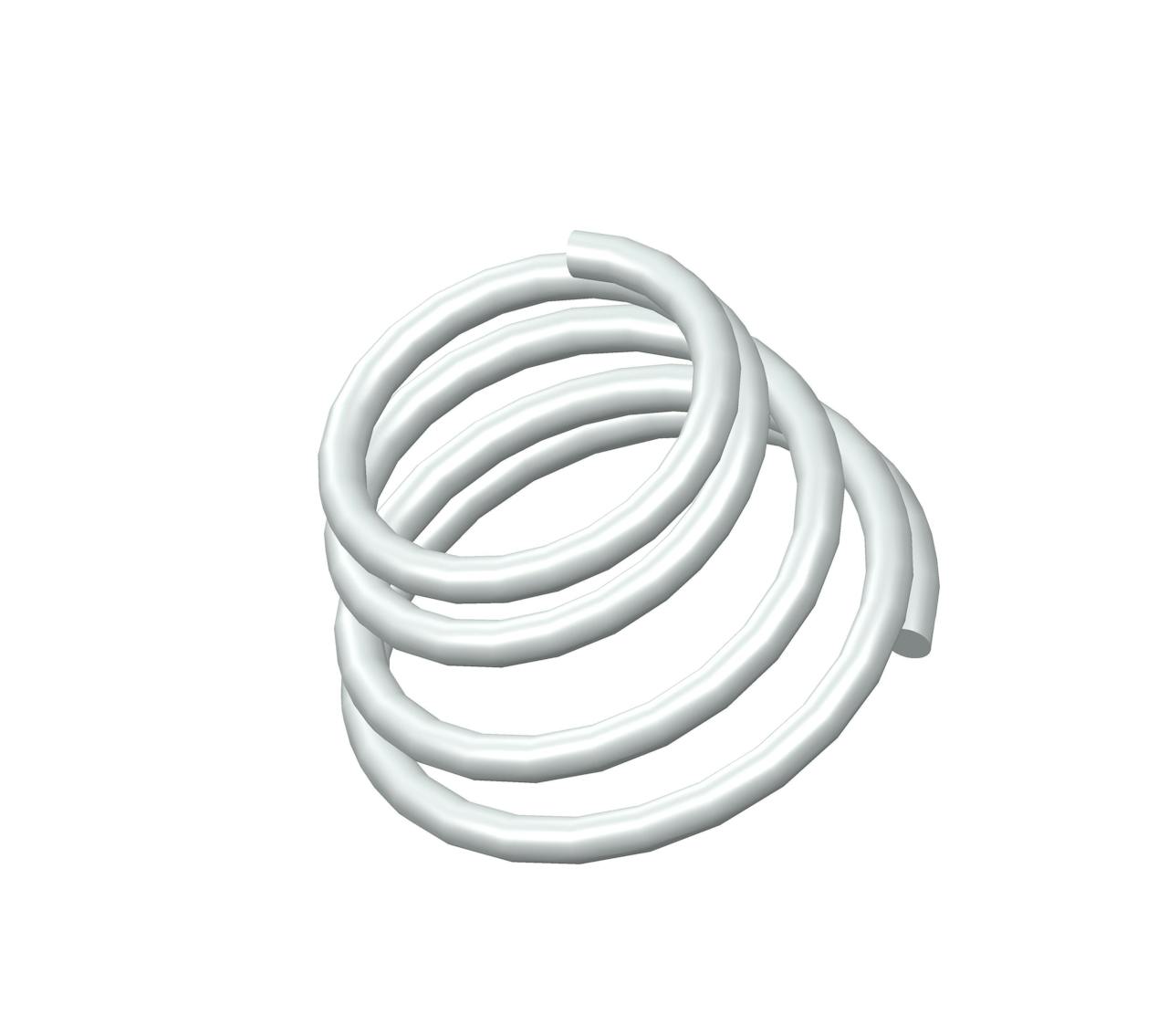

TA-2331CS - 1 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 4 total coils and Closed & Ground ends. The OD of this spring tapers from 1.031 Inch to 1.468 Inch. The spring has an I.D. of 0.807 Inch, and an average spring rate of 66.8 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 66.8 lbs/in
Brand Century Spring
Display Name TA-2331
Ends Closed & Ground
Finish None
Free Length 1 in
Inside Diameter 0.807 in
Large Outside Diameter 1.468 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 1.031 in
SKU TA-2331CS
Small Outside Diameter 1.031 in
Solid Height 0.28 in
Total Coils 4
Wind Direction Left
Wire Diameter 0.112 in
Specs (in metric)
Label Value
Average Rate 11.7 N/mm
Brand Century Spring
Display Name TA-2331
Ends Closed & Ground
Finish None
Free Length 25.4 mm
Inside Diameter 20.5 mm
Large Outside Diameter 37.29 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 26.19 mm
SKU TA-2331CS
Small Outside Diameter 26.19 mm
Solid Height 7.11 mm
Total Coils 4
Wind Direction Left
Wire Diameter 2.84 mm
