Century Spring

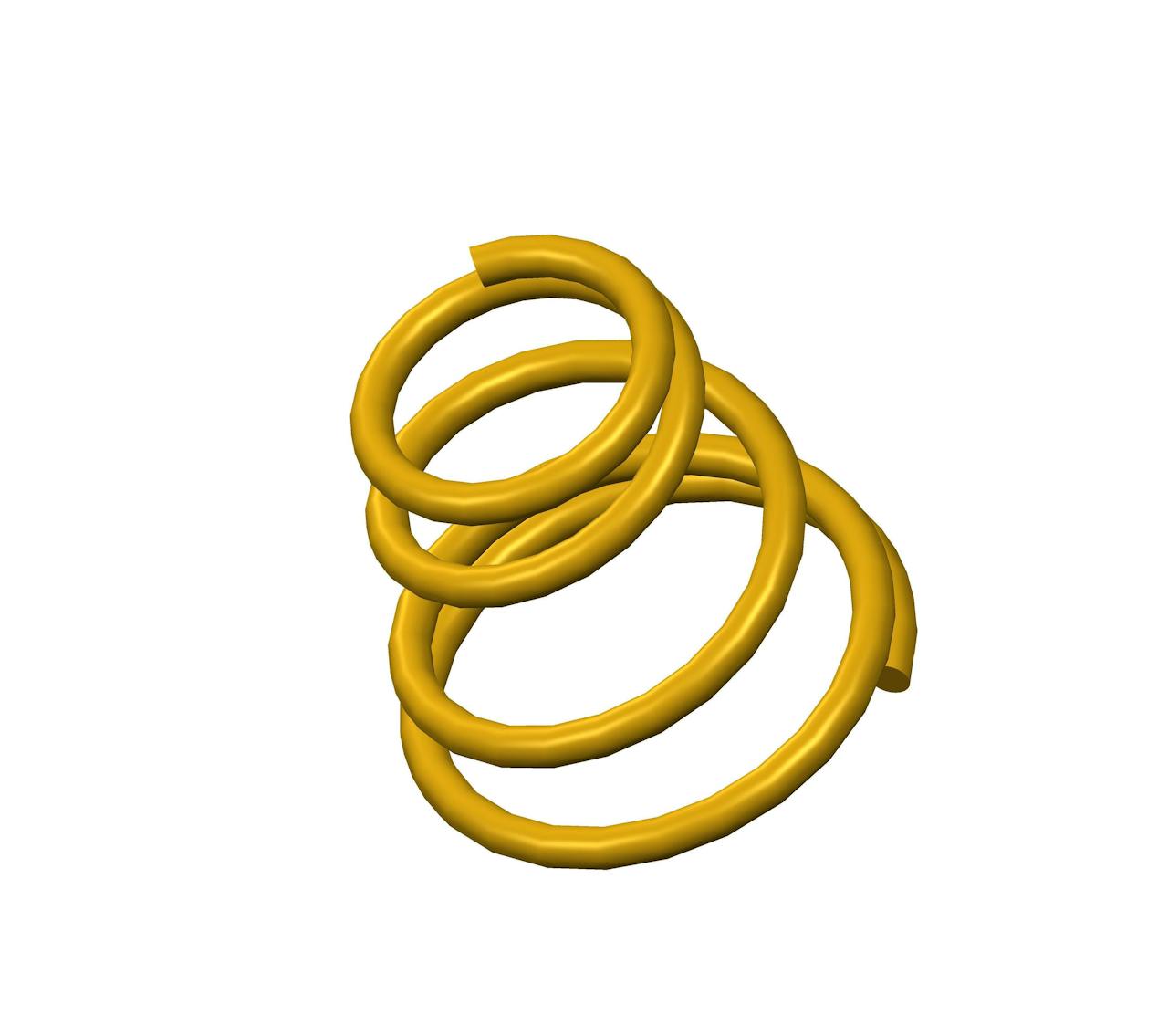

TA-2281CS - 0.5 Inch Height Phosphor Bronze Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Phosphor Bronze with 4 total coils and Closed ends. The OD of this spring tapers from 0.312 Inch to 0.5 Inch. The spring has an I.D. of 0.232 Inch, and an average spring rate of 20.4 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 20.4 lbs/in
Brand Century Spring
Display Name TA-2281
Ends Closed
Finish None
Free Length 0.5 in
Inside Diameter 0.232 in
Large Outside Diameter 0.5 in
Material Phosphor Bronze
Measurement Units Standard
Outside Diameter 0.312 in
SKU TA-2281CS
Small Outside Diameter 0.312 in
Solid Height 0.08 in
Total Coils 4
Wind Direction Left
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Average Rate 3.57 N/mm
Brand Century Spring
Display Name TA-2281
Ends Closed
Finish None
Free Length 12.7 mm
Inside Diameter 5.89 mm
Large Outside Diameter 12.7 mm
Material Phosphor Bronze
Measurement Units Standard
Outside Diameter 7.92 mm
SKU TA-2281CS
Small Outside Diameter 7.92 mm
Solid Height 2.03 mm
Total Coils 4
Wind Direction Left
Wire Diameter 1.02 mm
