Century Spring

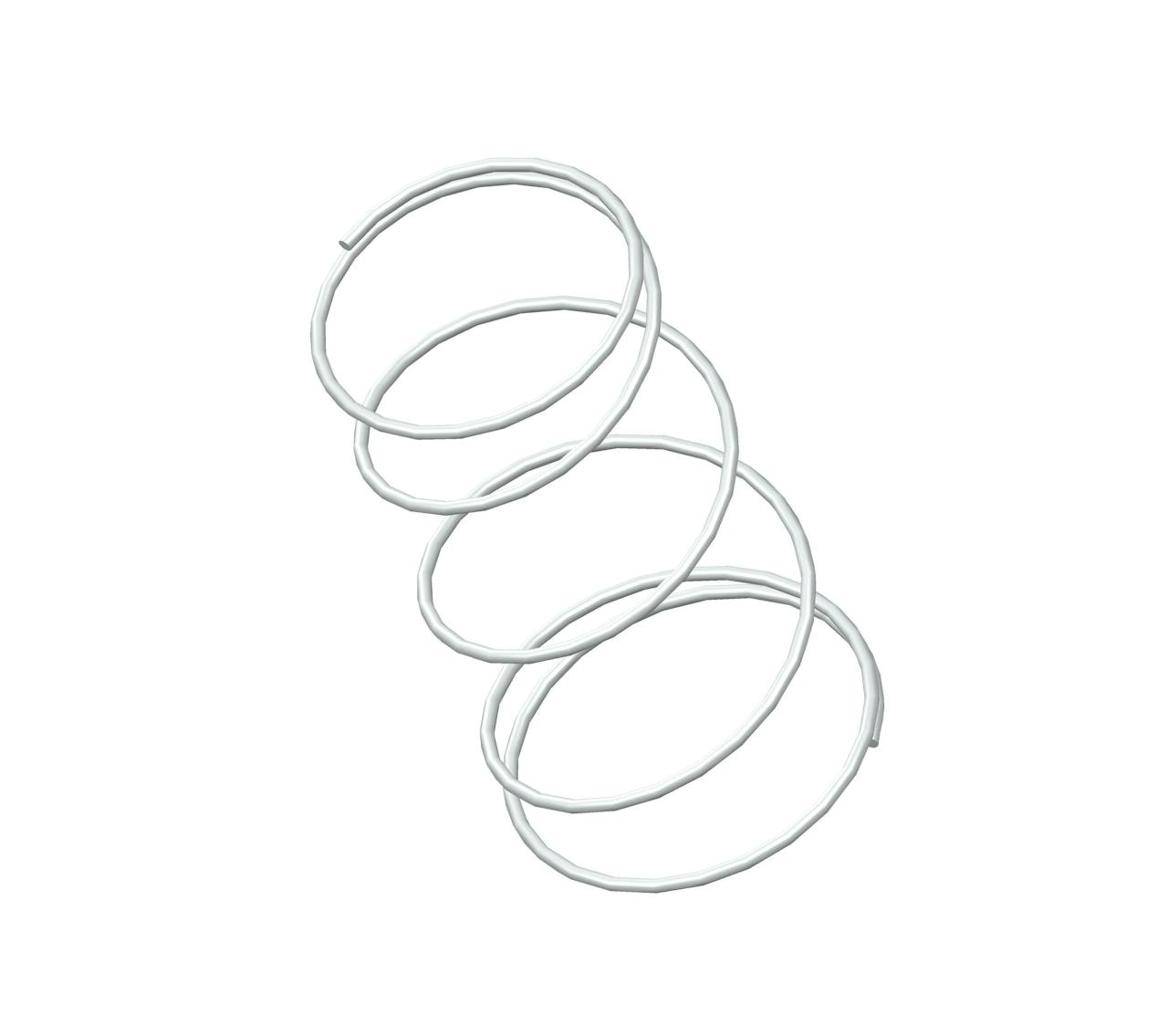

TA-2235CS - 1.5 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 5 total coils and Closed ends. The OD of this spring tapers from 0.718 Inch to 0.812 Inch. The spring has an I.D. of 0.658 Inch, and an average spring rate of 0.9 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 0.9 lbs/in
Brand Century Spring
Display Name TA-2235
Ends Closed
Finish None
Free Length 1.5 in
Inside Diameter 0.658 in
Large Outside Diameter 0.812 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.718 in
SKU TA-2235CS
Small Outside Diameter 0.718 in
Solid Height 0.17 in
Total Coils 5
Wind Direction Left
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Average Rate 0.16 N/mm
Brand Century Spring
Display Name TA-2235
Ends Closed
Finish None
Free Length 38.1 mm
Inside Diameter 16.71 mm
Large Outside Diameter 20.62 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 18.24 mm
SKU TA-2235CS
Small Outside Diameter 18.24 mm
Solid Height 4.32 mm
Total Coils 5
Wind Direction Left
Wire Diameter 0.76 mm
