Century Spring

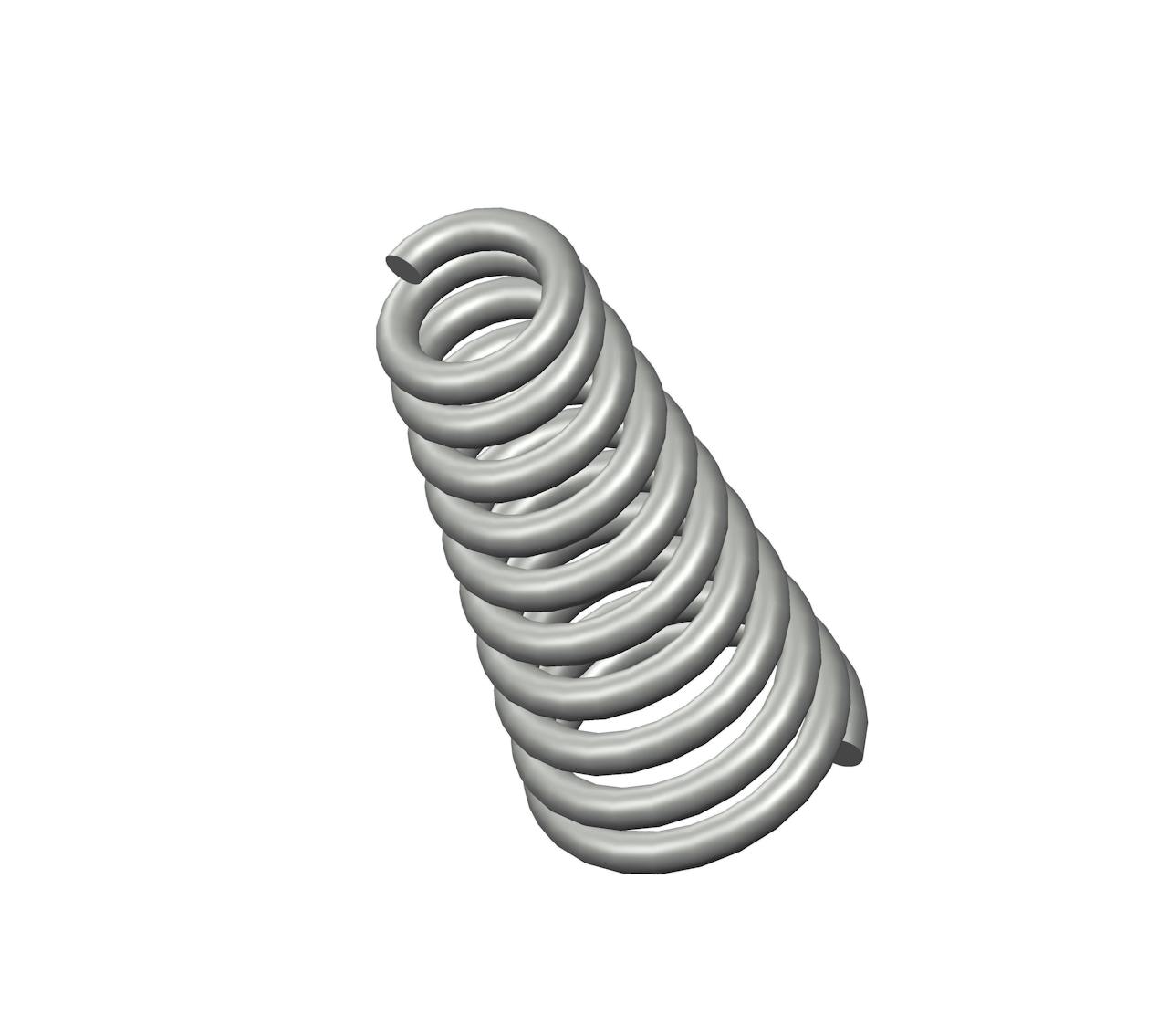

TA-2204CS - 0.72 Inch Height Spring Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Spring Steel with 10.3 total coils and Closed ends. The OD of this spring tapers from 0.203 Inch to 0.328 Inch. The spring has an I.D. of 0.123 Inch, and an average spring rate of 38.9 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 38.9 lbs/in
Brand Century Spring
Display Name TA-2204
Ends Closed
Finish Zinc
Free Length 0.72 in
Inside Diameter 0.123 in
Large Outside Diameter 0.328 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.203 in
SKU TA-2204CS
Small Outside Diameter 0.203 in
Solid Height 0.45 in
Total Coils 10.3
Wind Direction Left
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Average Rate 6.81 N/mm
Brand Century Spring
Display Name TA-2204
Ends Closed
Finish Zinc
Free Length 18.29 mm
Inside Diameter 3.12 mm
Large Outside Diameter 8.33 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 5.16 mm
SKU TA-2204CS
Small Outside Diameter 5.16 mm
Solid Height 11.43 mm
Total Coils 10.3
Wind Direction Left
Wire Diameter 1.02 mm
