Century Spring

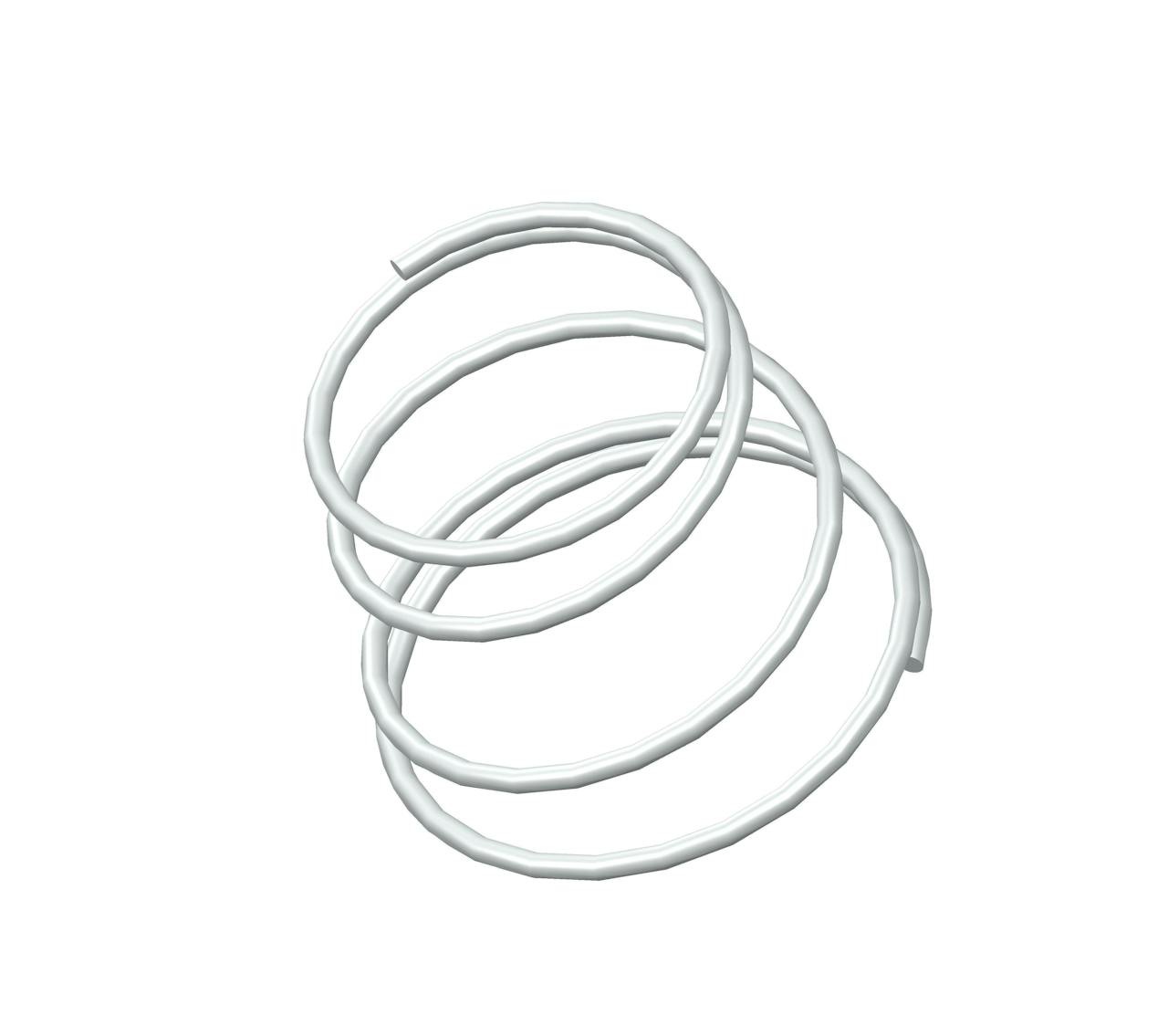

TA-2171CS - 0.34 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 4 total coils and Closed ends. The OD of this spring tapers from 0.312 Inch to 0.406 Inch. The spring has an I.D. of 0.276 Inch, and an average spring rate of 1.7 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 1.7 lbs/in
Brand Century Spring
Display Name TA-2171
Ends Closed
Finish None
Free Length 0.34 in
Inside Diameter 0.276 in
Large Outside Diameter 0.406 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.312 in
SKU TA-2171CS
Small Outside Diameter 0.312 in
Solid Height 0.04 in
Total Coils 4
Wind Direction Left
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Average Rate 0.3 N/mm
Brand Century Spring
Display Name TA-2171
Ends Closed
Finish None
Free Length 8.64 mm
Inside Diameter 7.01 mm
Large Outside Diameter 10.31 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 7.92 mm
SKU TA-2171CS
Small Outside Diameter 7.92 mm
Solid Height 1.02 mm
Total Coils 4
Wind Direction Left
Wire Diameter 0.46 mm
