Century Spring

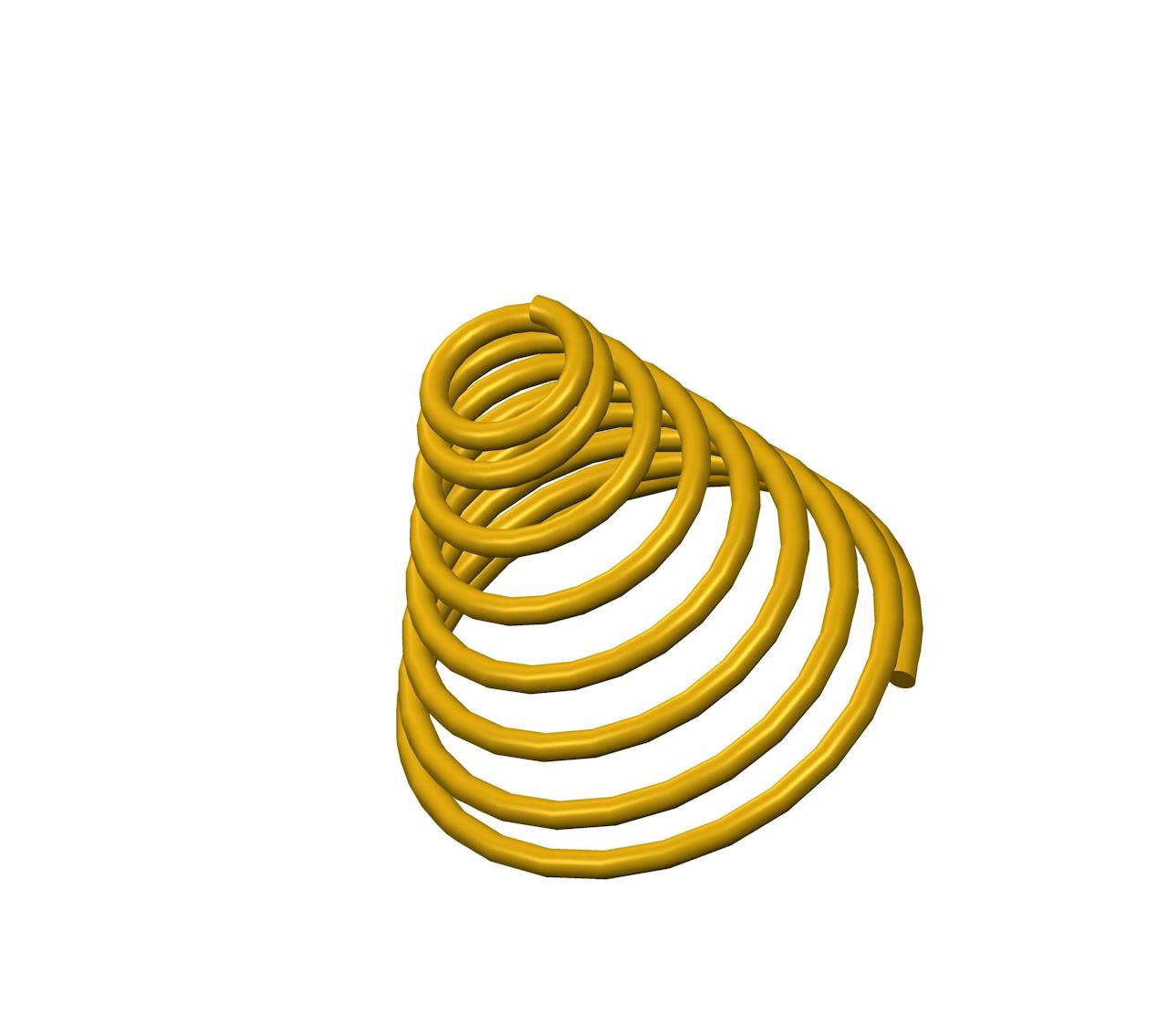

TA-2141CS - 0.75 Inch Height Phosphor Bronze Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Phosphor Bronze with 8 total coils and Closed ends. The OD of this spring tapers from 0.25 Inch to 0.781 Inch. The spring has an I.D. of 0.168 Inch, and an average spring rate of 3.4 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 3.4 lbs/in
Brand Century Spring
Display Name TA-2141
Ends Closed
Finish None
Free Length 0.75 in
Inside Diameter 0.168 in
Large Outside Diameter 0.781 in
Material Phosphor Bronze
Measurement Units Standard
Outside Diameter 0.25 in
SKU TA-2141CS
Small Outside Diameter 0.25 in
Solid Height 0.09 in
Total Coils 8
Wind Direction Left
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Average Rate 0.6 N/mm
Brand Century Spring
Display Name TA-2141
Ends Closed
Finish None
Free Length 19.05 mm
Inside Diameter 4.27 mm
Large Outside Diameter 19.84 mm
Material Phosphor Bronze
Measurement Units Standard
Outside Diameter 6.35 mm
SKU TA-2141CS
Small Outside Diameter 6.35 mm
Solid Height 2.29 mm
Total Coils 8
Wind Direction Left
Wire Diameter 1.04 mm
