Century Spring

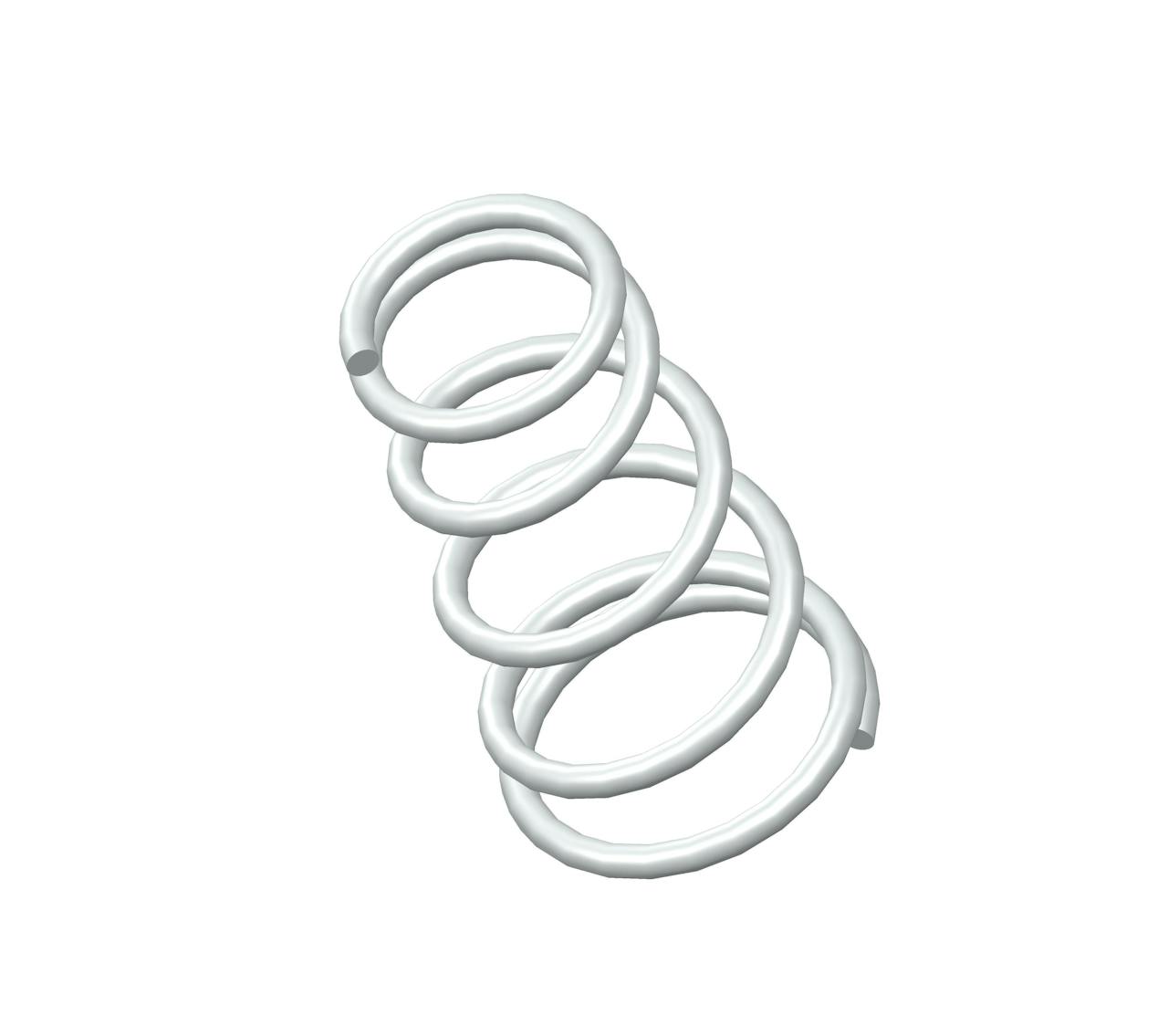

TA-2127CS - 1.13 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 5.2 total coils and Closed ends. The OD of this spring tapers from 0.453 Inch to 0.609 Inch. The spring has an I.D. of 0.345 Inch, and an average spring rate of 30.1 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 30.1 lbs/in
Brand Century Spring
Display Name TA-2127
Ends Closed
Finish None
Free Length 1.13 in
Inside Diameter 0.345 in
Large Outside Diameter 0.609 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.453 in
SKU TA-2127CS
Small Outside Diameter 0.453 in
Solid Height 0.32 in
Total Coils 5.2
Wind Direction Left
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Average Rate 5.27 N/mm
Brand Century Spring
Display Name TA-2127
Ends Closed
Finish None
Free Length 28.7 mm
Inside Diameter 8.76 mm
Large Outside Diameter 15.47 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 11.51 mm
SKU TA-2127CS
Small Outside Diameter 11.51 mm
Solid Height 8.13 mm
Total Coils 5.2
Wind Direction Left
Wire Diameter 1.37 mm
