Century Spring

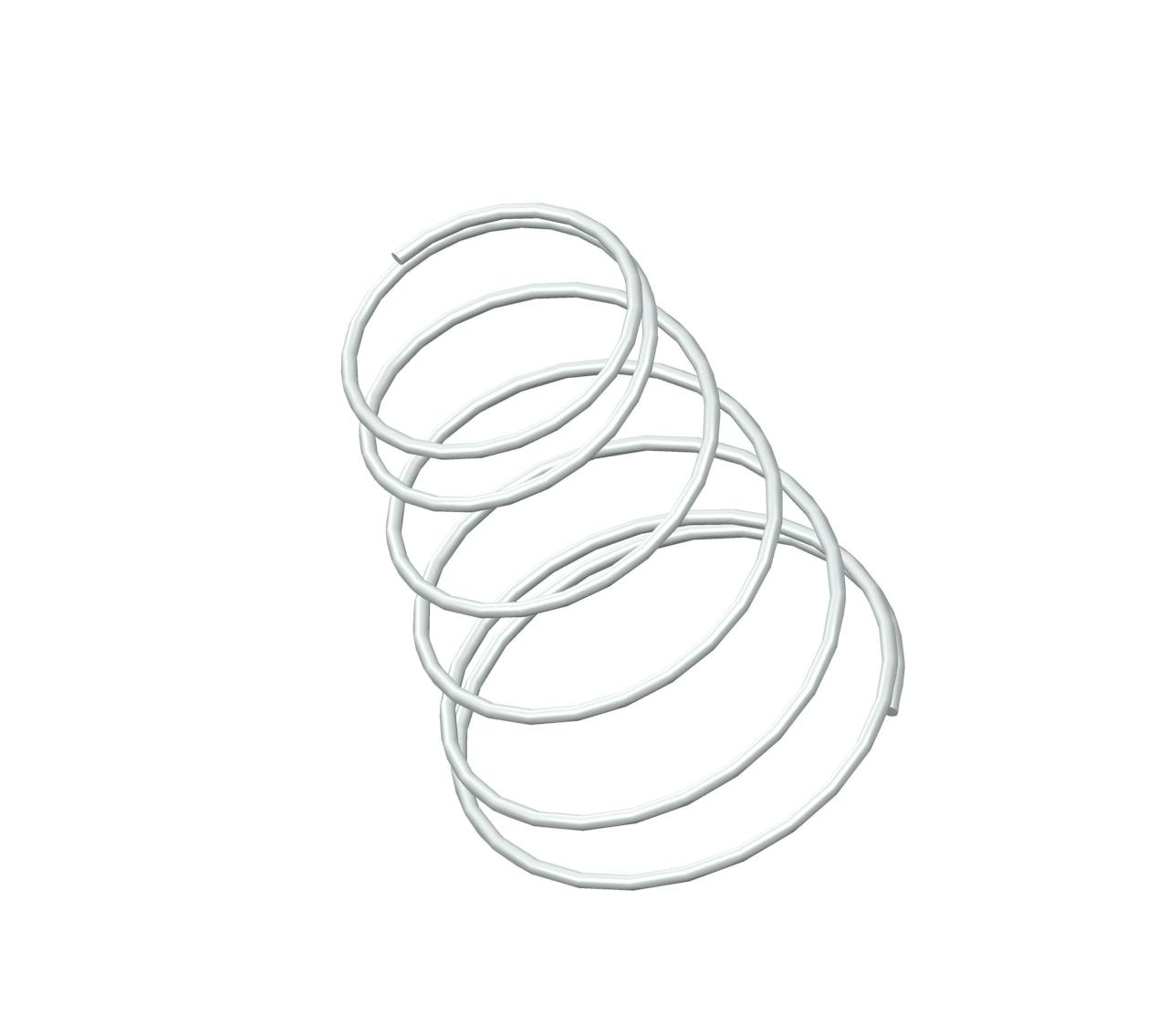

TA-2121CS - 2 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 6 total coils and Closed ends. The OD of this spring tapers from 1 Inch to 1.5 Inch. The spring has an I.D. of 0.9 Inch, and an average spring rate of 1.1 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 1.1 lbs/in
Brand Century Spring
Display Name TA-2121
Ends Closed
Finish None
Free Length 2 in
Inside Diameter 0.9 in
Large Outside Diameter 1.5 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 1 in
SKU TA-2121CS
Small Outside Diameter 1 in
Solid Height 0.15 in
Total Coils 6
Wind Direction Left
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Average Rate 0.19 N/mm
Brand Century Spring
Display Name TA-2121
Ends Closed
Finish None
Free Length 50.8 mm
Inside Diameter 22.86 mm
Large Outside Diameter 38.1 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 25.4 mm
SKU TA-2121CS
Small Outside Diameter 25.4 mm
Solid Height 3.81 mm
Total Coils 6
Wind Direction Left
Wire Diameter 1.27 mm
