Century Spring

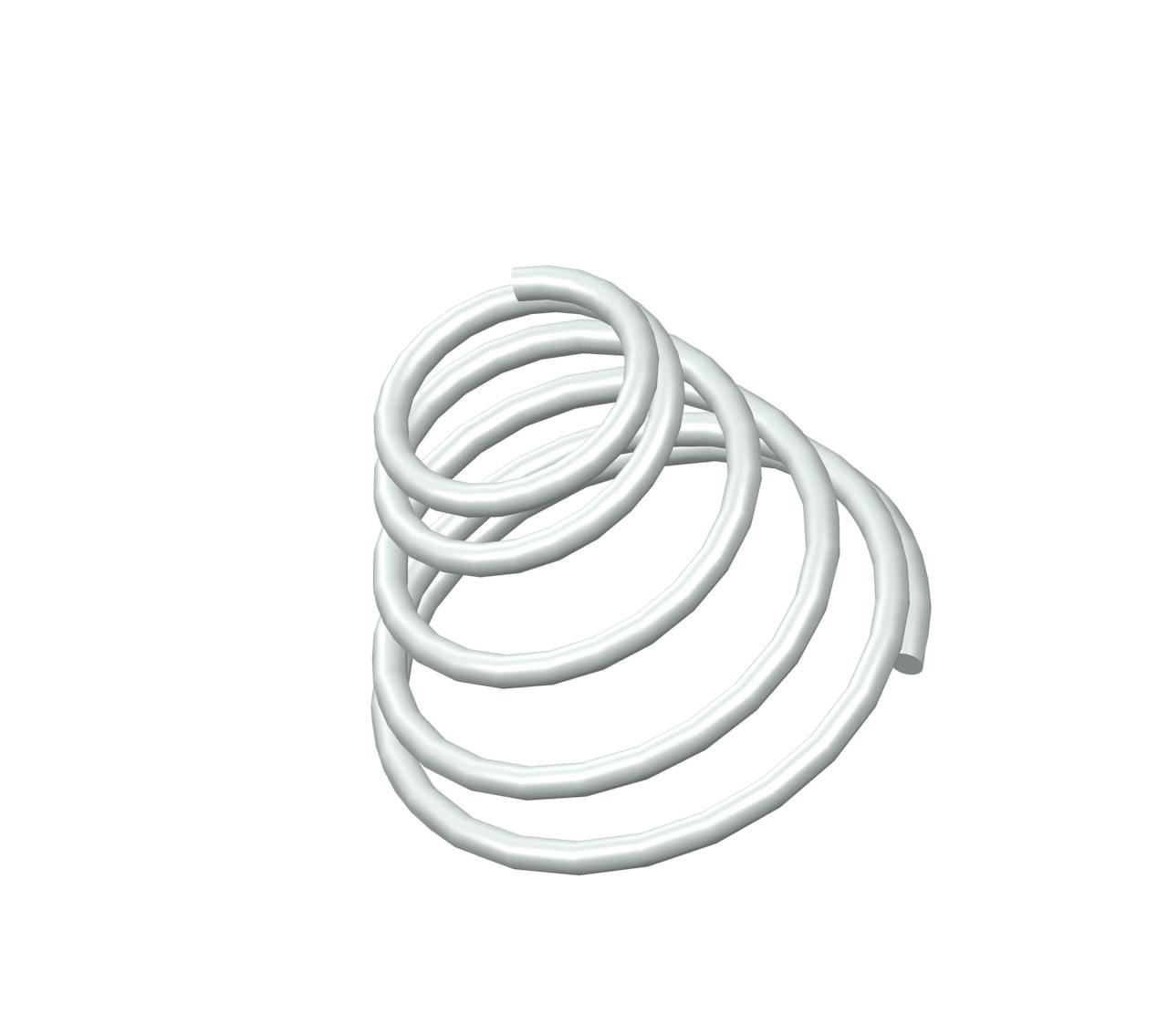

TA-2100CS - 0.31 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 5 total coils and Closed ends. The OD of this spring tapers from 0.187 Inch to 0.375 Inch. The spring has an I.D. of 0.143 Inch, and an average spring rate of 5.6 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 5.6 lbs/in
Brand Century Spring
Display Name TA-2100
Ends Closed
Finish None
Free Length 0.31 in
Inside Diameter 0.143 in
Large Outside Diameter 0.375 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.187 in
SKU TA-2100CS
Small Outside Diameter 0.187 in
Solid Height 0.05 in
Total Coils 5
Wind Direction Left
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Average Rate 0.98 N/mm
Brand Century Spring
Display Name TA-2100
Ends Closed
Finish None
Free Length 7.87 mm
Inside Diameter 3.63 mm
Large Outside Diameter 9.53 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 4.75 mm
SKU TA-2100CS
Small Outside Diameter 4.75 mm
Solid Height 1.27 mm
Total Coils 5
Wind Direction Left
Wire Diameter 0.56 mm
