Century Spring

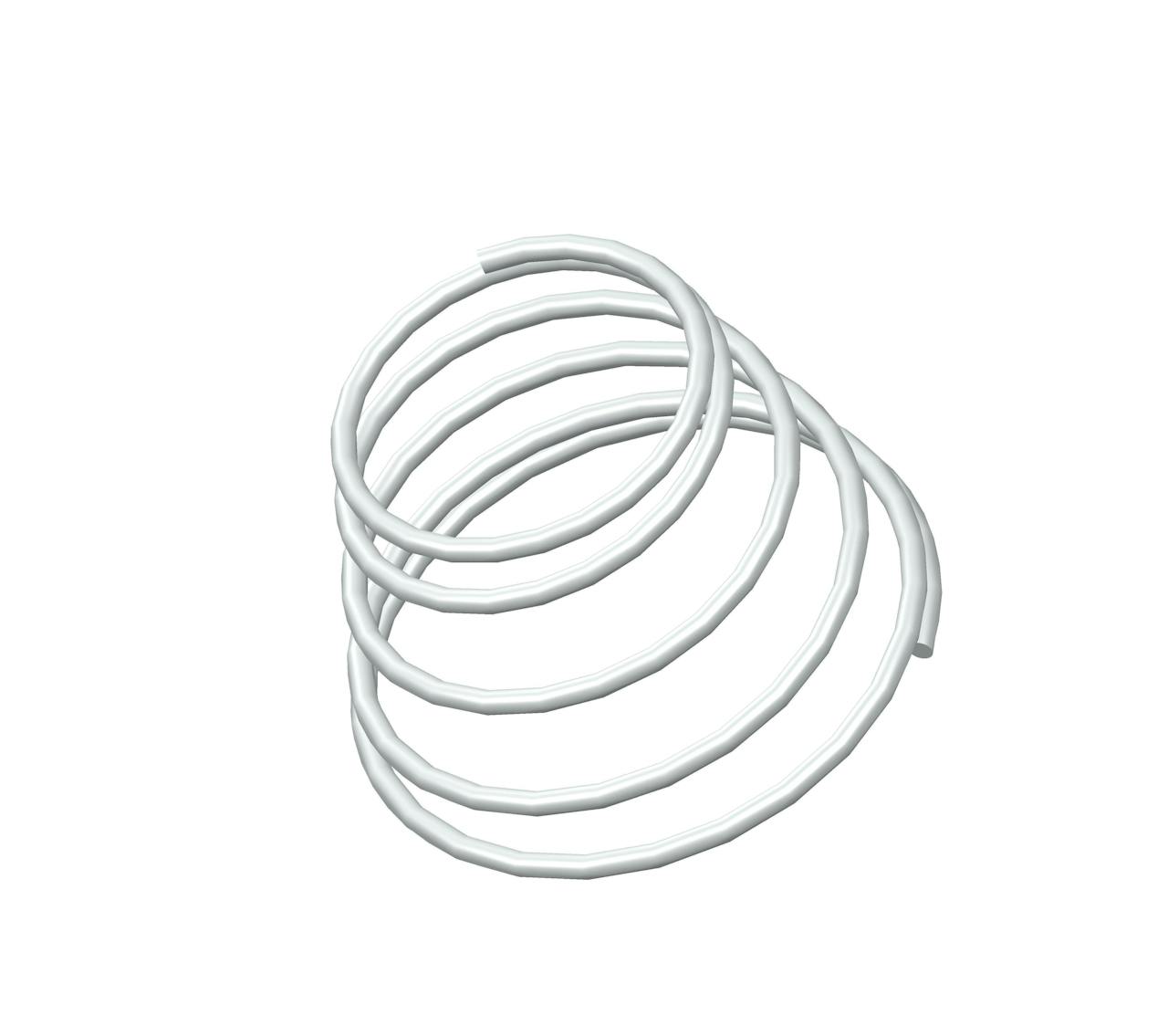

TA-2095CS - 0.81 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 5 total coils and Closed ends. The OD of this spring tapers from 0.734 Inch to 1.14 Inch. The spring has an I.D. of 0.64 Inch, and an average spring rate of 2.9 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 2.9 lbs/in
Brand Century Spring
Display Name TA-2095
Ends Closed
Finish None
Free Length 0.81 in
Inside Diameter 0.64 in
Large Outside Diameter 1.14 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.734 in
SKU TA-2095CS
Small Outside Diameter 0.734 in
Solid Height 0.07 in
Total Coils 5
Wind Direction Left
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Average Rate 0.51 N/mm
Brand Century Spring
Display Name TA-2095
Ends Closed
Finish None
Free Length 20.57 mm
Inside Diameter 16.26 mm
Large Outside Diameter 28.96 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 18.64 mm
SKU TA-2095CS
Small Outside Diameter 18.64 mm
Solid Height 1.78 mm
Total Coils 5
Wind Direction Left
Wire Diameter 1.19 mm
