Century Spring

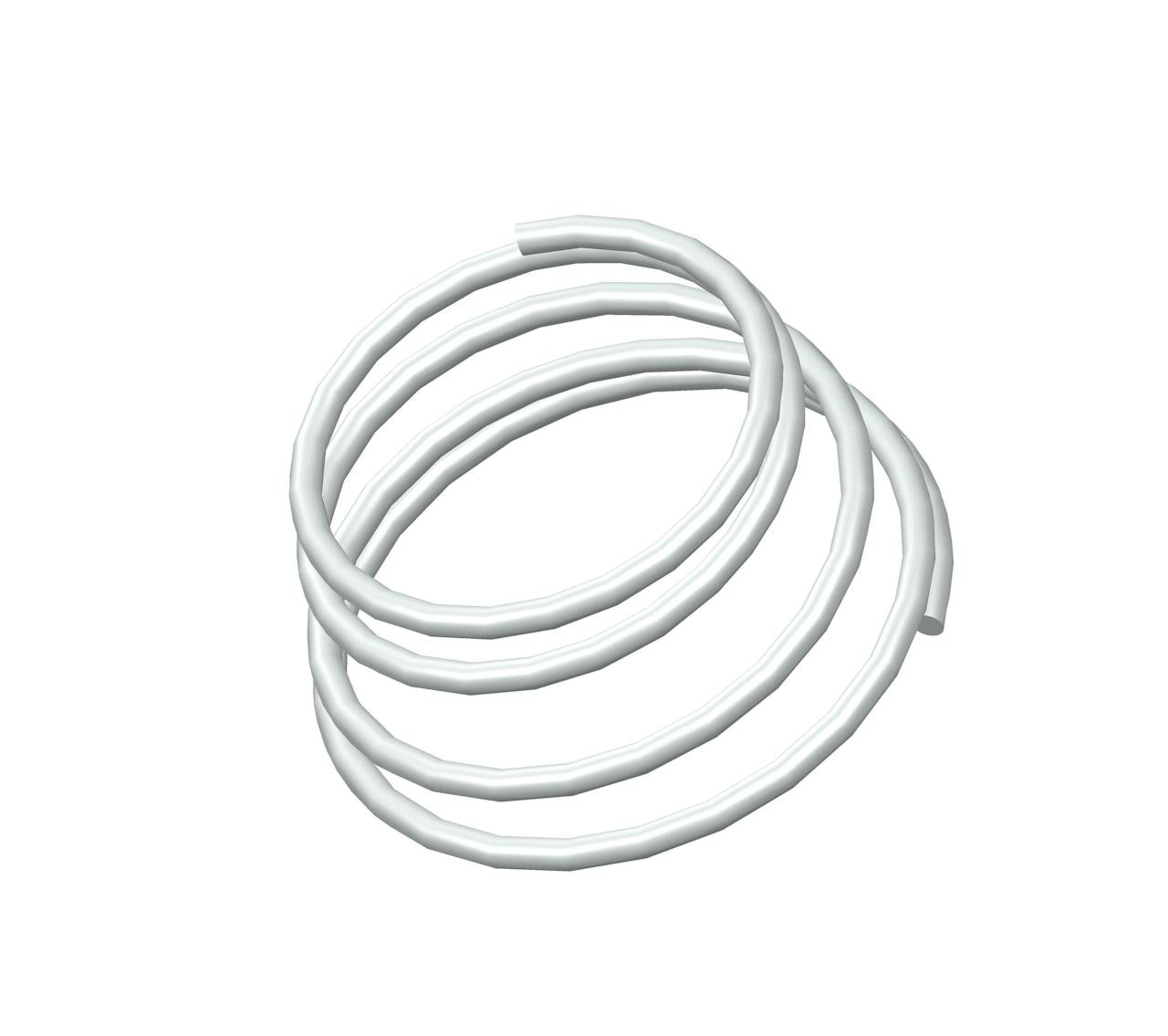

TA-2088CS - 0.22 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 4 total coils and Closed ends. The OD of this spring tapers from 0.312 Inch to 0.406 Inch. The spring has an I.D. of 0.272 Inch, and an average spring rate of 2.6 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 2.6 lbs/in
Brand Century Spring
Display Name TA-2088
Ends Closed
Finish None
Free Length 0.22 in
Inside Diameter 0.272 in
Large Outside Diameter 0.406 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.312 in
SKU TA-2088CS
Small Outside Diameter 0.312 in
Solid Height 0.04 in
Total Coils 4
Wind Direction Left
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Average Rate 0.46 N/mm
Brand Century Spring
Display Name TA-2088
Ends Closed
Finish None
Free Length 5.59 mm
Inside Diameter 6.91 mm
Large Outside Diameter 10.31 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 7.92 mm
SKU TA-2088CS
Small Outside Diameter 7.92 mm
Solid Height 1.02 mm
Total Coils 4
Wind Direction Left
Wire Diameter 0.51 mm
Bring precision and performance to your next project with the TA-2088 tapered springs. With an average rate of 2.6 lbs/in, these 302/304 stainless steel springs deliver the resilience you need in a compact 0.22鈥� free length design.

With an expertly engineered tapered profile, with 0.312" - 0.406" OD, the TA-2088 helps you overcome tight space constraints without sacrificing performance. The closed ends and left-hand wind direction provide controlled compression and resilience. With 302/304 stainless steel construction, these springs offer the durability to support your application while resisting corrosion.

For engineers and designers seeking robust springs in ultra-compact footprints, the TA-2088 tapered springs are the perfect solution. Add consistent spring force in tight quarters and improve the performance of your next device.
