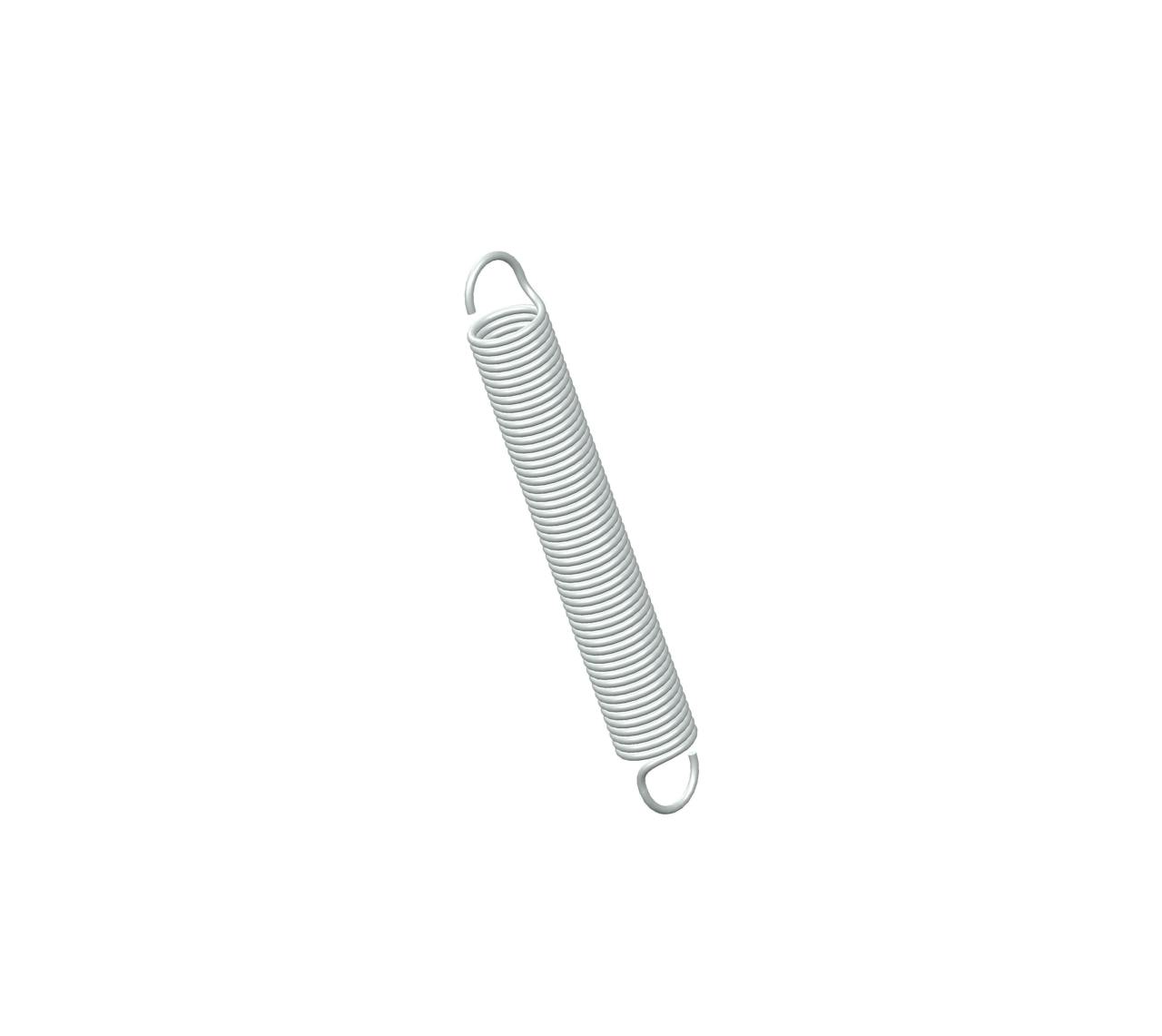

S-620CS - 2.88 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.375 Inch and an initial tension of 0.9 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-620 |
| Ends | Machine Hook |
| Finish | None |
| Initial Tension | 0.9 lb |
| Length | 2.88 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 1.6 lbs/in |
| SKU | S-620CS |
| Sugg Max Deflection | 3.2 in |
| Sugg Max Load | 6.2 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.041 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-620 |
| Ends | Machine Hook |
| Finish | None |
| Initial Tension | 0.41 kg |
| Length | 73.15 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 0.28 N/mm |
| SKU | S-620CS |
| Sugg Max Deflection | 81.28 mm |
| Sugg Max Load | 27.58 N |
| Wind Direction | Left |
| Wire Diameter | 1.04 mm |
