Century Spring

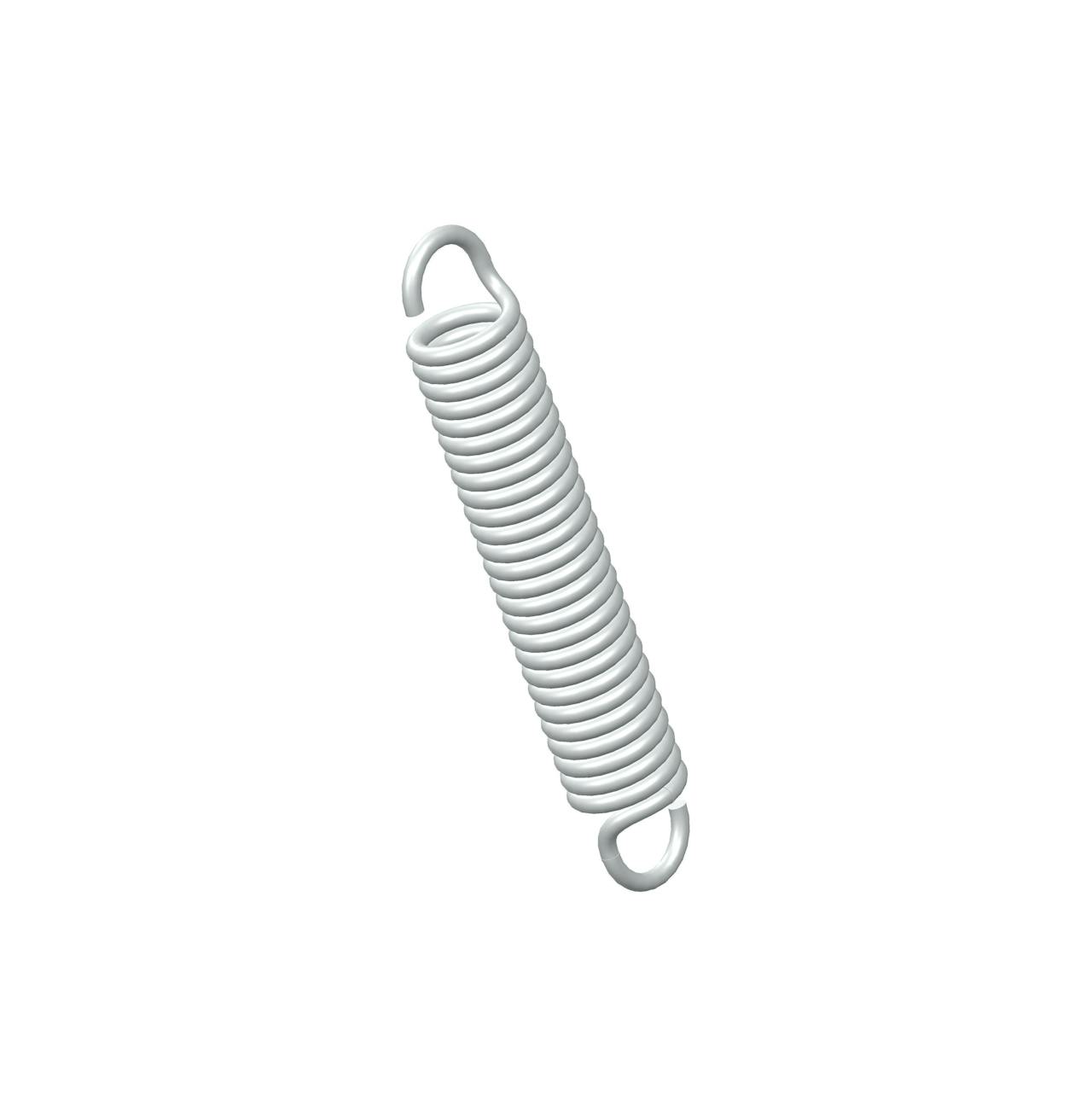

S-618CS - 1.56 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-618
Ends Machine Hook
Finish None
Initial Tension 2 lb
Length 1.56 in
Material 302/304 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 14 lbs/in
SKU S-618CS
Sugg Max Deflection 0.53 in
Sugg Max Load 9.8 lbf
Wind Direction Left
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-618
Ends Machine Hook
Finish None
Initial Tension 0.91 kg
Length 39.62 mm
Material 302/304 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 2.45 N/mm
SKU S-618CS
Sugg Max Deflection 13.46 mm
Sugg Max Load 43.59 N
Wind Direction Left
Wire Diameter 1.04 mm
